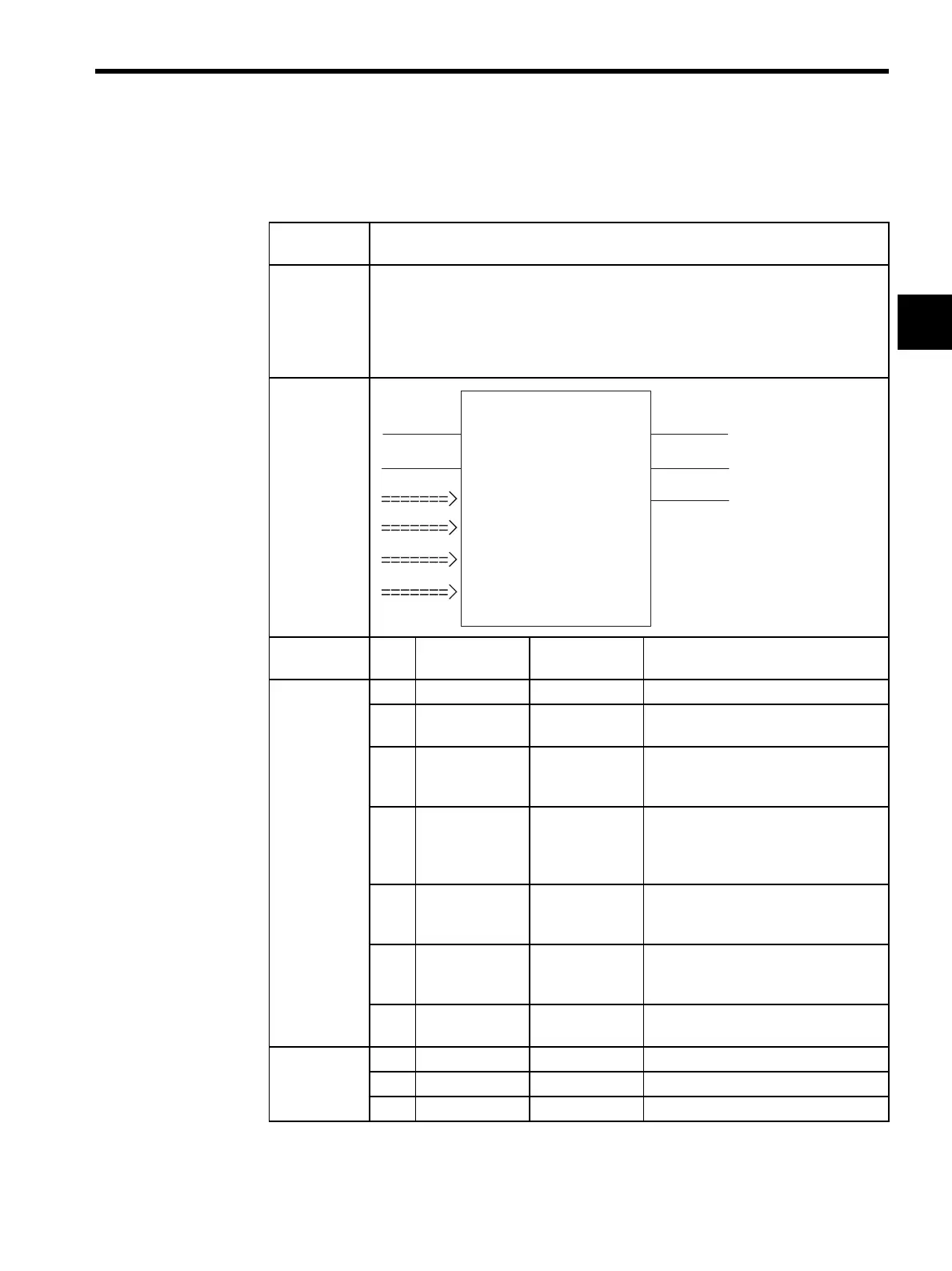

A.2 RECEIVE MESSAGE Function (MSG-RCV)
A-13
A
A.2 RECEIVE MESSAGE Function (MSG-RCV)
A.2.1 Basic Specifications
* Refer to A.1 SEND MESSAGE Function (MSG-SND).
Function
Name
MSG-RCV
Function Receives a message from the remote station on the line specified by the COMMUNI-
CATIONS DEVICE TYPE command (DEV-TYP). Supports multiple protocol types.
The EXECUTION command (EXECUTE) must be held ON until COMPLETE or
ERROR turns ON.
Communications devices: 215IF, 217IF, 218IF, serial, SVB-01
Protocols: MEMOBUS, no-protocol
Function
Definition
I/O
Definitions
No. Name I/O Designation Description
Inputs 1 EXECUTE B-VAL RECEIVE MESSAGE command
2 ABORT B-VAL RECEIVE MESSAGE ABORT com-
mand
3 DEV-TYP I-REG Communications device type:
215IF = 1, 217IF = 5, 218IF = 6, Serial
= 8, SVB-01 = 11
4 PRO-TYP I-REG Communications protocol:
MEMOBUS = 1*
No-protocol 1 = 2
No-protocol 2 = 3
5 CIR-NO I-REG Line number:
215IF = 1 to 8, 217IF = 1 to 24
218IF = 1 to 8, Serial= 1 or 2
6 CH-NO I-REG Transmission buffer channel number
215IF = 1 to 13, 217IF = 1
218IF = 1 to 10, Serial = 1
7 PARAM Address input Leading address of setting data
(MW, DW, #W)
Outputs 1 BUSY B-VAL Message is being received.
2 COMPLETE B-VAL Message receiving has been completed.
3 ERROR B-VAL Error has occurred.
MSG-RCV
EXECUTE BUSY
ABORT COMPLETE
DEV-TYP ERROR
PRP-TYP
CIR-NO
CH-NO
PARAM
