5.7 CP-215 Repeaters
5-49
5
RESET Pushbutton
This pushbutton is used to reset (OFF → ON) the RUN output from CN2.
5.7.4 CP-215 Repeater-TT
The CP-215 Repeater-TT is an electrical Repeater that relays CP-215 or CP-216 transmis-
sion signals using twisted-pair cables.
There are two models of CP-215 Repeater-TT.
• 24-VDC model
• 100/115-VAC, 200-VAC, 100-VDC model
The transmission distance can be extended to a maximum of 500 m.

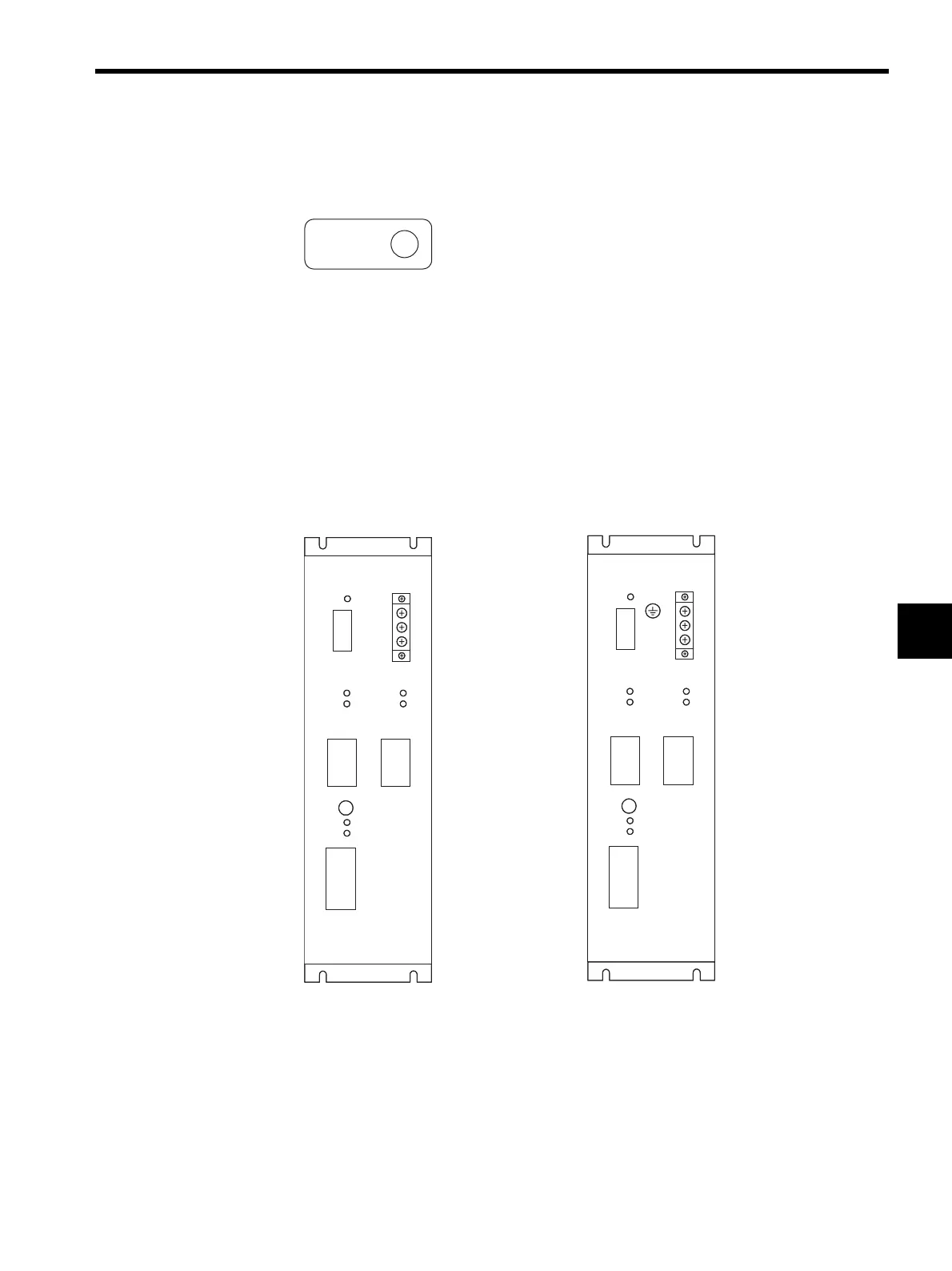

Fig. 5.13 Front View of CP-215 Repeater-TT
RESET
CP-215
REPEATER-TT
POWER
X1
OL
M1
M2
M3
M4
S1
S0
FG
24V
0V
ARX
ATX
BRX
BTX
CN1/A-LINE
CN3/B-LINE
RESET
RUN
ON-LINE
CN2/CONT
SW1
CP-215
REPEATER-TT
POWER
X1
OL
M1
M2
M3
M4
S1
S0
FG
AC1
+
ARX
ATX
BRX
BTX
CN1/A-LINE
CN3/B-LINE
RESET
RUN
ON-LINE
CN2/CONT
AC2
-
AC100V/AC200/DC100V
100-VAC, 200-VAC,
100-VDC Model
24-VDC Model
SW1
