5.2 Part Names
5-5
5
5.2 Part Names
This section explains the LED indicators and switch settings for the 215IF Module.

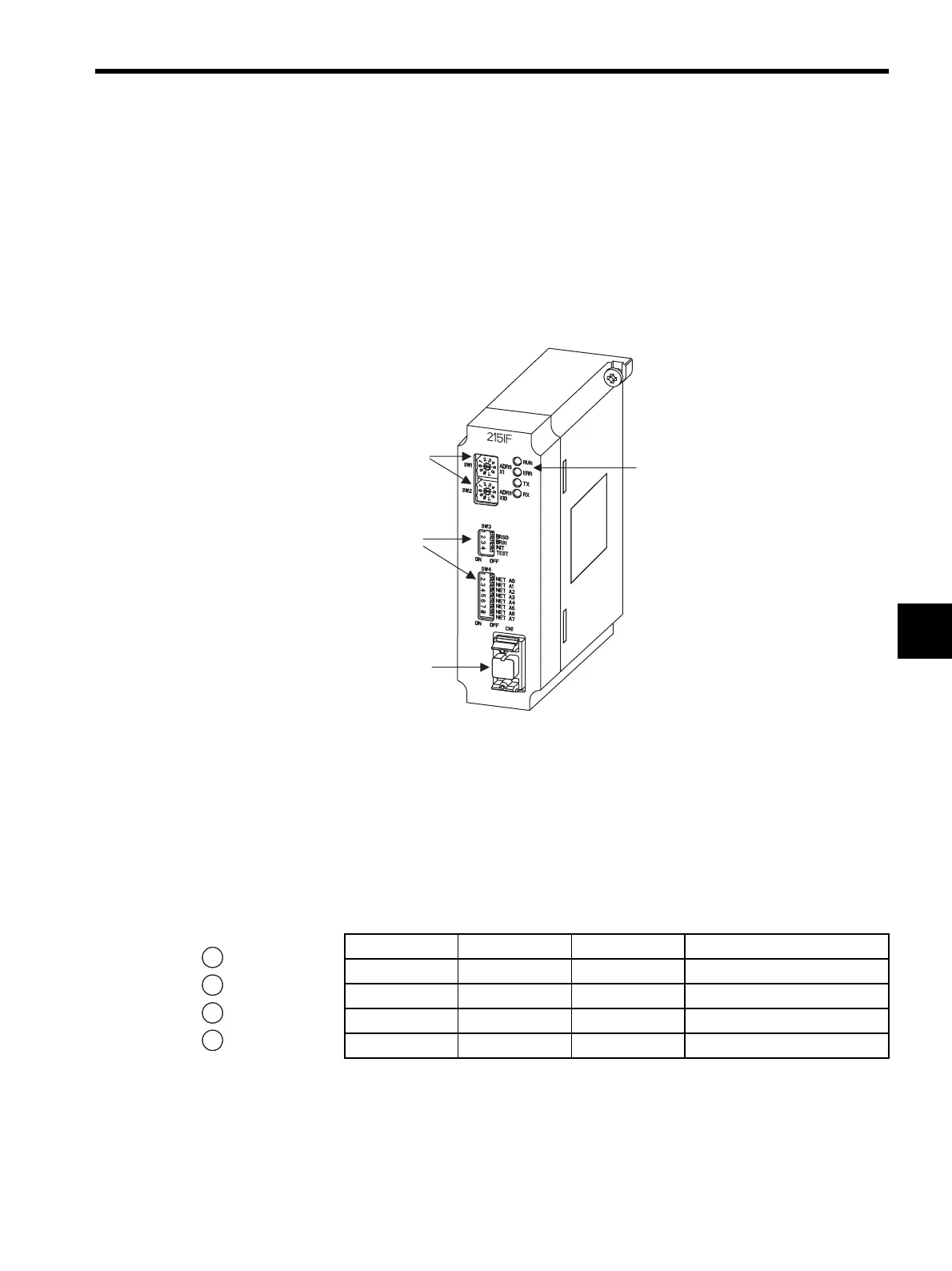

5.2.1 215IF Module External Appearance
 External Appearance
 LED Indicators
While the Module is operating normally, the RUN LED indicator will be lit and the ERR
LED indicator will not be lit. If a failure occurs, the RUN LED indicator will turn OFF and
the ERR LED indicator will light or flash. The TX LED indicator and RX LED indicator
will light when sending/receiving data.
LED indicators
Rotary switches
215IF port CN1
DIP switches
Label Name Color Status when Lit
RUN Run Green Operating normally
ERR Error Red Error occurred (See next page.)
TX 215 TX Green CP-215 sending data
RX 215 RX Green CP-215 receiving data
RUN
ERR
TX
RX
