8 Example Communications Module Applications
8.6.3 217IF Transmission Master Settings
8-36
8.6.3 217IF Transmission Master Settings

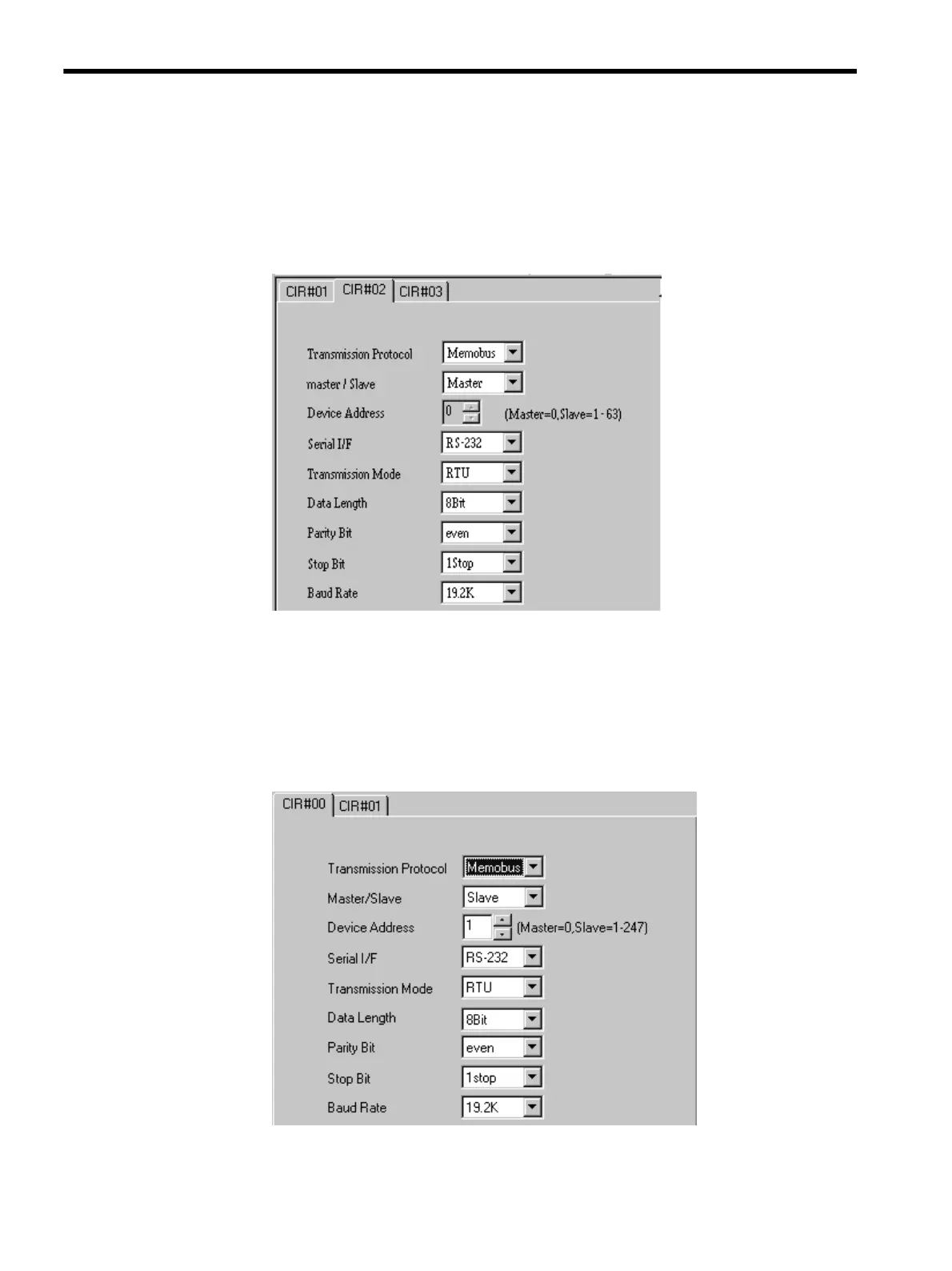

The following figure shows the 217IF Transmission Master settings.
 CIR#02
8.6.4 MP930 Slave Settings
The following figure shows the Slave settings for the MP930 standard serial port (Port 1).
 CIR#00
