5.5.4 Setting CP-215 Transmission Definitions
5-20
5.5.4 Setting CP-215 Transmission Definitions

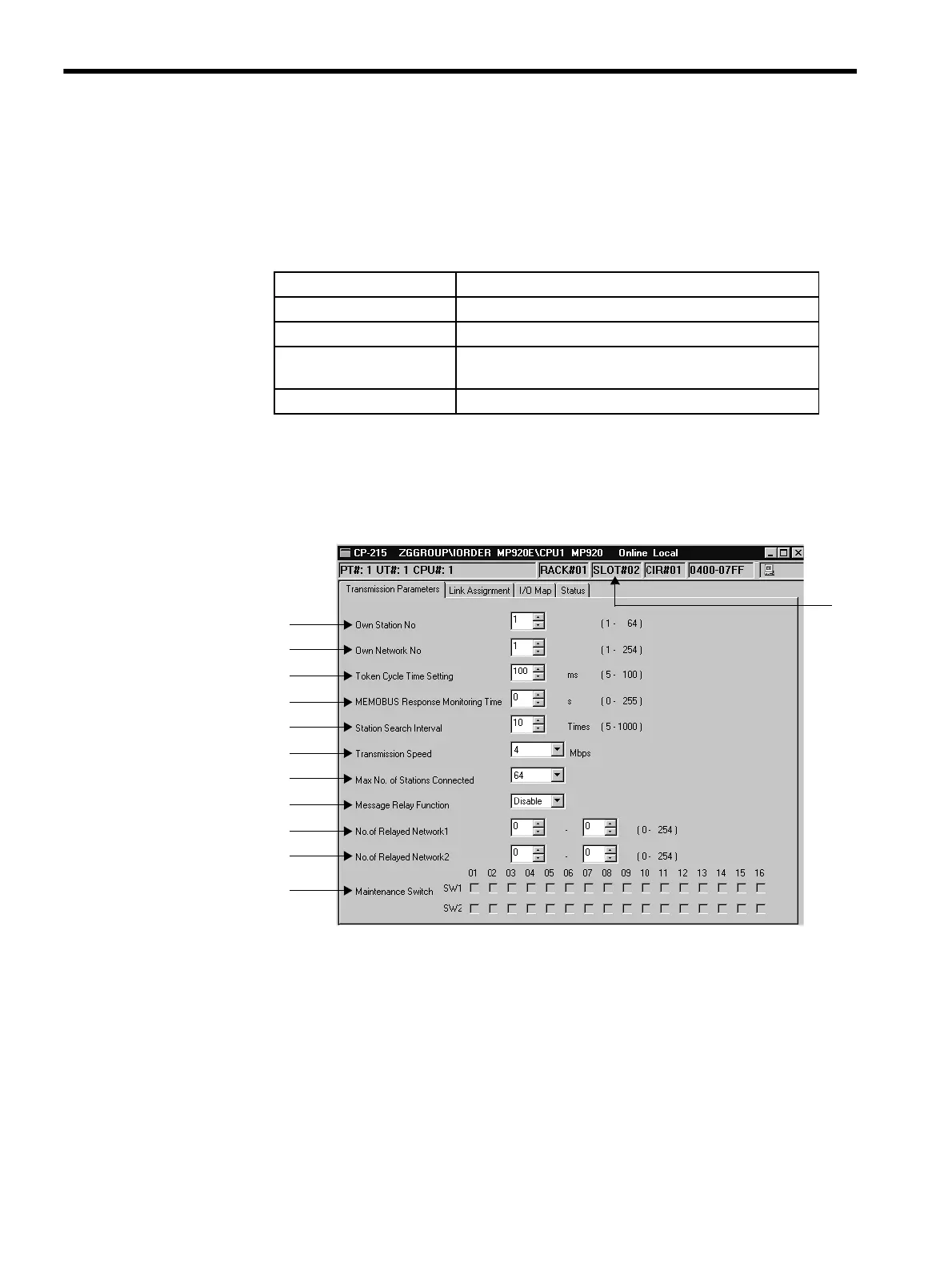

The CP-215 Transmission Definitions Window is composed of four tab pages: The Trans-
mission Parameters, Link Assignments, I/O Map, and Status Tabs. The following table
shows the settings grouped in each tab page.
Transmission Parameter Settings
The Transmission Parameters Tab contains the various parameters required to use the CP-
215 transmission system.
1. Configuration Information
Displays the CP-215 configuration information that was set in the Module Definition
Window.
• Rack#: Displays the rack number of the rack in which the 215IF is defined.
• Slot#: Displays the slot number of the slot in which the 215IF is defined.
• Cir#: Displays the 215IF circuit number.
• Register Range: Displays the I/O register range.
Tab Name Function
Transmission Parameters Sets the CP-215 transmission parameters.
Link Assignment Sets the CP-215 link transmission parameters.
I/O Map Displays or changes the I/O map for the link assignment reg-
isters.
Status Displays the link transmission status.
