5.7 CP-215 Repeaters
5-53
5
* Refer to System Configuration with Maximum Number of Repeaters
under 5.7.2 System Configuration for the specifications for the maxi-
mum number of Repeaters connected and the total transmission distance.
5.7.7 CP-215 Repeater-TS2
The CP-215 Repeater-TS2 is an optical Repeater that relays CP-215 or CP-216 transmission
signals using crystal glass optical fiber cables.
There are two models of CP-215 Repeater-TS2.
• 24-VDC model
• 100/115-VAC, 200-VAC, 100-VDC model
The transmission distance can be extended to a maximum of 2 km.

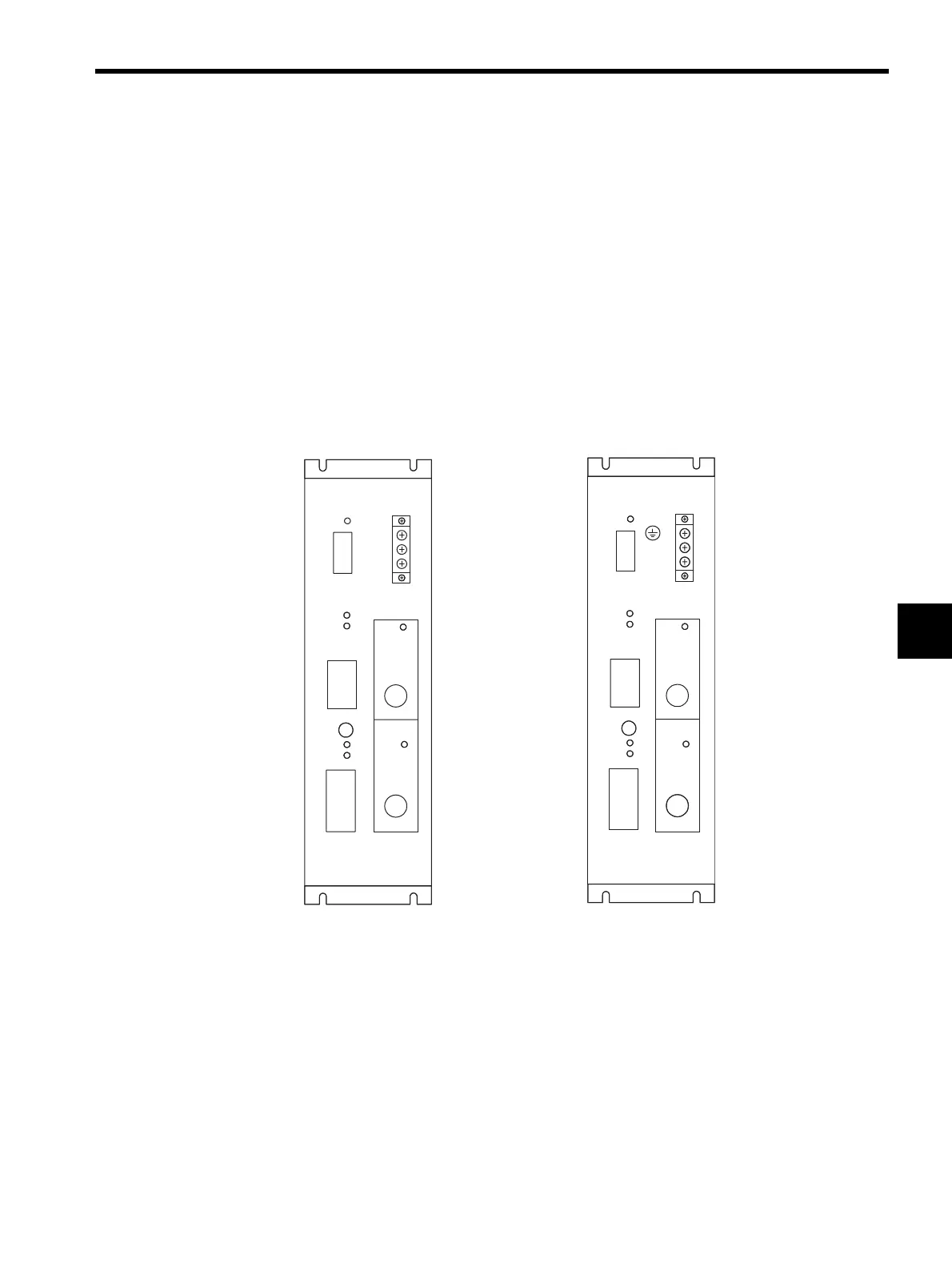

Fig. 5.17 Front View of CP-215 Repeater-TS2
CP-215
REPEATER-TS2
POWER
X1
OL
M1
M2
M3
M4
S1
S0
FG
AC1
+
ARX
ATX
CN1/A-LINE
RESET
RUN
ON-LINE
CN2/CONT
AC2
-
AC100V/AC200/DC100V
100-VAC, 200-VAC,
100-VDC Model
BRX
BTX
CN3/B-LINE
CN3/BRX
CN4/BTX
CP-215
REPEATER-TS2
POWER
X1
OL
M1
M2
M3
M4
S1
S0
FG
24V
0V
ARX
ATX
CN1/A-LINE
RESET
RUN
ON-LINE
CN2/CONT
24-VDC Model
BRX
BTX
CN3/B-LINE
CN3/BRX
CN4/BTX
SW1 SW1
