YASKAWA MP920 - CP-215 Repeater-TP

5 215IF Module
5.7.6 CP-215 Repeater-TP
5-52
5.7.6 CP-215 Repeater-TP
The CP-215 Repeater-TP is an optical Repeater that relays CP-215 or CP-216 transmission
signals using H-PCF optical fiber cables.
There are two models of CP-215 Repeater-TP.
• 24-VDC model
• 100/115-VAC, 200-VAC, 100-VDC model
The transmission distance can be extended to a maximum of 850 m.

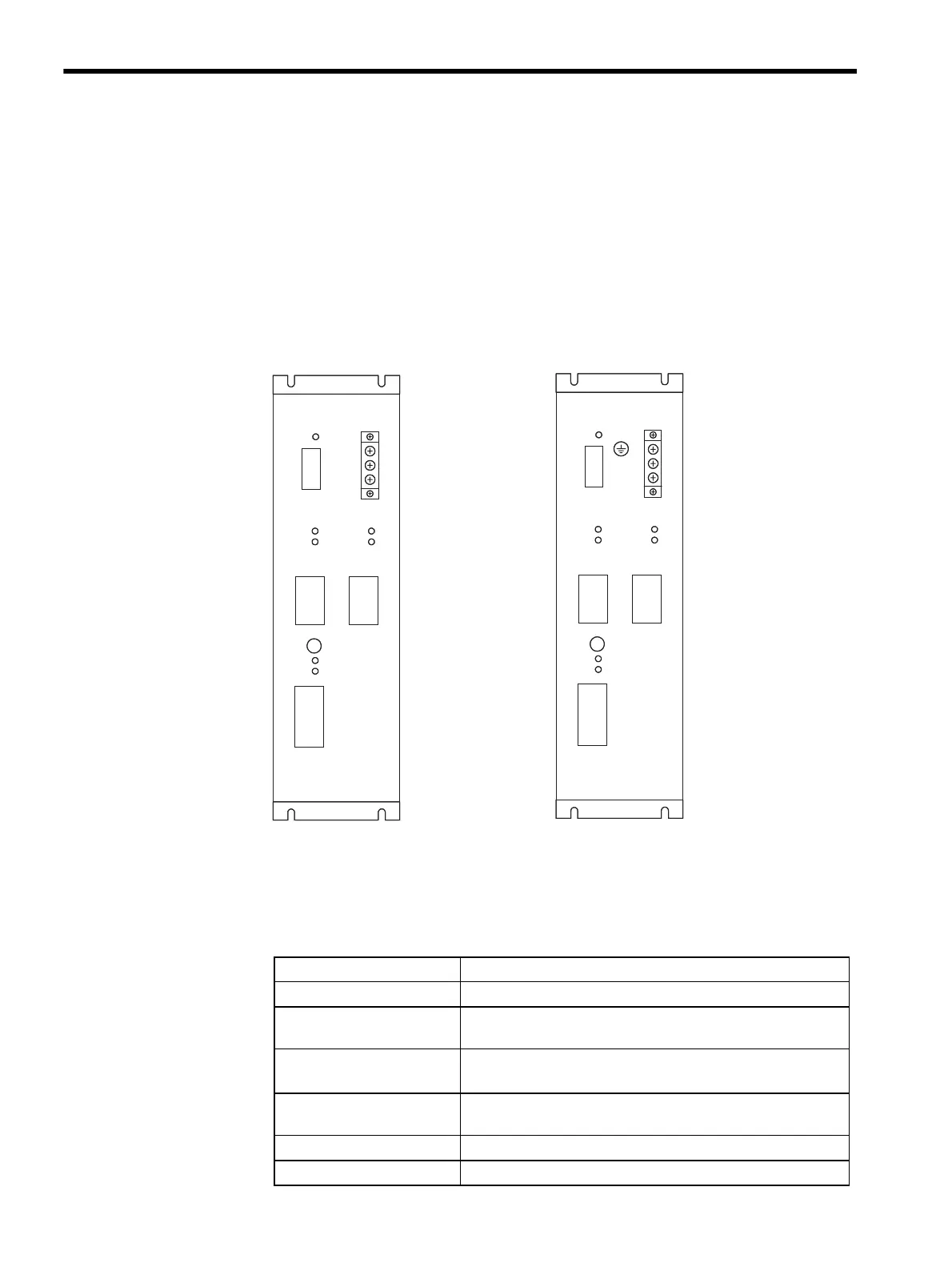

Fig. 5.16 Front View of CP-215 Repeater-TP
 Repeater-to-Repeater Connector (CN3/B-LINE)
Item Specifications
Transmission Speed 1 Mbps, 2 Mbps, 4 Mbps (can be set with SW1)
Transmission Distance
*
0 to 650 m with crimp connections
650 to 850 m with adhesive connections
Optical Fiber H-PCF, SI-200/250, wavelength λ = 850 nm, loss = 7 dB/km,
bandwidth = 14.5 MHz ⋅ km
Applicable Connector Two-core plastic connector
DL-92 or DL-92H (conforming to JIS C 5977 F08)
Optical Transmission Level -14 to -18 dBm
Optical Reception Level -14 to -28 dBm
100-VAC, 200-VAC,
100-VDC Model
24-VDC Model
CP-215
REPEATER-TP
POWER
X1
OL
M1
M2
M3
M4
S1
S0
FG
24V
0V
ARX
ATX
BRX
BTX
CN1/A-LINE
CN3/B-LINE
RESET
RUN
ON-LINE
CN2/CONT
CP-215
REPEATER-TP
POWER
X1
OL
M1
M2
M3
M4
S1
S0
FG
AC1
+
ARX
ATX
BRX
BTX
CN1/A-LINE
CN3/B-LINE
RESET
RUN
ON-LINE
CN2/CONT
AC2
-
AC100V/AC200/DC100V
SW1 SW1
