8.3 Connection with MELSEC
8-19
8
8.3.3 217IF Transmission Settings

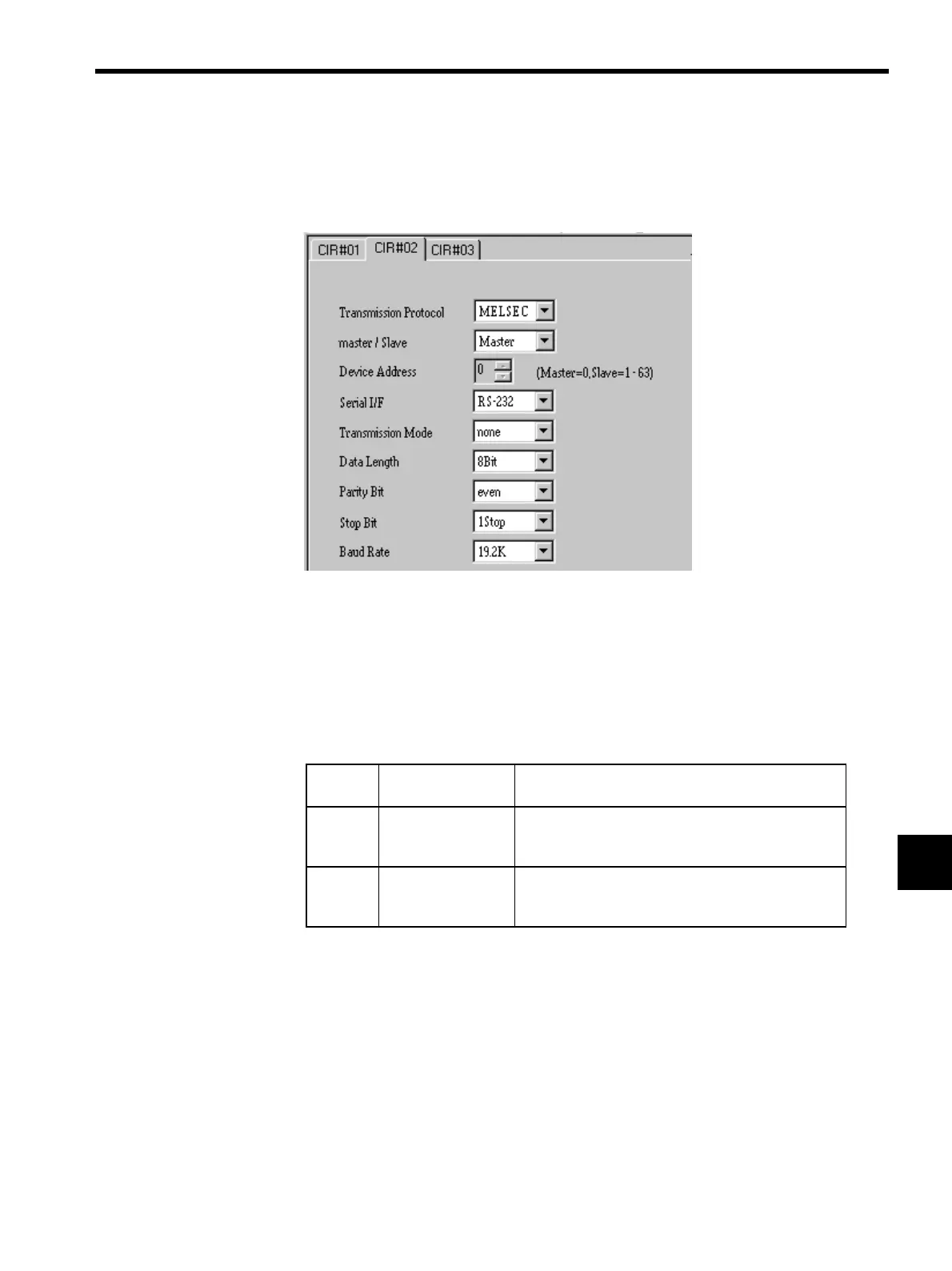

The following figure shows the 217IF Transmission settings.
8.3.4 MELSEC Settings (AJ71UC24 Example)
Buffer Memory Settings
Change the two settings shown in the following table.
The buffer memory is not backed up. It should therefore be set in the user program.
Note: 1. Leave the other addresses at their default setting.
2. The above addresses are used when the buffer memory is installed
in slot 1. These addresses change when other slots are used.
Address Name Default Value Changed Value
(Recommended Value)
10BH RS-232C
CD terminal check
setting area
0 (Check) 1 (No check)
11AH Transmission con-
trol specification
area
0 (DTR control) 1 (No DTR control)
