7 218IF Module
7.1.2 10Base-T Connection
7-4
7.1.2 10Base-T Connection

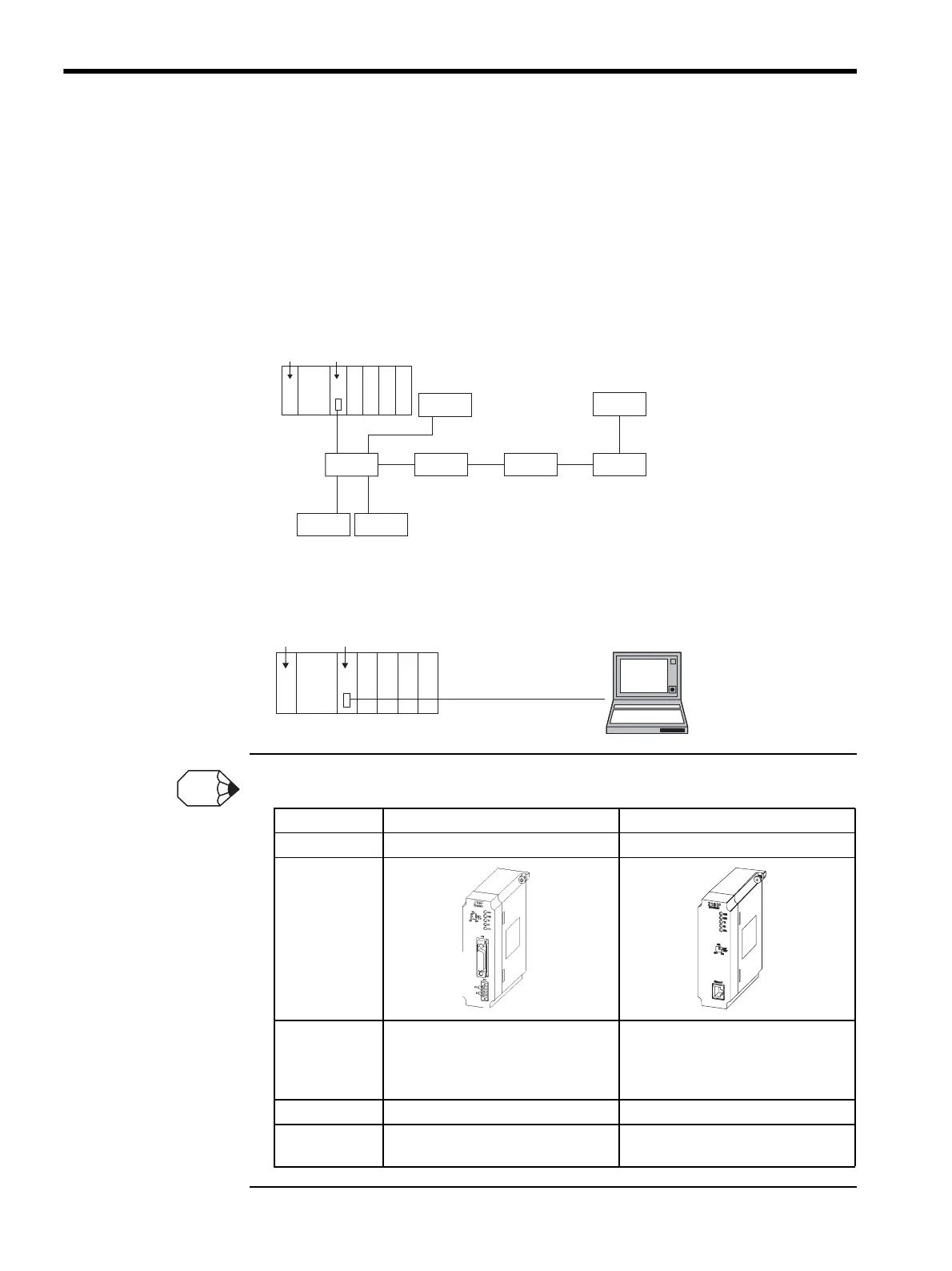

The following diagram shows an example of a 10Base-T connections.
Connection Example 1
In this example, the total distance between the nodes on both end of the network is 500 m
and the maximum number of nodes is 5.
Connection Example 2
The table below shows differences between 218IF Module and 218IFA Module.
Description 218IF 218IFA
Model Number JEPMC-CM210 JEPMC-CM210A
External
Appearance
Specifications • 10Base-5
• Requires a conversion transceiver to
be externally connected for conver-
sion to 10Base-T
• 10Base-T
Connector 1 • AUI Connector (15 pin D-sub) • Modular jack
Connector 2 • BL3.5/2F-AU (Weidmuller)
For +12-VDC power supply
• None
218IFA
Power
supply
Hub
Hub
Other Station Other Station
Other Station
Other Station
100m
100m
100m
100m 100m
100m
Repeater Repeater
100m
100m
CPU
10Base-T (Cross cable)
100m max.
218IFA
Power
Supply
CPU
