8 Example Communications Module Applications
8.5.1 System Configuration
8-30
8.5 Connection to an Inverter
This section explains master communications with an inverter via RS-485 MEMOBUS.

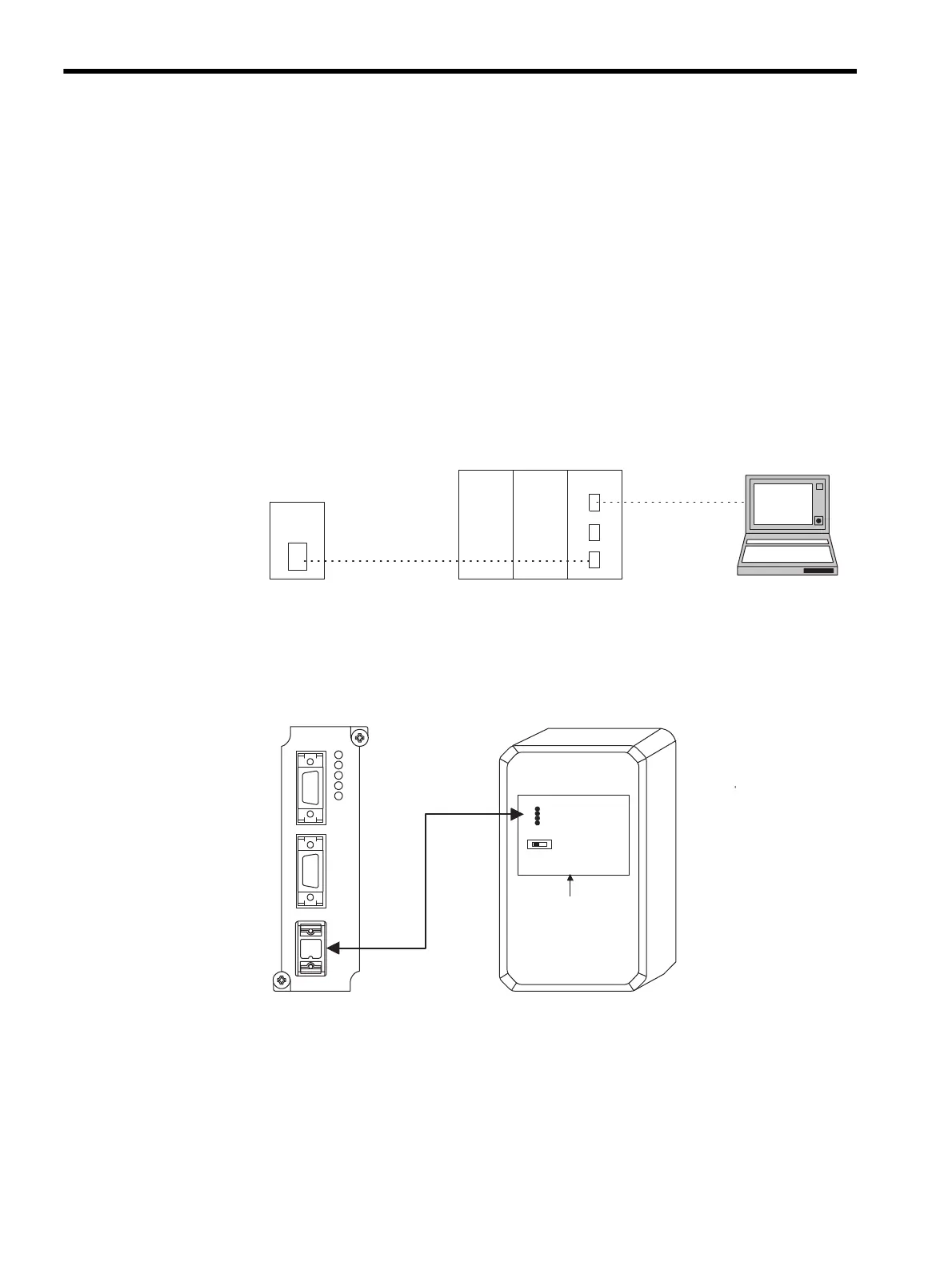

8.5.1 System Configuration
Connect the inverter (VS-616G5) to the RS-485 port of the 217IF Module to control the
Inverter. This enables 1:N communications, thereby enabling multi-drop connections and
control of multiple Inverters.
The engineering environment is provided by connecting the MPE720 Programming Device
to the RS-232C port of the 217IF.
8.5.2 Cable Specifications
 RS-485 Connection Cable for Inverter VS-616G5
MP920
PS-01 CPU-01 217IF
MEMOBUS
RS-485
VS-616G5
Engineering
MPE720
RS-232C
CN2
CN2
CN1
RUN
ERR
TRX1
TRX2
TRX3
CN3
CN3
217IF
RS232/422
1
2
3
4
ON OFF
VS-616G5
217IF
RS-232C/485
conversion card
SI-K2
