11.Error Count (Error Counter)
Displays the number of times an error has occurred in each connection.
12.Response Time [ms]
Displays the time (ms) taken for a response to be received after a command has been
transmitted with the MSG-SND function.
13.Connection Type
Displays the Connect Type (TCP or UDP) connection parameter set in the Transmis-
sion Parameters Tab.
14.Protocol Type
Displays the Protocol Type (MEMOBUS, Extended MEMOBUS, MELSEC, or no pro-
tocol) connection parameter set in the Transmission Parameters Tab.
15.Code
Displays the Code (ASCII, Binary, or RTU) connection parameter set in the Transmis-
sion Parameters Tab.
16.DST. Station (Remote Station’s Name)
Displays the DST. Station connection parameter set in the Transmission Parameters
Tab.
The all data are displayed on the Online Mode. In Offline Mode, nothing will be dis-
played.
7.5.6 Saving CP-218 Transmission Definitions Data
Use the following procedure to save the CP-218 Transmission Definitions data.
In Online Mode, the settings are saved in the Machine Controller and the hard disk on the
computer. In Offline Mode, the settings are saved in the hard disk on the computer.

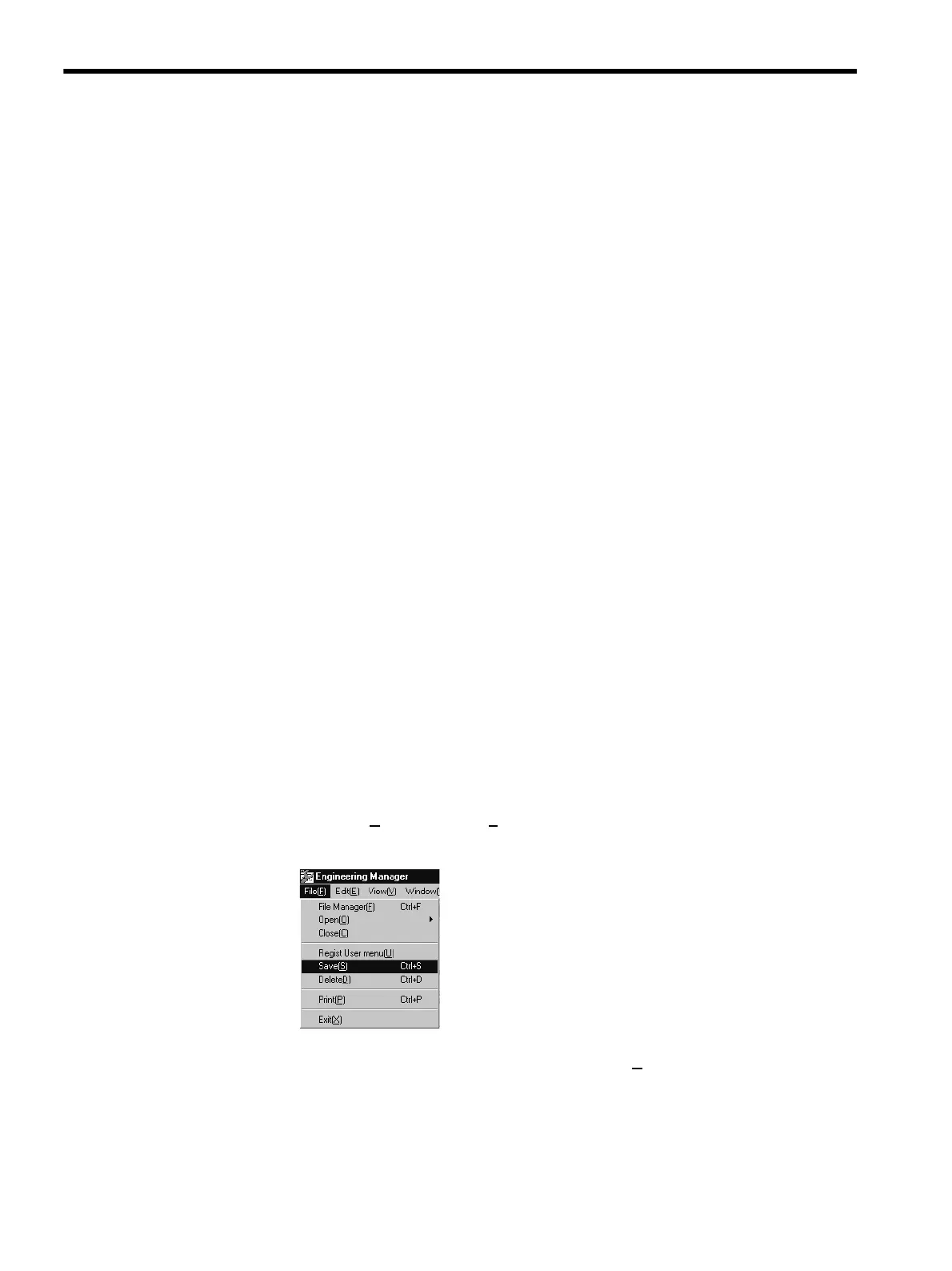

1. Click File (F
) and then Save (S) on the CP-218 Transmission Definition Window’s
menu.
2. Verify the message in the message box and click the Y
es button.
3. Verify the message in the message box and click the OK button.
