8.2 Connection to a SYSMAC PLC
8-13
8
8.2.3 217IF Transmission Settings

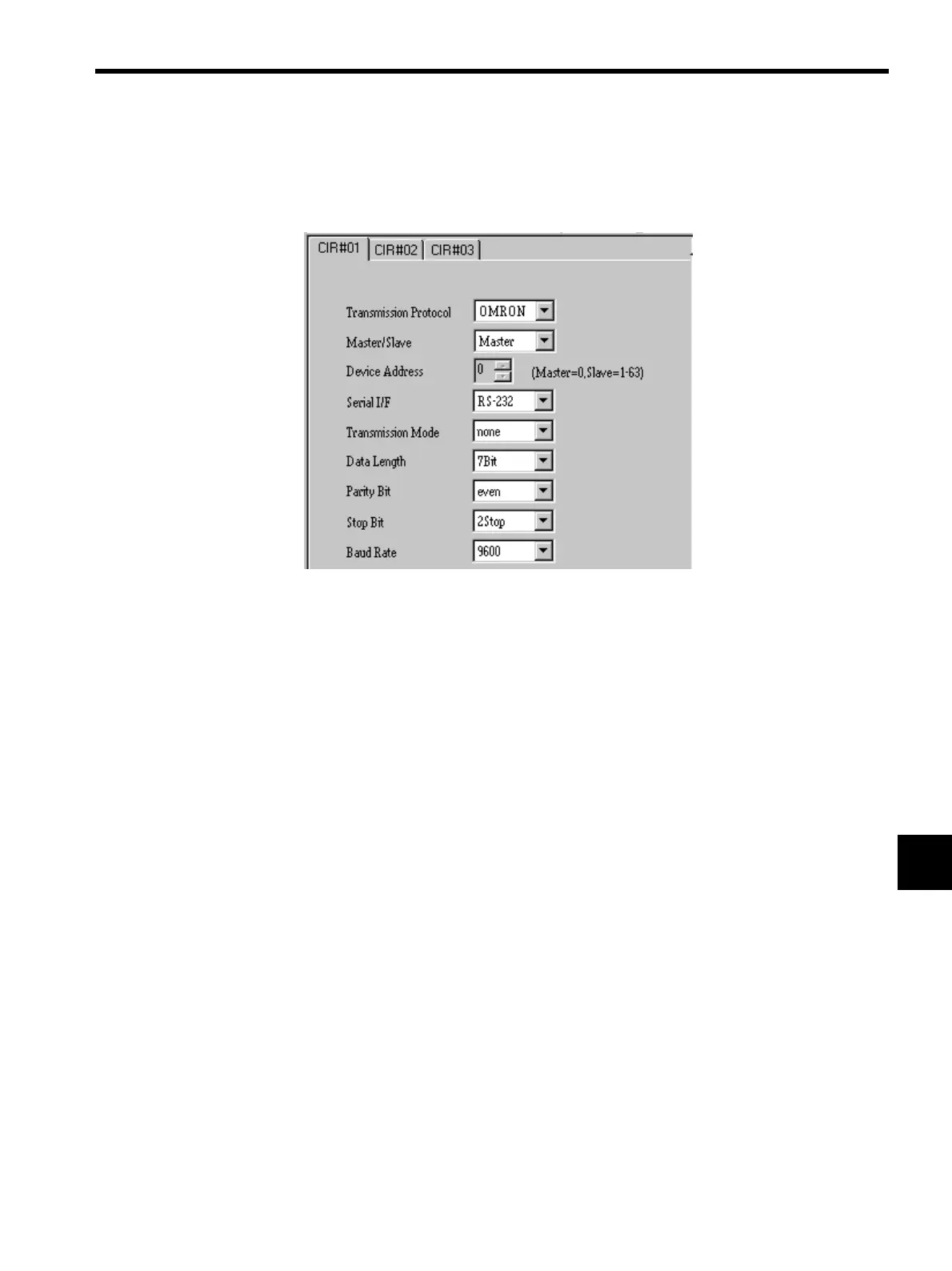

The following figure shows the CP-217 Transmission settings.
8.2.4 SYSMAC PLC Settings (C28H)
The following table shows operation examples for the C28-Series PLCs. These settings do
not apply to other models.
For the SYSMAC PLC settings, use a Programming Console to write to the PC Setup (DM
0920 to DM 0923).
Perform the registration operations shown in the flowchart on the next page to register the
settings in the system.
