YASKAWA MP920 - Communications Port Settings; Serial Communications Ports

4 Communications Process
4.2.1 Serial Communications Ports
4-4
4.2 Communications Port Settings
This section explains the method of setting the various types of communications port.
4.2.1 Serial Communications Ports
Serial communications ports are set when engineering is performed with the MPE720 via the
217IF Module or the serial ports on the Machine Controller CPU Module.
Only the CN1 serial port can be used as an engineering port with the 217IF.
 Setting Procedure
Use the following procedure to set a serial communications port.

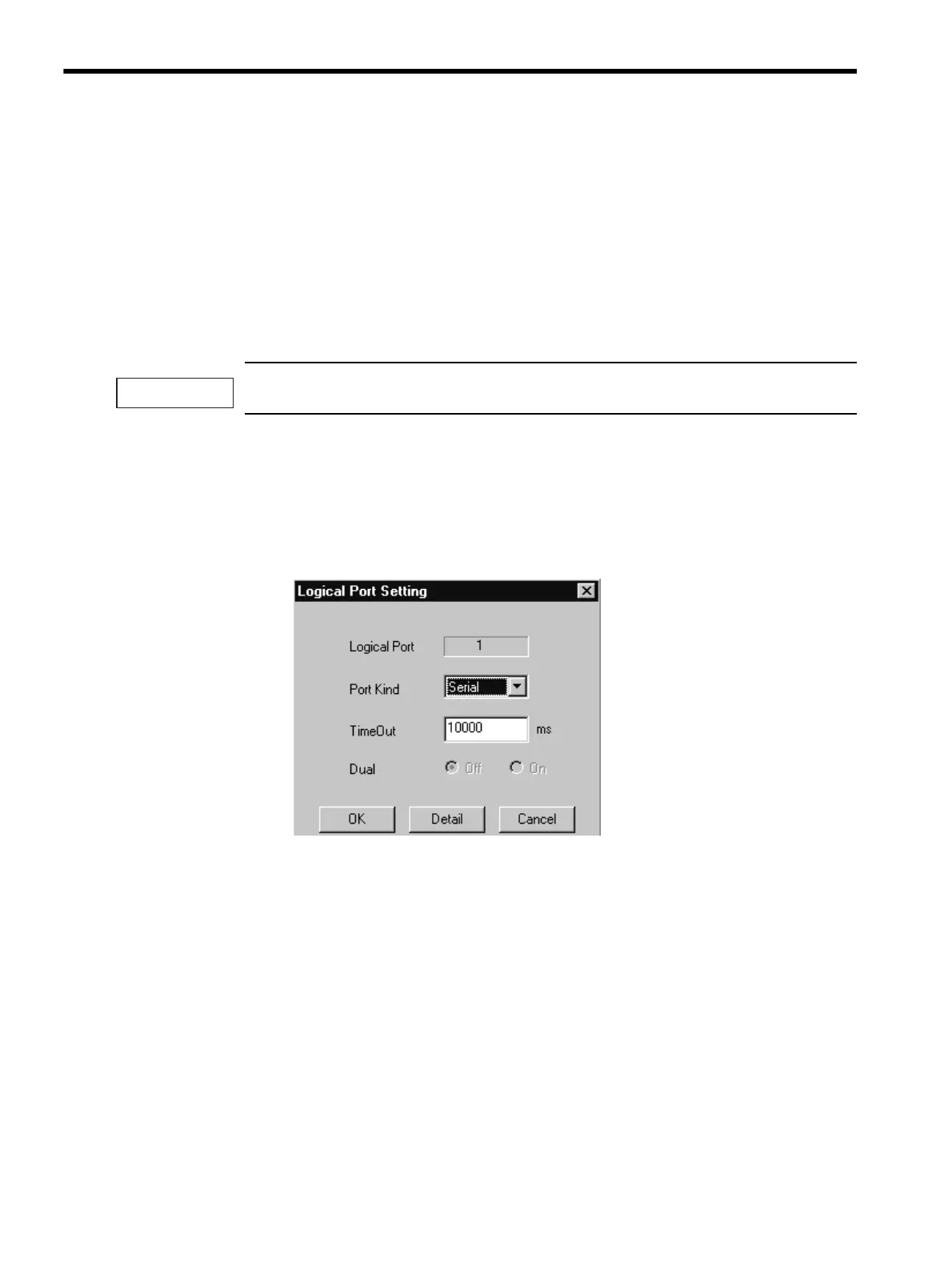

1. Select Serial under Port Kind on the Logical Port Setting Window and click the Detail
button.
IMPORTANT
