5.7 CP-215 Repeaters
5-51
5

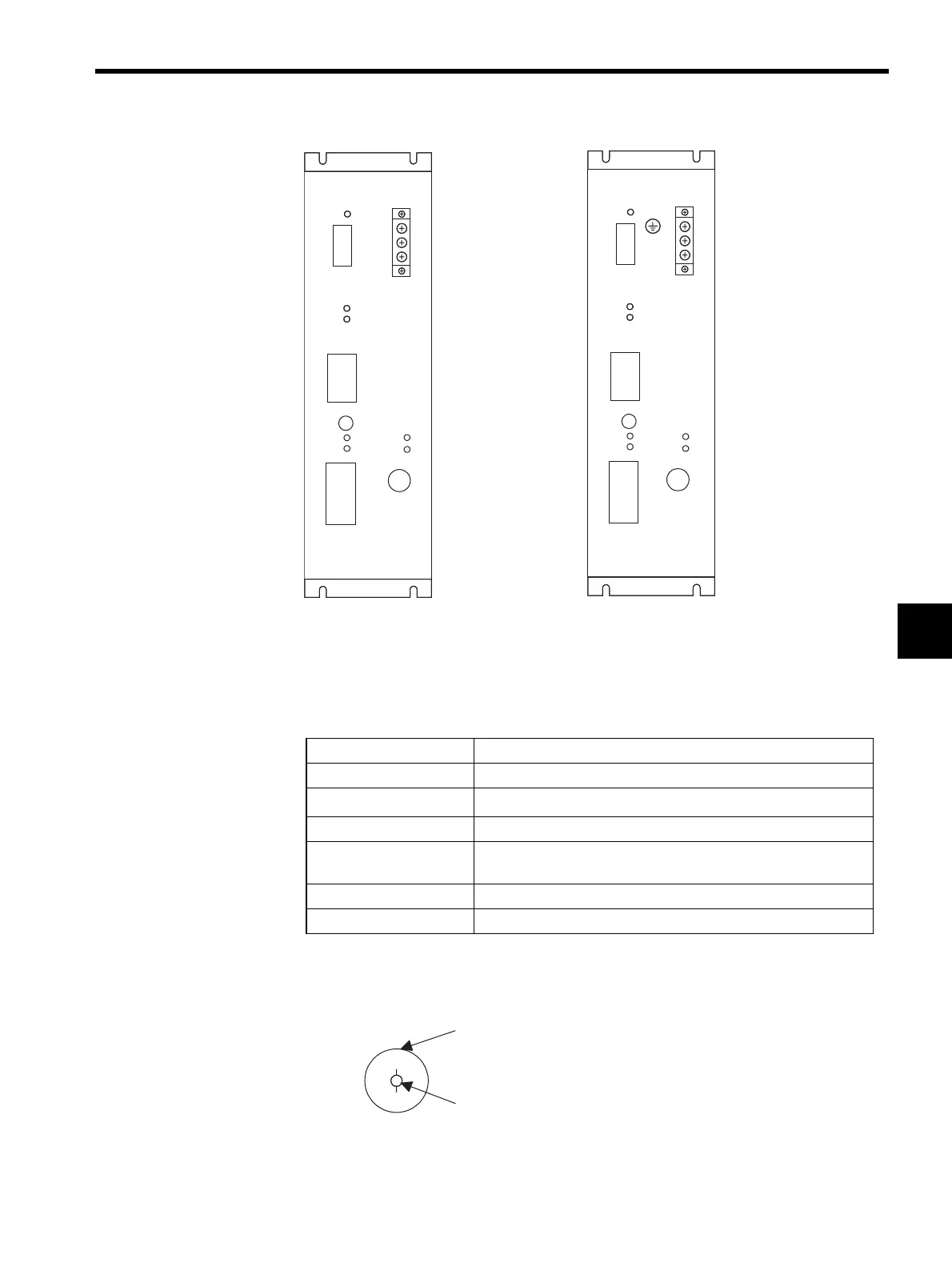

Fig. 5.14 Front View of CP-215 Repeater-TC
Repeater-to-Repeater Connector (CN3/B-LINE)
* Refer to System Configuration with Maximum Number of Repeaters
under 5.7.2 System Configuration for the specifications for the maxi-
mum number of Repeaters connected and the total transmission distance.
Fig. 5.15 BNC Coaxial Connector
Item Specifications
Transmission Speed 1 Mbps, 2 Mbps, 4 Mbps (can be set with SW1)
Transmission Distance
*
1 km between Repeaters (7C-FB, 4 Mbps)
Coaxial Cable 75 Ω
Applicable Connector Inside control panel: BNC type
Outside control panel: F type
Transmission Level 68.9 dBm (2.8 Vp)
Reception Level 53.5 dBm (0.475 Vp)
100-VAC, 200-VAC,
100-VDC Model
24-VDC Model
BRX
BTX
CN3/B-LINE
CP-215
REPEATER-TC
POWER
X1
OL
M1
M2
M3
M4
S1
S0
FG
AC1
+
ARX
ATX
CN1/A-LINE
RESET
RUN
ON-LINE
CN2/CONT
AC2
-
AC100V/AC200/DC100V
CP-215
REPEATER-TC
POWER
X1
OL
M1
M2
M3
M4
S1
S0
FG
24V
0V
ARX
ATX
CN1/A-LINE
RESET
RUN
ON-LINE
CN2/CONT
BRX
BTX
CN3/B-LINE
SW1 SW1
LINE-
LINE+
