5.7 CP-215 Repeaters
5-55
5

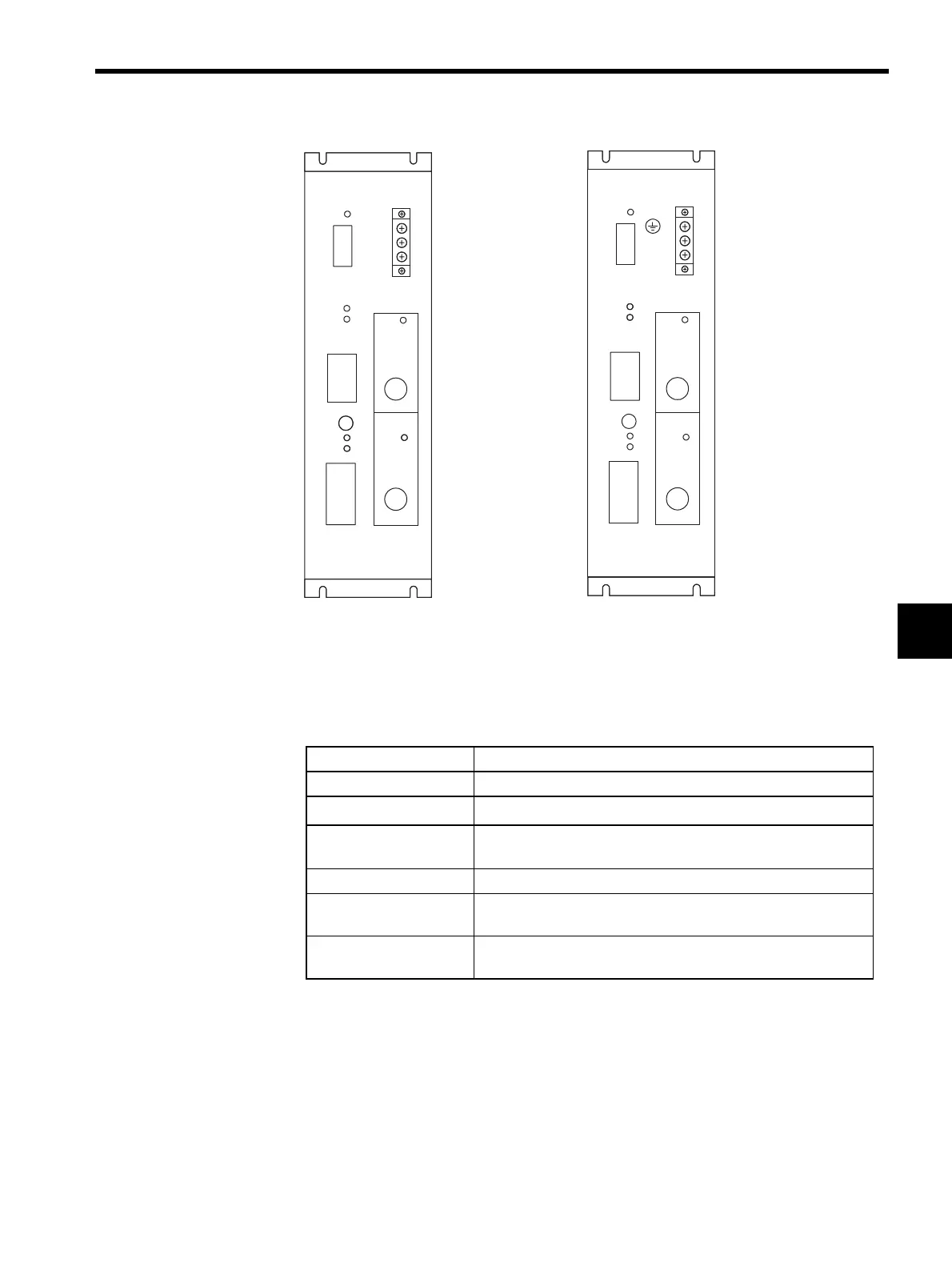

Fig. 5.18 Front View of CP-215 Repeater-TS5
Repeater-to-Repeater Connector (CN3/BRX, CN4/BTX)
* Refer to System Configuration with Maximum Number of Repeaters
under 5.7.2 System Configuration for the specifications for the maxi-
mum number of Repeaters connected and the total transmission distance.
Item Specifications
Transmission Speed 1 Mbps, 2 Mbps, 4 Mbps (can be set with SW1)
Transmission Distance
*
0 to 5 km
Optical Fiber Crystal glass optical fiber, GI-50/125, wavelength λ = 1300 nm,
loss = 1 dB/km or less, bandwidth = 200 MHz
⋅ km
Applicable Connector FC (conforming to JIS C 5970 F01)
Optical Transmission
Level (CN4)
-22 dBm
Optical Reception Level
(CN3)
-16 to -29 dBm
CP-215
REPEATER-TS5
POWER
X1
OL
M1
M2
M3
M4
S1
S0
FG
AC1
+
ARX
ATX
CN1/A-LINE
RESET
RUN
ON-LINE
CN2/CONT
AC2
-
AC100V/AC200/DC100V
100-VAC, 200-VAC,
100-VDC 㧹odel
BRX
BTX
CN3/B-LINE
CN3/BRX
CN4/BTX
CP-215
REPEATER-TS5
POWER
X1
OL
M1
M2
M3
M4
S1
S0
FG
24V
0V
ARX
ATX
CN1/A-LINE
RESET
RUN
ON-LINE
CN2/CONT
24-VCD Model
BRX
BTX
CN3/B-LINE
CN3/BRX
CN4/BTX
SW1 SW1
