4.2 Communications Port Settings
4-9
4

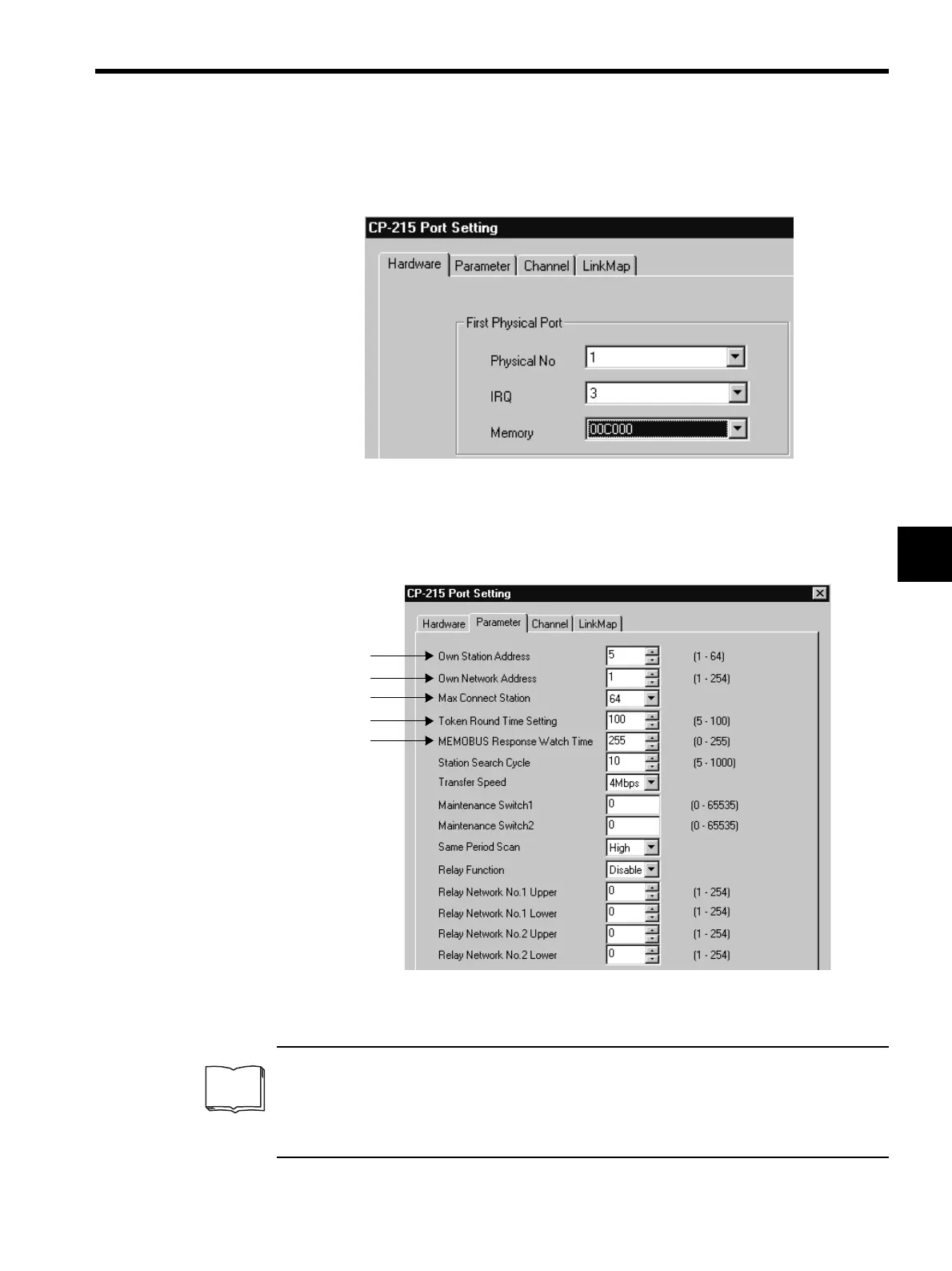

• Memory (Shared memory)
Set the communications buffer address. This is normally set to an unused memory
address in the UMB.
b) Parameter Tab Page
Set the CP-215 transmission parameters. Set the first five parameters: from Own Sta-
tion Address to MEMOBUS Response Watch Time. Leave the other parameters on
their default settings.
i) Own Station Address (Station No.)
Set the MPE720 station number.
UMB
UMB: Upper Memory Block.
UMB is one method of expanding DOS memory. Specify the unused area in the area from 640 KB to 1
MB.
i)
ii)
iii)
iv)
v)
