YASKAWA MP920 - Page 69

5 215IF Module
5.2.2 Setting Switches
5-8

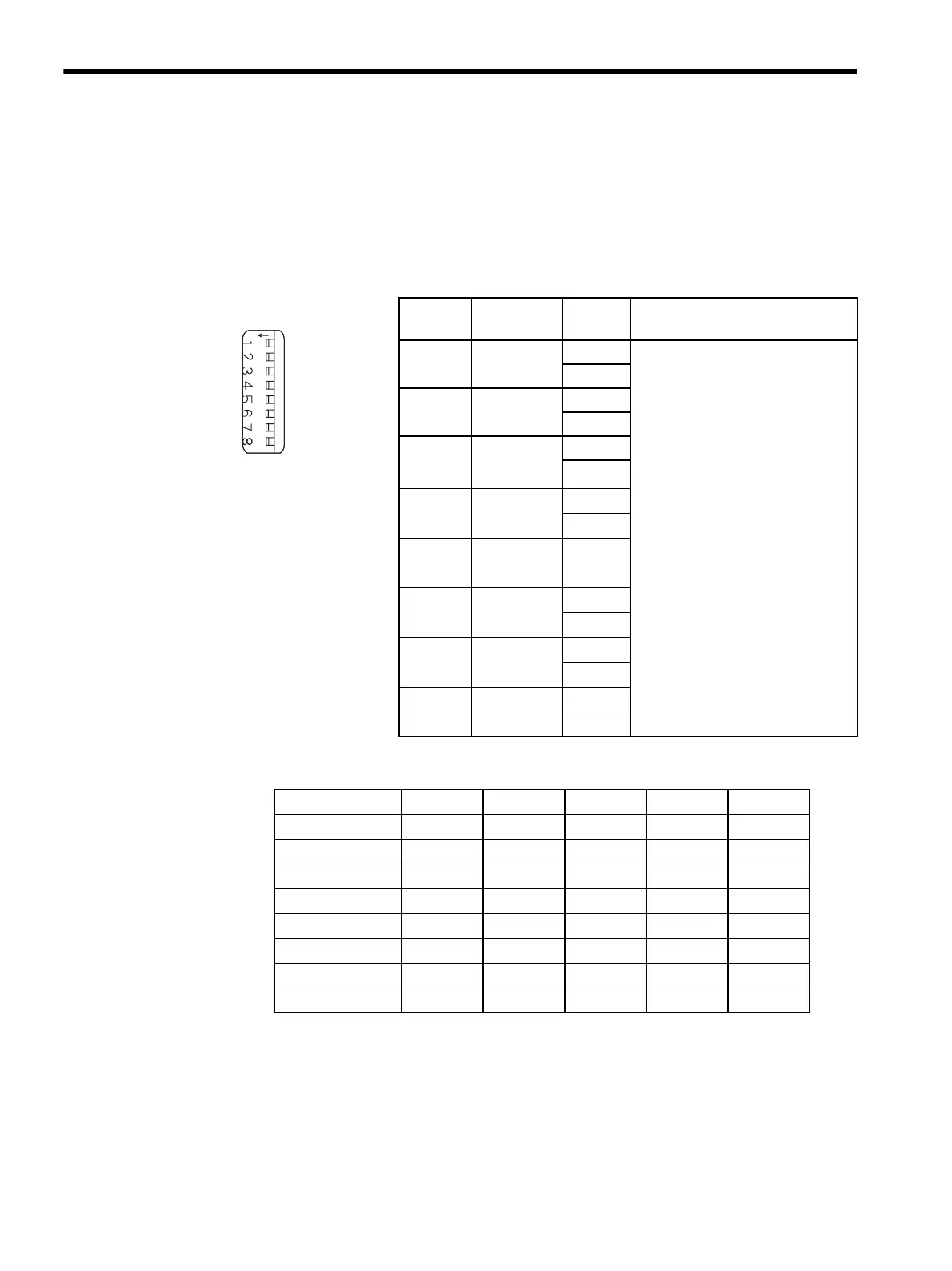

 DIP Switch (SW4)
SW4 sets the network No. for 215IF communications. The networks are numbered 1 to 254.
This switch is effective only when the INIT switch is ON. The pins are all set to OFF (right)
before shipment.
Indicator
Name
Name Status Function
NET A0 Network
Address 0
ON
See the following table for settings.
OFF
NET A1 Network
Address 1
ON
OFF
NET A2 Network
Address 2
ON
OFF
NET A3 Network
Address 3
ON
OFF
NET A4 Network
Address 4
ON
OFF
NET A5 Network
Address 5
ON
OFF
NET A6 Network
Address 6
ON
OFF
NET A7 Network
Address 7
ON
OFF
SW4
NET A0
NET A1
NET A2
NET A3
NET A4
NET A5
NET A6
NET A7
ON
OFF
ON
Network No. 1 2 3 . . . 254
A0
ON OFF ON . . . OFF
A1
OFF ON ON . . . ON
A2
OFF OFF OFF . . . ON
A3
OFF OFF OFF . . . ON
A4
OFF OFF OFF . . . ON
A5
OFF OFF OFF . . . ON
A6
OFF OFF OFF . . . ON
A7
OFF OFF OFF . . . ON
