5 215IF Module
5.6.3 Example of a Network Configuration Using the Relay Function
5-32

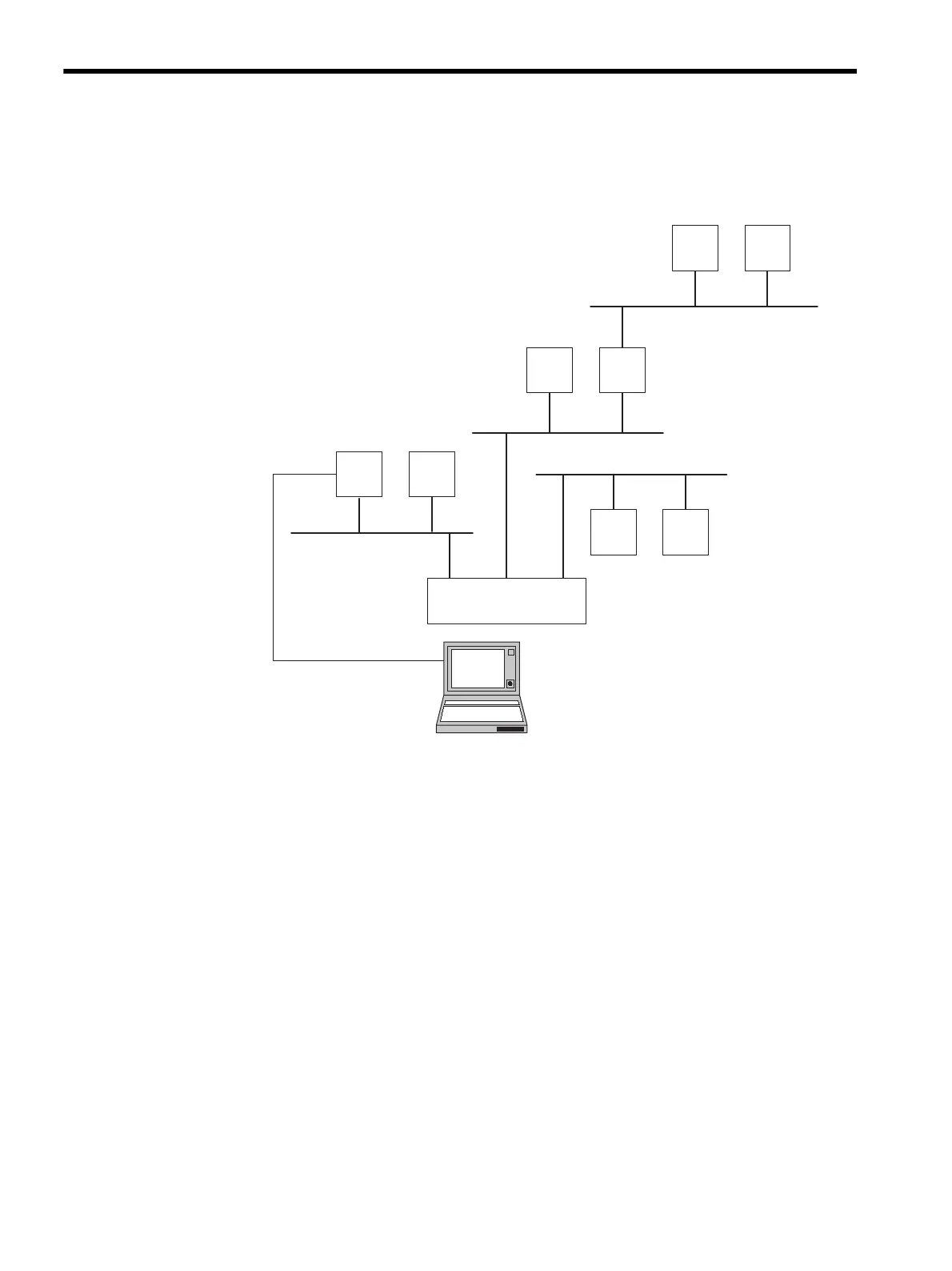

 215IF Network Configuration 2
In the following example, three 215IF Modules are mounted to one MP920 Controller.
Settings
1. NW#1 ST#1
• Message Relay Function: Yes
• No. of Relayed Network 1: 1 to 1
• No. of Relayed Network 2: Not set
2. NW#2 ST#10
• Message Relay Function: Yes
• No. of Relayed Network 1: 2 to 1
• No. of Relayed Network 2: 4 to 4
3. NW#3 ST#20
• Message Relay Function: Yes
• No. of Relayed Network 1: 3 to 3
• No. of Relayed Network 2: Not set
RS-232C
ST#11
ST#12
NW#2
ST#31
ST#32
NW#4
ST#2 ST#3
NW#1
ST#21
ST#22
CP-215
NW#3
CP-215
CP-215
ST#1 ST#10
ST#20
MPE720
ST#30
MP920
CP-215
