YASKAWA SGD7S series User Manual

4.4 Wiring Servomotors
4.4.3 Wiring the SERVOPACK to the Encoder
4-30

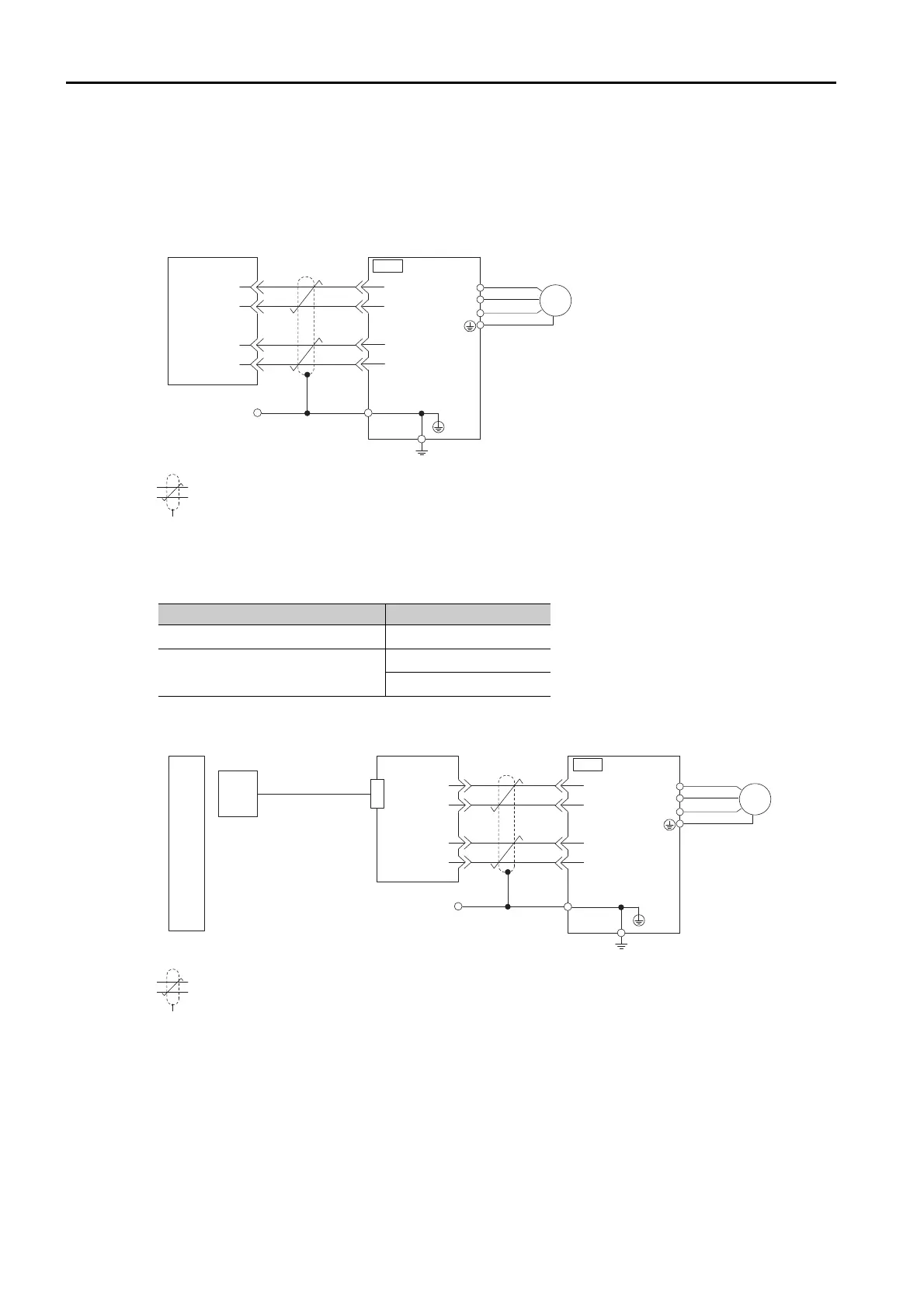

 Connections to Linear Encoder from Magnescale Co., Ltd.
If you use a linear encoder from Magnescale Co., Ltd., the wiring will depend on the model of
the linear encoder.

SR75 and SR85
* represents a shielded twisted-pair cable.
 SL700, SL710, SL720, SL730, and SQ10
• PL101-RY, MQ10-FLA, or MQ10-GLA Interpolator
The following table gives the Linear Encoder and Interpolator combinations.
*1. This is the model of the Head with Interpolator.
*2. This is the model of the Interpolator.
* represents a shielded twisted-pair cable.
Linear Encoder Model Interpolator Model
SL700, SL710, SL720, and SL730
PL101-RY
*1
SQ10
MQ10-FLA
*2
MQ10-GLA
*2
PS
*
/PS
PG5V
PG0V
5
6
1
2
CN2
U
V
W
M
Linear encoder from
Magnescale Co., Ltd.
Shield
Connector
shell
Connector
shell
SERVOPACK
*
PS
/PS
PG5V
PG0V
5
6
1
2
CN2
U
V
W
M
InterpolatorLinear encoder
Shield
Connector
shell
Head
Cable from
Magnescale Co., Ltd.
Connector
shell
SERVOPACK

YASKAWA SGD7S series Specifications

General

Series	SGD7S
Safety	STO (Safe Torque Off)
Humidity	90% RH or less (non-condensing)
Control Method	PWM Control
Communication	EtherCAT, MECHATROLINK-III, MECHATROLINK-II
Output Power	0.1 kW to 15 kW
Feedback System	Incremental encoder, Absolute encoder
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Overheating, Encoder Error
Ambient Temperature	0 to 55°C
Storage Temperature	-20 to 85°C
Vibration Resistance	5.9 m/s²
Installation	Panel mounted
Certifications	CE, UL, cUL
