5.7 H: Terminal Functions
192 YASKAWA ELECTRIC SIEP C710616 30B YASKAWA AC Drive T1000A Technical Manual
Note: Detection works in both directions, forward and reverse.

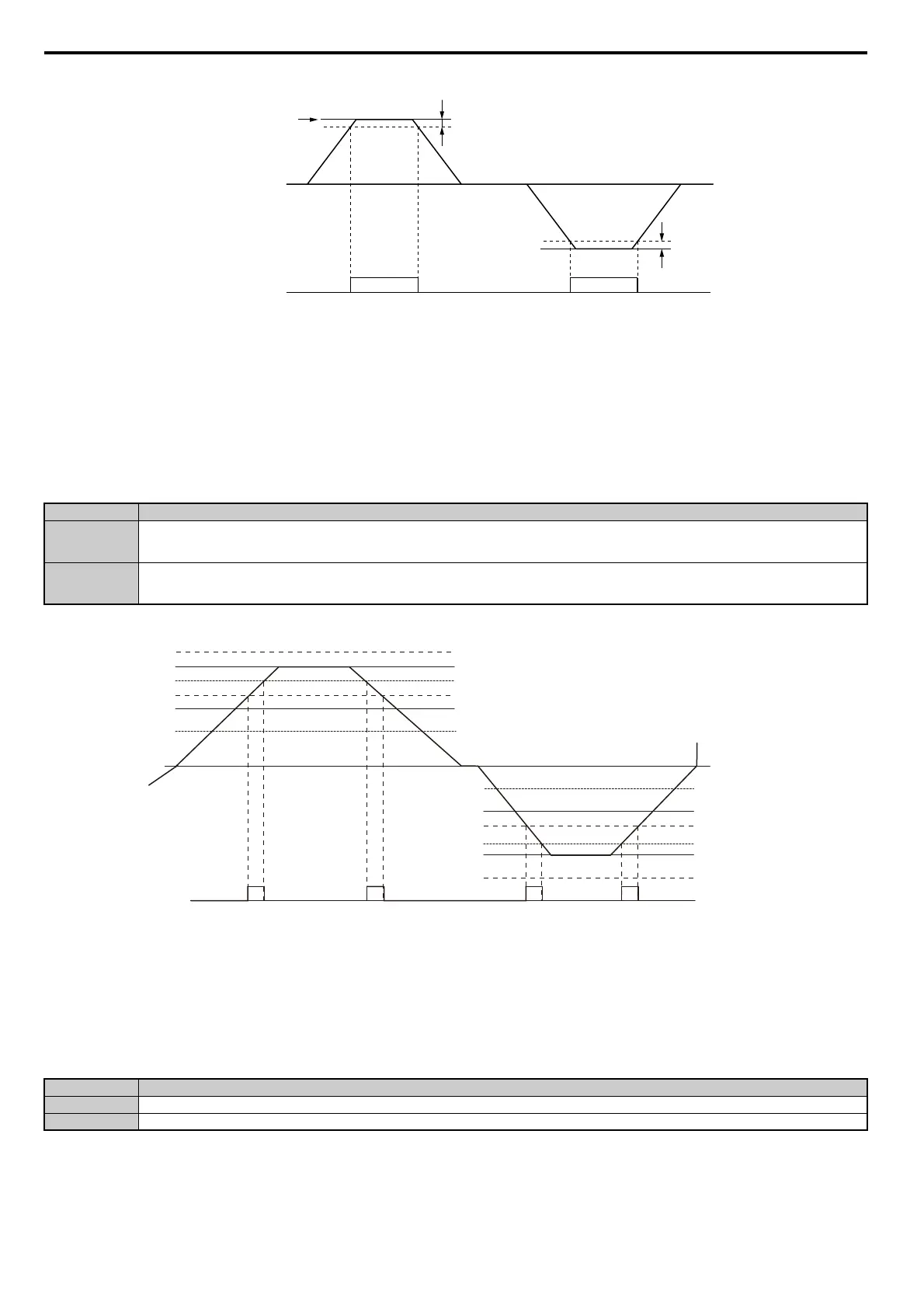

Figure 5.56
Figure 5.56 Speed Agree 1 Time Chart
Refer to L4-01, L4-02: Speed Agreement Detection Level and Detection Width on page 223 for more details.
Setting 3: User-set speed agree 1 (f
ref
/f
set
Agree 1)
Output terminal closes when both conditions below are met.
• The output frequency (or the motor speed when using CLV or CLV/PM) is within the range of the speed agreement
detection level (L4-01) plus or minus the speed agreement detection width (L4-02).
• The output frequency (or the motor speed when using CLV or CLV/PM) is within the range of the frequency reference
plus or minus the speed agreement detection width (L4-02).
Note: Frequency detection works in both forward and reverse. The value of L4-01 is used as the detection level for both directions.
Figure 5.57
Figure 5.57 User Set Speed Agree 1 Time Chart
Refer to L4-01, L4-02: Speed Agreement Detection Level and Detection Width on page 223 for more instructions.
Setting 4: Frequency Detection 1
Output opens when the output frequency or motor speed (CLV, CLV/PM) rises above the detection level set in L4-01 plus
the detection width set in L4-02. The terminal remains open until the output frequency or motor speed falls below the
level set in L4-01.
Note: Frequency detection works in both forward and reverse. The value of L4-01 is used as the detection level for both directions.
Status Description
Open
One of the following conditions is true:
• Output frequency or motor speed is not within the range of L4-01 ±L4-02
• Output frequency or motor speed is not within the range of the frequency reference ±L4-02
Closed
Both of the following conditions are true:
• Output frequency or motor speed is within the range of L4-01 ±L4-02
• Output frequency or motor speed is within the range of the frequency reference ±L4-02
Status Description
Open Output frequency or motor speed exceeded L4-01 + L4-02.
Closed Output frequency or motor speed is below L4-01 or has not exceeded L4-01 + L4-02.
L4-02
L4-02
Frequency
reference
Speed agree 1
ON
OFF
Output Frequency
or Motor Speed
Frequency reference
Frequency reference
+ L4-02
Frequency reference– L4-02
L4-01
L4-01
+ L4-02
L4-01– L4-02
Frequency reference
Frequency reference
+ L4-02
Frequency reference– L4-02
–L4-01
–L4-01
+ L4-02
–L4-01– L4-02
During
Forward
During Reverse
Output frequency
0 Hz
OFF OFF
OFF
ON ON
ON
ON
Output frequency
User Set
Speed Agree 1
