4.3 The Drive and Programming Modes
78 YASKAWA ELECTRIC SIEP C710616 30B YASKAWA AC Drive T1000A Technical Manual
n Drive Mode Details
The following actions are possible in the Drive Mode:
• Run and stop the drive
• Monitor the operation status of the drive (frequency reference, output frequency, output current, output voltage, etc.)
• View information on an alarm
• View a history of alarms that have occurred

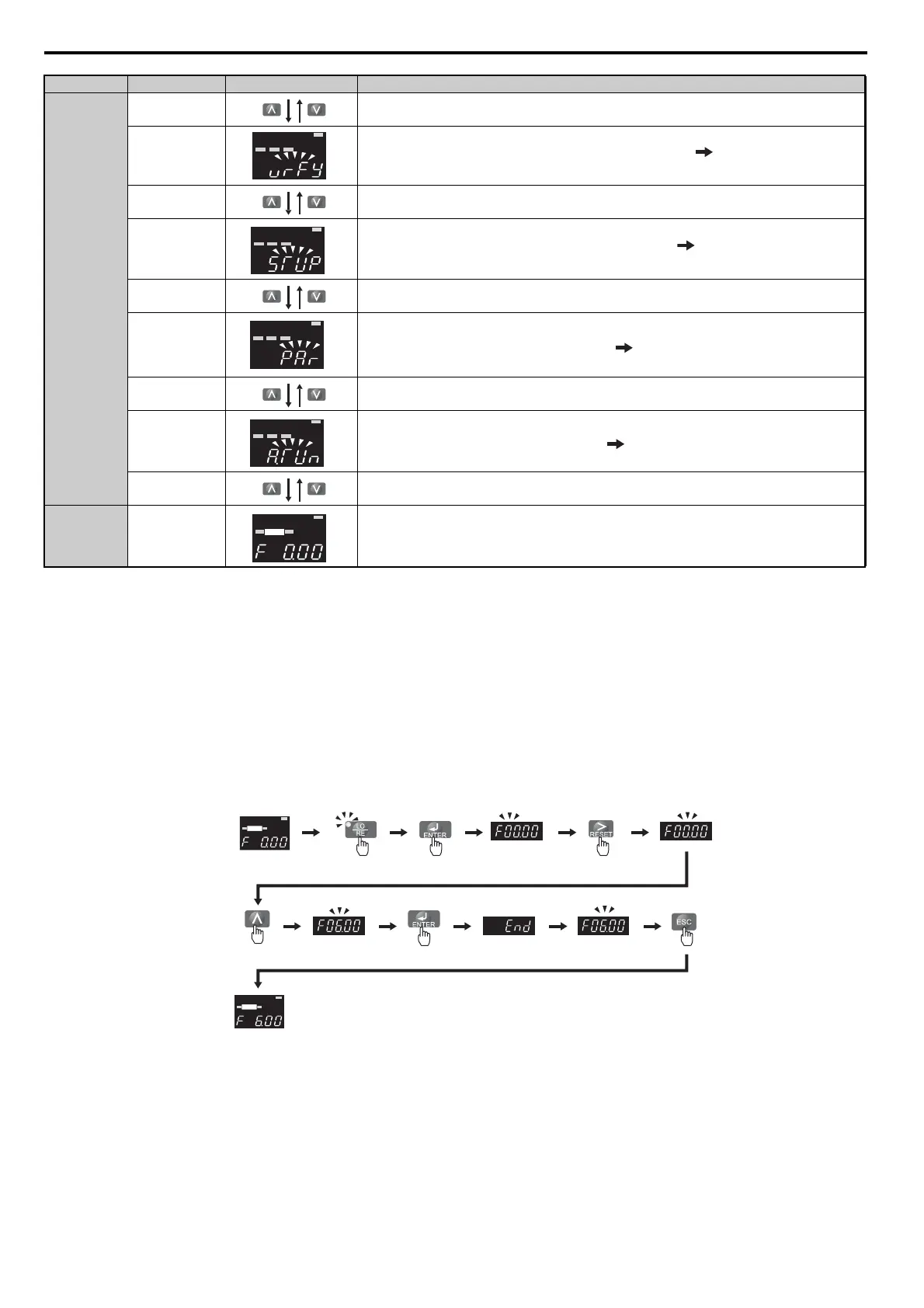

Figure 4.5 illustrates how to change the frequency reference from F 0.00 (0 Hz) to F 6.00 (6 Hz) while in the Drive
Mode. This example assumes the drive is set to LOCAL.
Figure 4.5
Figure 4.5 Setting the Frequency Reference while in the Drive Mode
Note: The drive will not accept a change to the frequency reference until the ENTER key is pressed after the frequency reference is
entered. This feature prevents accidental setting of the frequency reference. To have the drive accept changes to the frequency
reference as soon as changes are made without requiring the ENTER key, set o2-05 to 1.
Programming
Mode
Verify Menu
Lists all parameters that have been edited or changed from default settings. Refer to Verifying Parameter
Changes: Verify Menu on page 79.
Setup Group
A select list of parameters necessary to get the drive operating quickly. Refer to Using the Setup Group on
page 80.
Parameter Setting
Mode
Allows the user to access and edit all parameter settings. Refer to Parameter List on page 363.
Auto-Tuning Mode
Motor parameters are calculated and set automatically. Refer to Auto-Tuning on page 87.
Drive Mode Frequency Reference Returns to the frequency reference display screen.
Mode Contents Operator Display Description
ALM
DIGITAL OPERATOR JVOP-182
REV DRV FOUT
ALM
DIGITAL OPERATOR JVOP-182
REV DRV FOUT
ALM
DIGITAL OPERATOR JVOP-182
REV DRV FOUT
ALM
DIGITAL OPERATOR JVOP-182
REV DRV FOUT
ALM
DIGITAL OPERATOR JVOP-182
REV DRV FOUT
DRV
ALM
DIGITAL OPERATOR JVOP-182
REV DRV FOUT
DRV
ALM
DIGITAL OPERATOR JVOP-182
REV DRV FOUT
DRV
Frequency reference
display at power up
Press to select LOCAL
Press until the frequency
reference becomes 6 Hz
Press to select the
digit to the right
To Next Page
