Zebra DS6878 - Multicode Mode Concatenation

To Next Page

To Previous Page

User Preferences & Miscellaneous Digital Scanner Options 5 - 43

Multicode Mode Concatenation

Parameter # 717

Enable this parameter to transmit multiple decoded bar codes, as specified by the Multicode Expression, as

one bar code. Use the Multicode Concatenation Symbology parameter to specify how the concatenated bar

codes transmit.

Disable this to transmit decoded bar codes separately.

NOTE When using Multicode Mode Concatenation, disable Transmit Code ID Character on page 5-47 and check

digits.

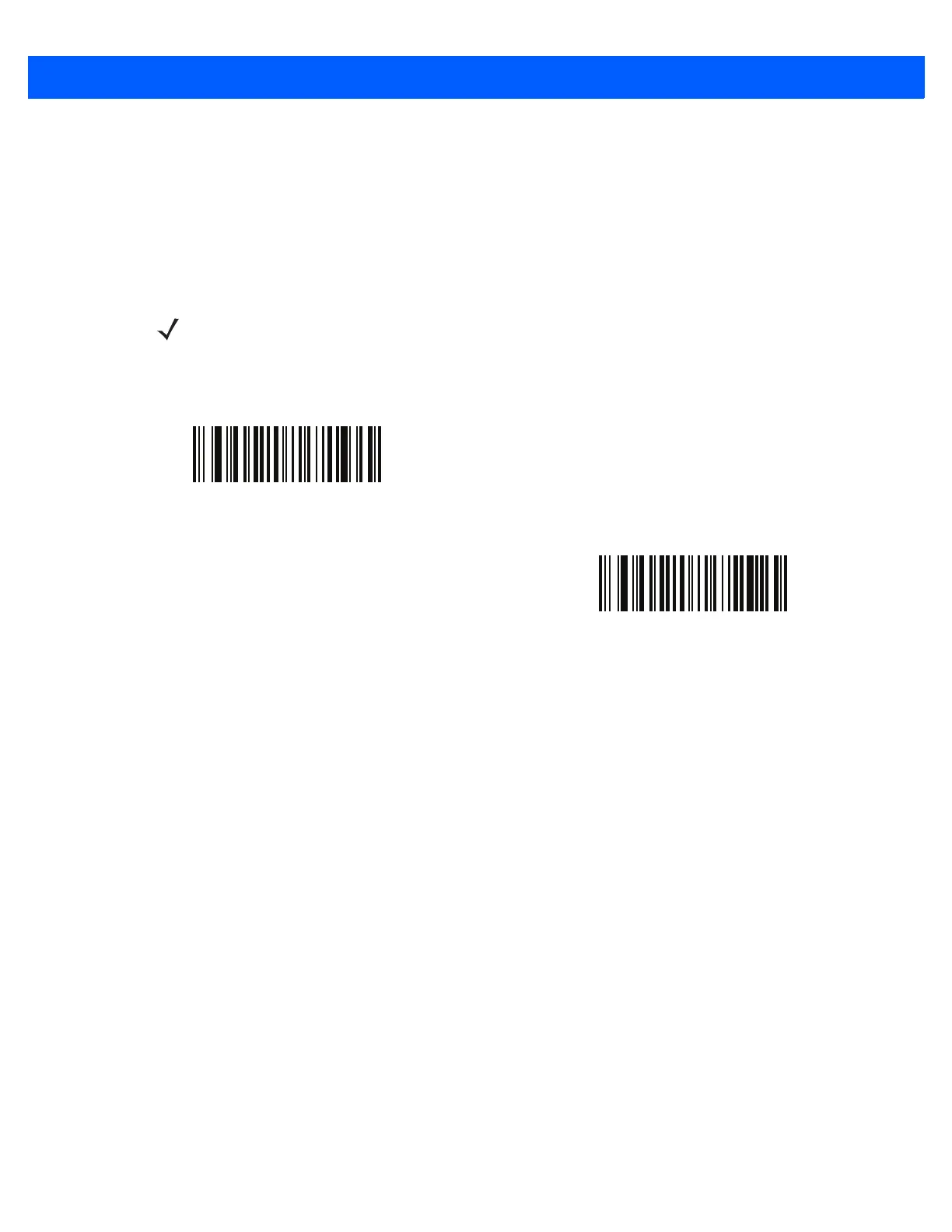

Enable Multicode Mode Concatenation

(1)

*Disable Multicode Mode Concatenation

(0)
