Inverse 1D

Parameter # 586

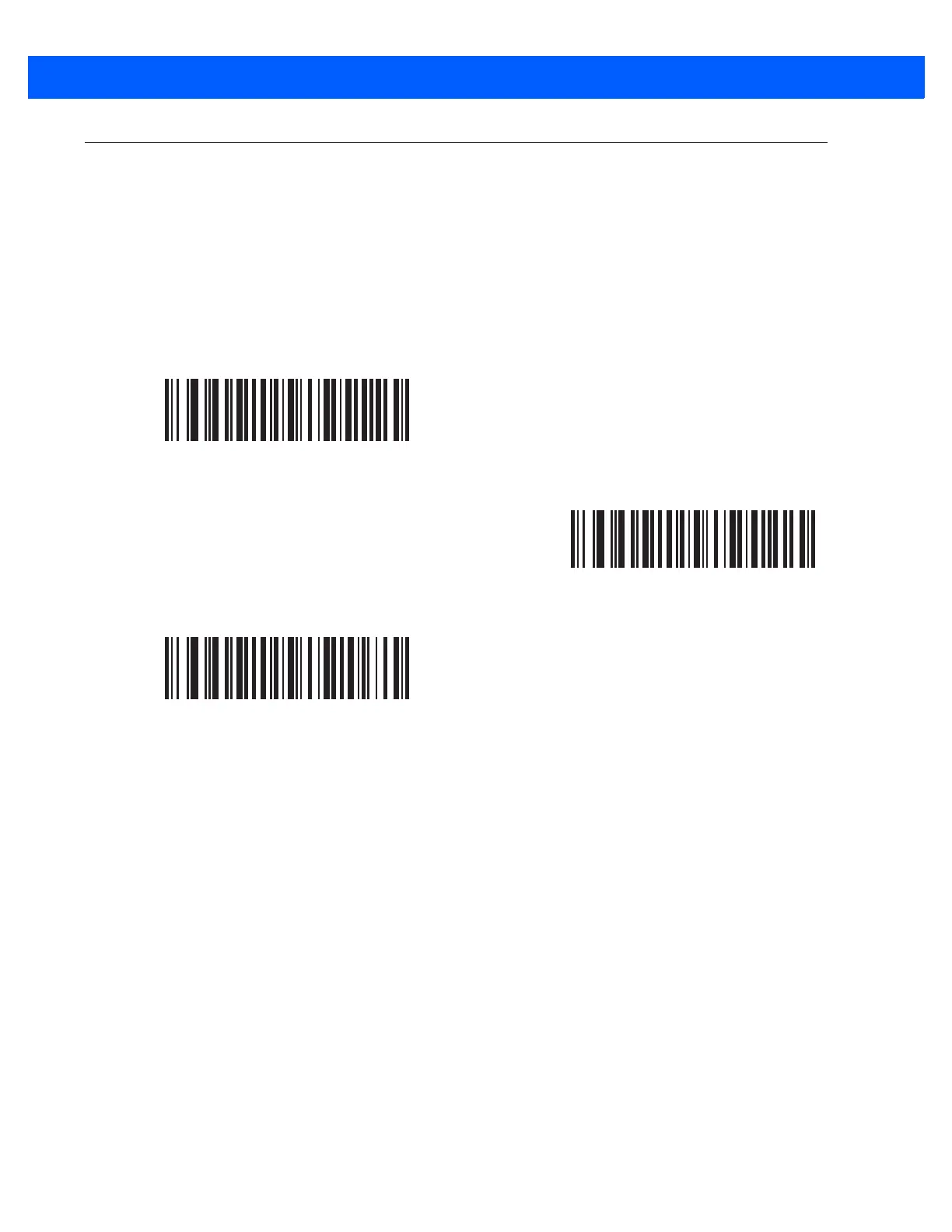

This parameter sets the 1D inverse decoder setting. Options are:

•

Regular Only - the digital scanner decodes regular 1D bar codes only.

•

Inverse Only - the digital scanner decodes inverse 1D bar codes only.

•

Inverse Autodetect - the digital scanner decodes both regular and inverse 1D bar codes.

*Regular

(0)

Inverse Only

(1)

Inverse Autodetect

(2)
