15 - 8 DS6878 Product Reference Guide

UPC/EAN

Enable/Disable UPC-A

Parameter # 1

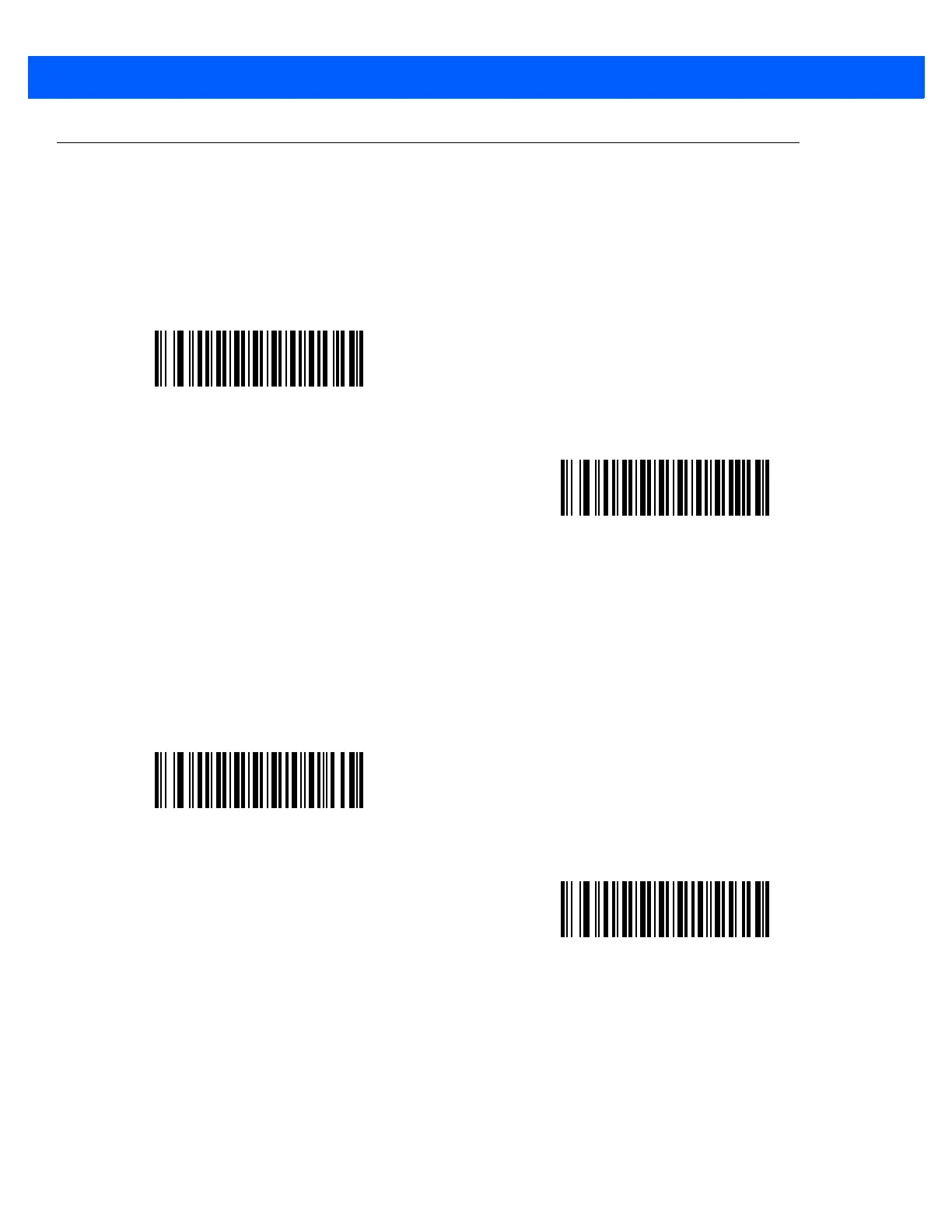

To enable or disable UPC-A, scan the appropriate bar code below.

Enable/Disable UPC-E

Parameter # 2

To enable or disable UPC-E, scan the appropriate bar code below.

*Enable UPC-A

(1)

Disable UPC-A

(0)

*Enable UPC-E

(1)

Disable UPC-E

(0)
