Getting Started 1 - 13
3. Ensure the desk/wall mount converter knob is in the position shown in Figure 1-11.

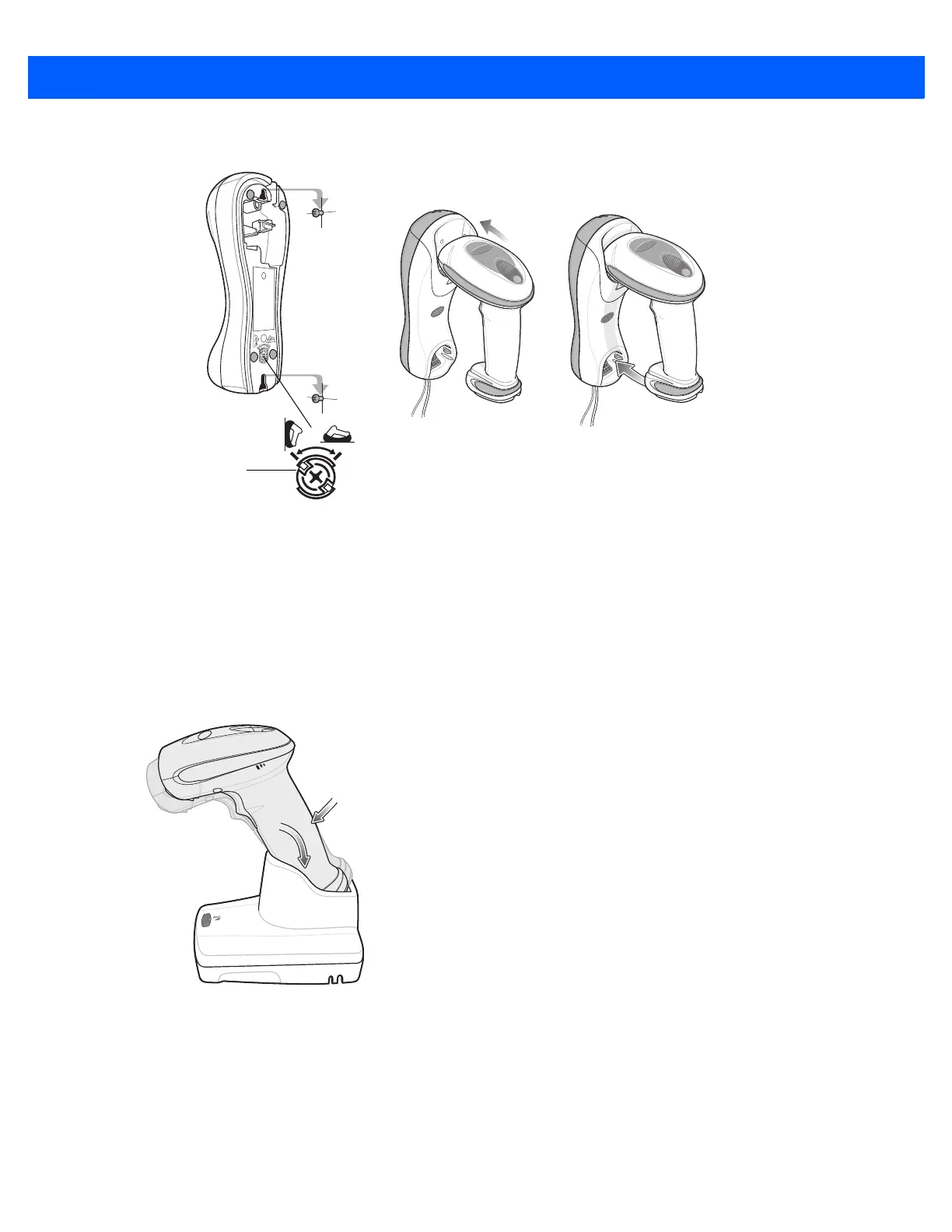

Figure 1-11 Vertical Mount - Inserting the Digital Scanner in the Cradle
Inserting/Removing Digital Scanner in the CR0078-P Cradle
To insert the scanner in the cradle:
1. Insert the scanner by placing the bottom of the scanner, at a slight forward angle, into the CR0078-P
cradle.
2. Push the handle back and down until it clicks, engaging the contacts of the scanner and cradle.
Figure 1-12 Inserting the Digital Scanner in the Cradle
Desk/Wall
Mount
Converter Knob
2
1
Click
