Z8 Microcontrollers
ZiLOG Addressing Modes
UM001601-0803 11-3
11.3 Z8 INDIRECT REGISTER ADDRESSING (IR)
In the Indirect Register Addressing Mode, the contents of the
specified register are equivalent to the address of the operand
(Figures 11-3 and 11-4).
Depending upon the instruction selected, the specified register
contents points to a Register, Program Memory, or an External
Data Memory location.
When accessing program memory or External Data Memory,
register pairs or Working Register pairs are used to hold the 16-
bit addresses.

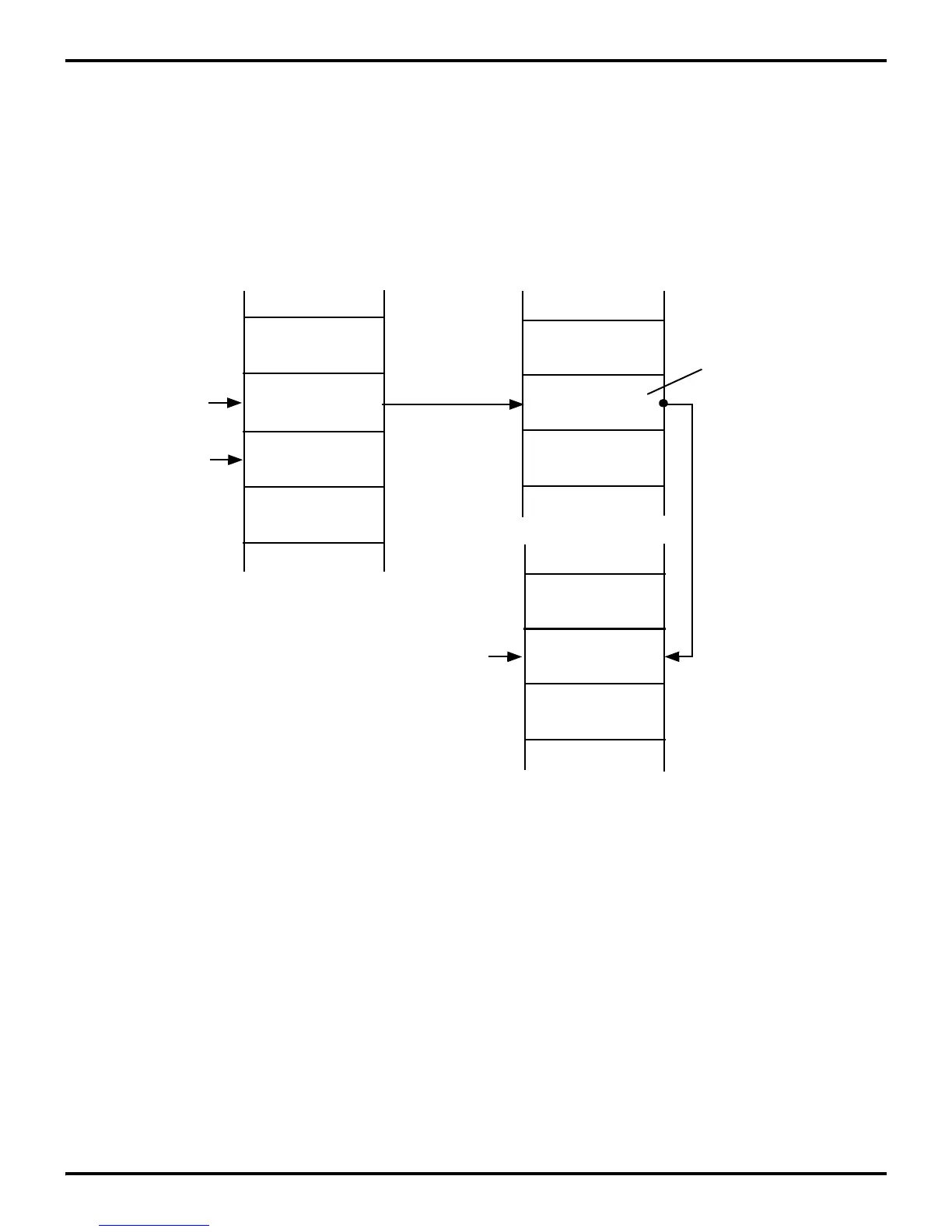

Figure 11-3. 4-Bit Register Addressing
Op Code
One Operand
Register File
Operand
Program Memory
Points to one
8-Bit Register
Value Used in
Address of Operand
Instruction
(Example)
File Address
Address
dst
Points to
Register of
Operand
Register in
Register File
Instruction
Execution
Used By Instruction
To Next Page
