GDP-32
II
INSTRUCTION MANUAL
May 2002 Section 9, Page 6

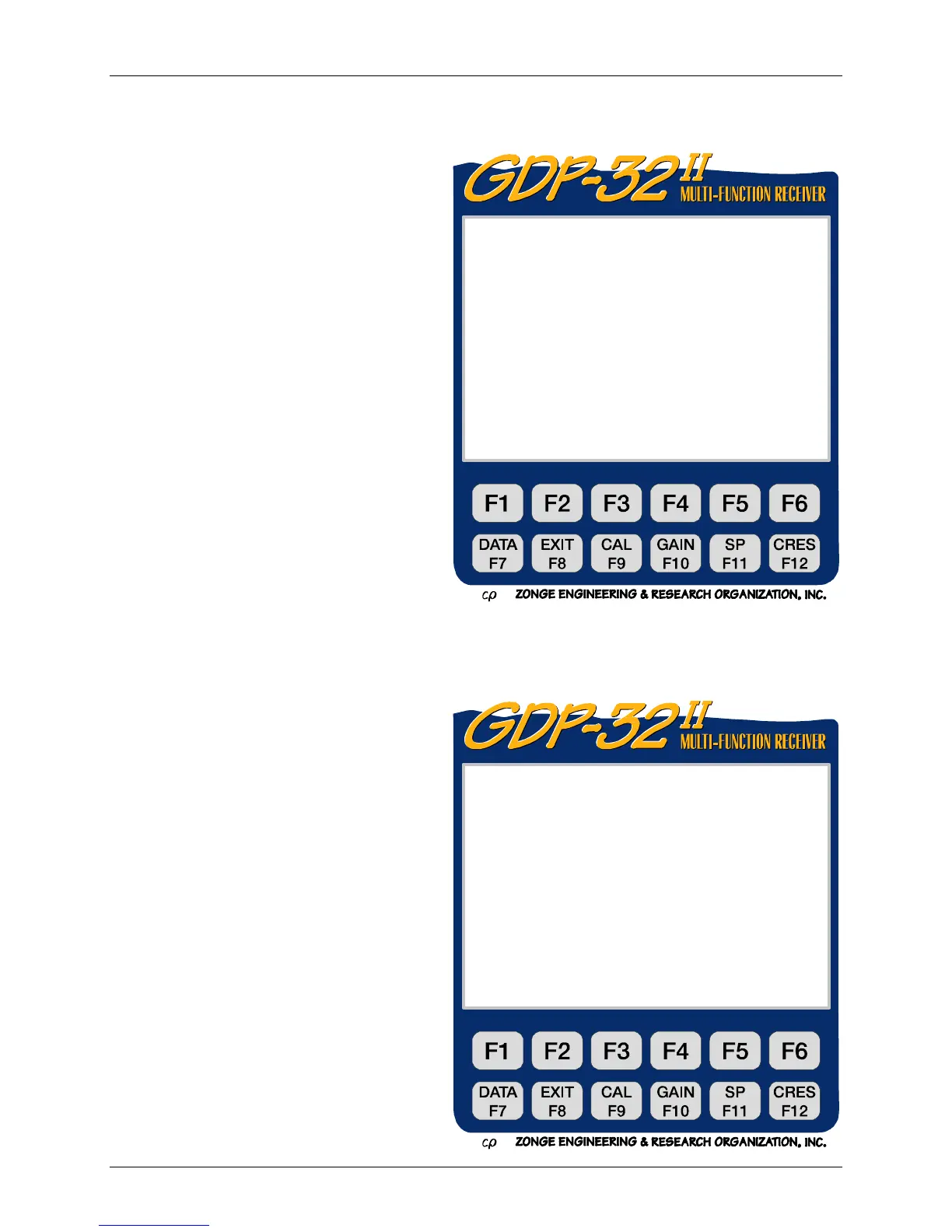

SCREEN 2 - OPERATOR INFORMATION SCREEN
Select a parameter or fill in the appropriate
information for each of the user
programmable fields as described in
Section 5 – Accessing Programs.
If Gradient array is selected, the Y-
coordinate of the transmitter dipole (Ay)
will be displayed in place of the line
designator.
SCREEN 3 - CHANNEL PARAMETERS SCREEN
Set the channels displayed to ON, OFF
or Ref as needed. For more information
refer to Section 5 – Accessing Programs.
CH
Selections are ON, OFF, or Ref. Ref is
used mainly for Lab Rock (core sample)
measurements.
0210 TDIP0613 11.8 08 Jan 18 15:04:01
OPER SMITH TX ID 1 A-SP 100
JOB 94001 LINE 1 N SPREAD 1
CONTINUE: Next Menu, ESCAPE: Prev Menu
0210 TDIP0613 11.8 08 Jan 18 15:04:01
OPER SMITH TX ID 1 A-SP 100
JOB 94001 LINE 1 N SPREAD 1
CH N
1 ON 1
2 ON 2
3 OFF
4 OFF
Enter channel parameters
Ch Info
