TIME DOMAIN INDUCED POLARIZATION (TDIP)
Section 9, Page 7 May 2002
SCREEN 4 – DATA ACQUISITION SCREEN
Primary survey settings are displayed here once the initial parameters and channels have been
set.

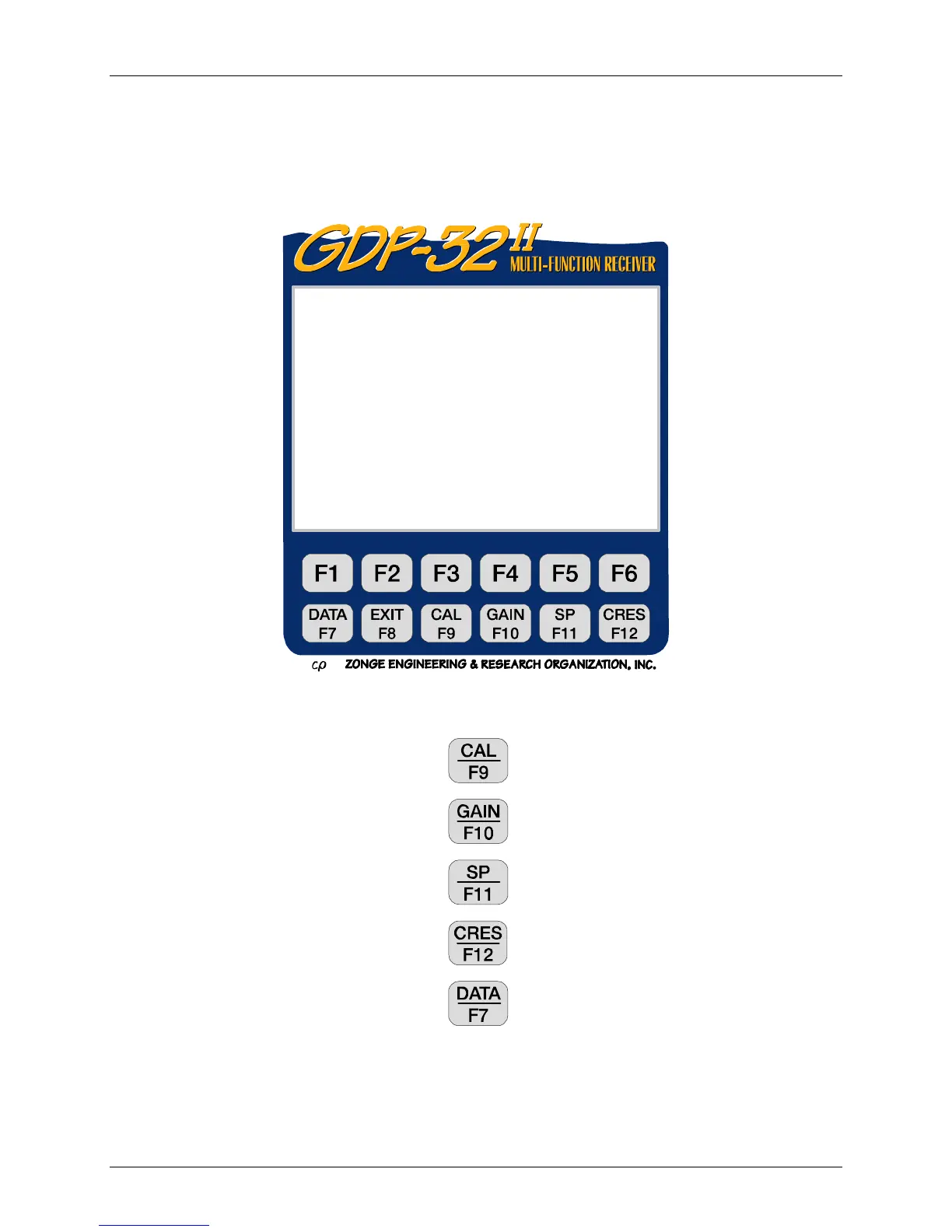

The following routines are accessed from this screen:
Calibration or System Check
Gain Setting and Stack Count
Bucking Out Self Potential
Measuring Contact Resistance
Reviewing Data
Refer to Section 5 – Accessing Programs for more information on Survey Program Screen.
Refer to Section 6 – Receiver Setup for information on setting up the GDP-32
II
receiver prior to
gathering data.
0210 TDIP0613 11.7 08 Jan 18 15:04:21
Survey D-D
Tx 1 Rx 3 N OUT
.125 Hz 4 Cycles Tx Curr 1
CH N G0 G1 G2 Atn SP GGGA
1 ON 1 1 1 1 OUT 0.00 000O
2 ON 2 1 1 1 OUT 0.00 000O
3 OFF
4 OFF
CONT-Set gains, ESC-Prev Menu
