COMPLEX RESISTIVITY & HACSAMT PROGRAM
Section 10, Page 21 January 2003

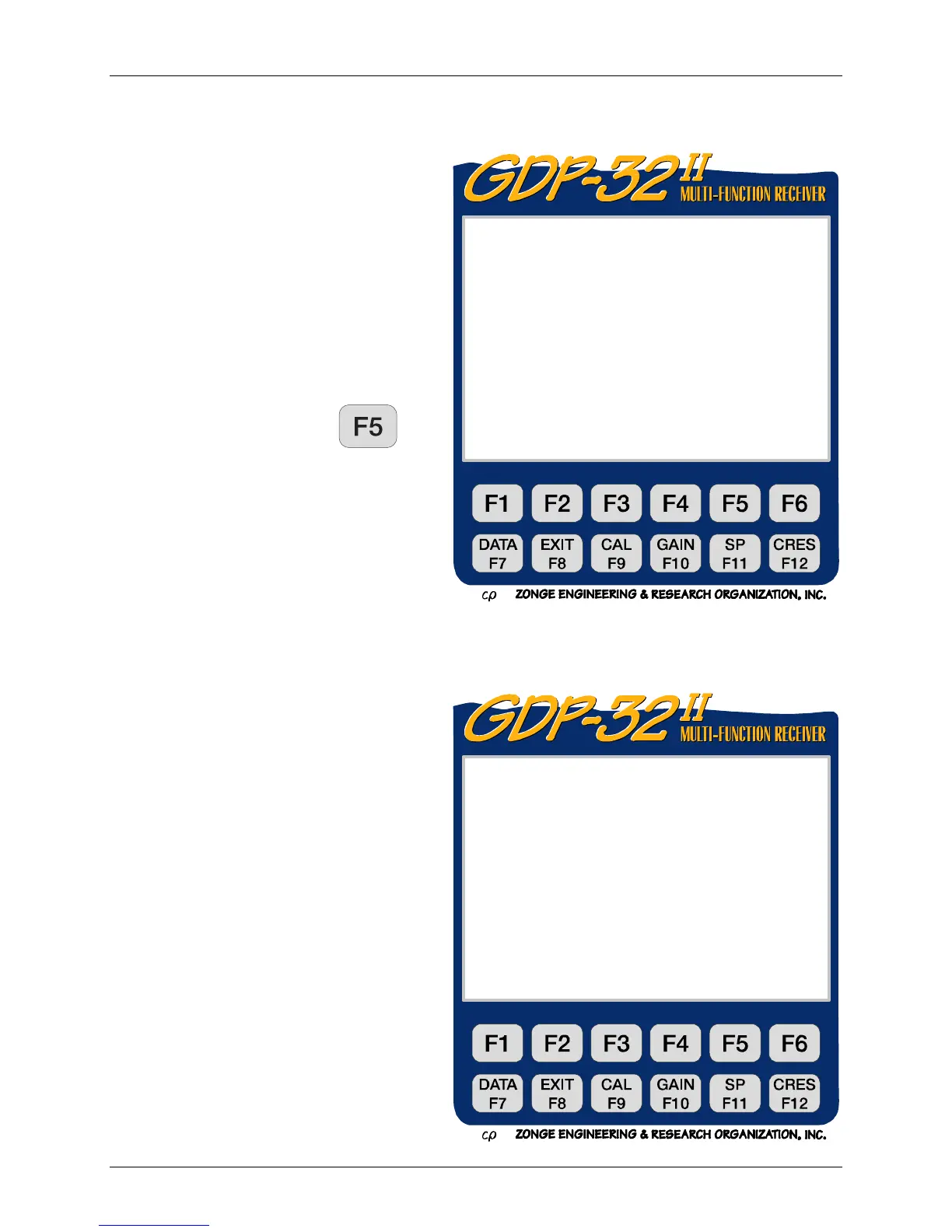

10.9 SAMPLE MENUS FOR "LABROX" OPTION
MENU 1:
Shunt is the value of the current
measuring resistor (in the decade resistance
box - see the diagrams at the end of this
chapter) that is adjusted to be close to the
resistance of the rock sample being
measured. This parameter can also be
entered in Menu 4 under L/A
.
MENU 2:
This is the same menu as in the normal CR
option.
CR 0535 15 Mar 98 08:53:40
Survey type: LABROX
Array type: Core Sample
Shunt: 100.0 KΩ
Gain Mode: Noisy Units: Meters
CONTINUE: Next menu, ESCAPE: Prev. menu
CR 0535 15 Mar 98 08:53:45
OPER 1 TX ID 1 A-SP 100
JOB 89001 LINE 1.0 N SPREAD 1
CONTINUE: Next menu, ESCAPE: Prev. menu
