QUICK START
Section 4, Page 13 October 2003

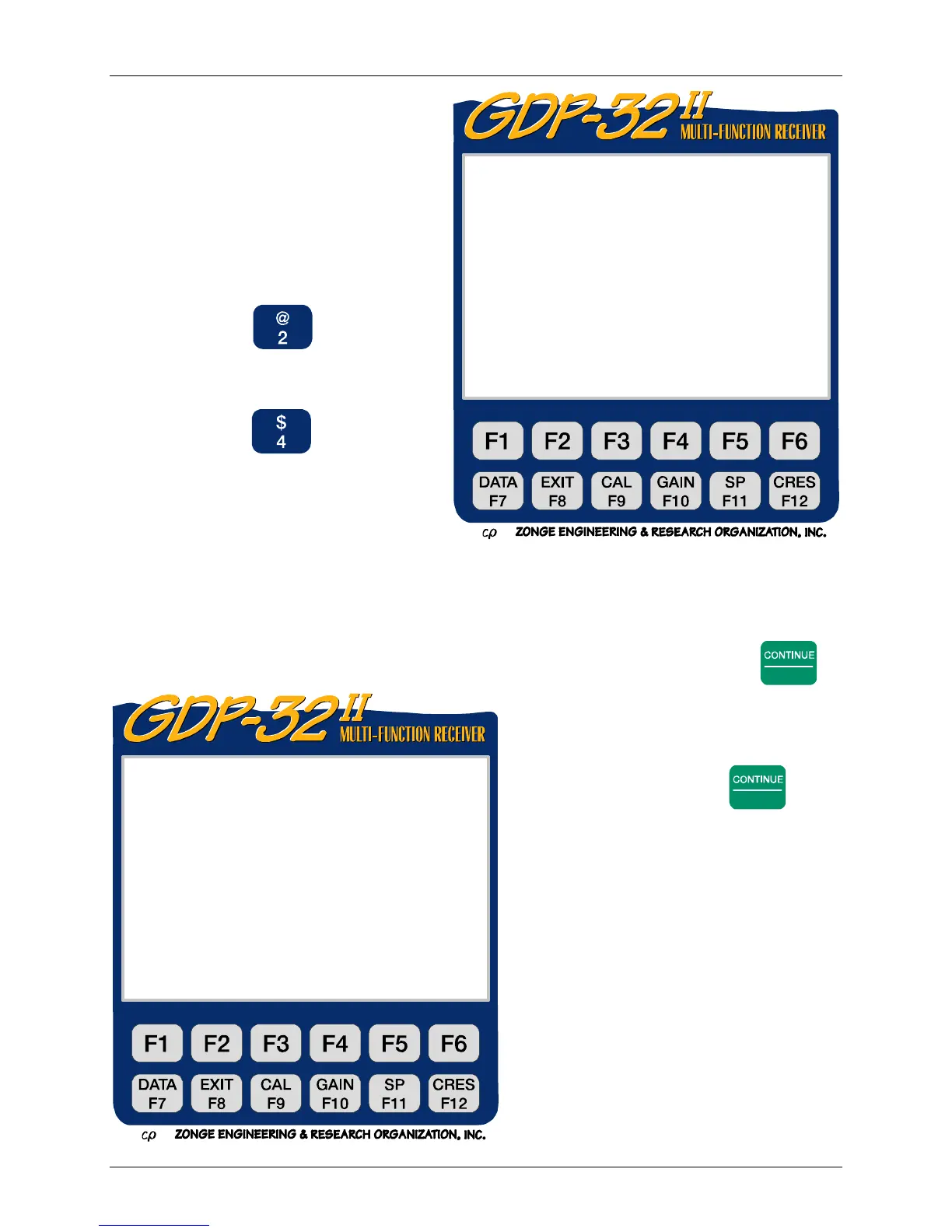

4.6 SYNCHRONIZATION
The Utility program guides the user
through a set of instructions to
automatically set up the GDP-32
II
for a
synchronization check.
NOTE: You must have a good calibrate in
FDCALS, since the RPIP program is used
in this synchronization routine.
1. Press
to enter the
“Utilities” program from
the Main Program Menu.
2. Press to select the
“Synchronize to XMT”
program.
3. Follow the instructions
displayed:
4. When the crystals in the GDP
and XMT have been on for an
hour or more, press
Enter
to
proceed to the next set of
instructions.
5. Follow the instructions on the
screen. Press
Enter
when
everything is connected
properly.
ZONGE ENGINEERING 11.8 04 Jan 18 16:38:23
GDP32II320
Turn on XMT and GDP. Then wait 1 hour.
Set XMT to 1 Hz
and 100% DUTY CYCLE.
ZONGE ENGINEERING 11.8 04 Jan 18 16:38:37
GDP32II320
Connect sync cable between XMT and GDP.
Connect calibrate output of XMT to CH 2
(RED to RED, BLACK to BLACK)
Connect CAL output of GDP to CH 1
(Cal+ to RED, Cal- to BLACK)
Set meter switches in lid of GDP to
monitor Channels 1 and 2.
CONTINUE: Next menu, ESCAPE: Prev. menu
