12.15 FIELD CONFIGURATIONS

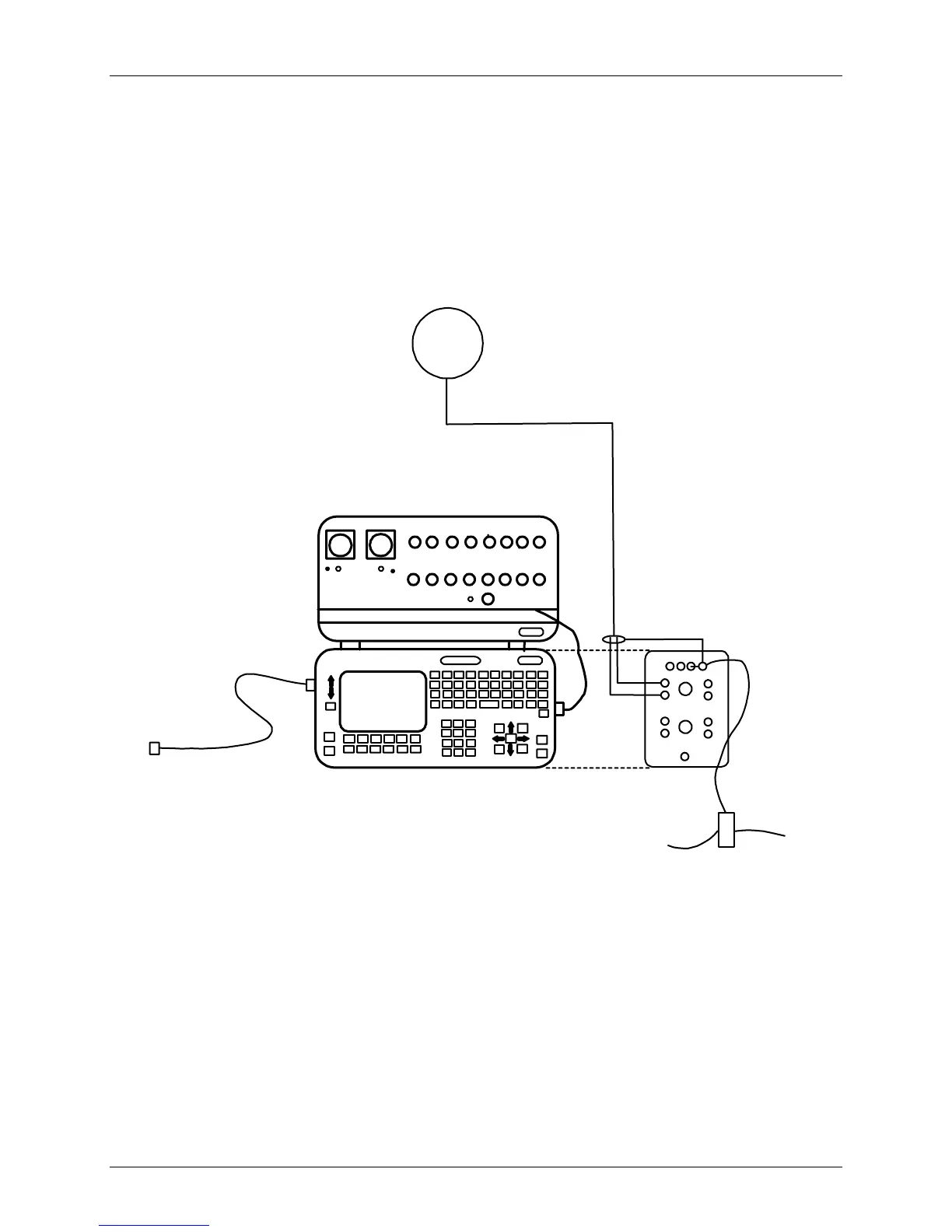

TEM RECEIVER SETUP WITH Z-AXIS COIL
Geophysical Data Processor
GDP-32
II
Porous Pot
Electrode
PPE/1
Reference
Electrode
(Optional)
Side panel
GDP-32
II
Shield connected to
ground (COM)
TEM/3
ANALOG I/O
XMT/32 - CN/6
Transmitter Control
Cable to GGT or
ZT Transmitters
(optional)
TEM/3-OT
Hz
