MAINTENANCE
Section 17, Page 29 May 2002
17.8 PINOUTS FOR CONNECTORS

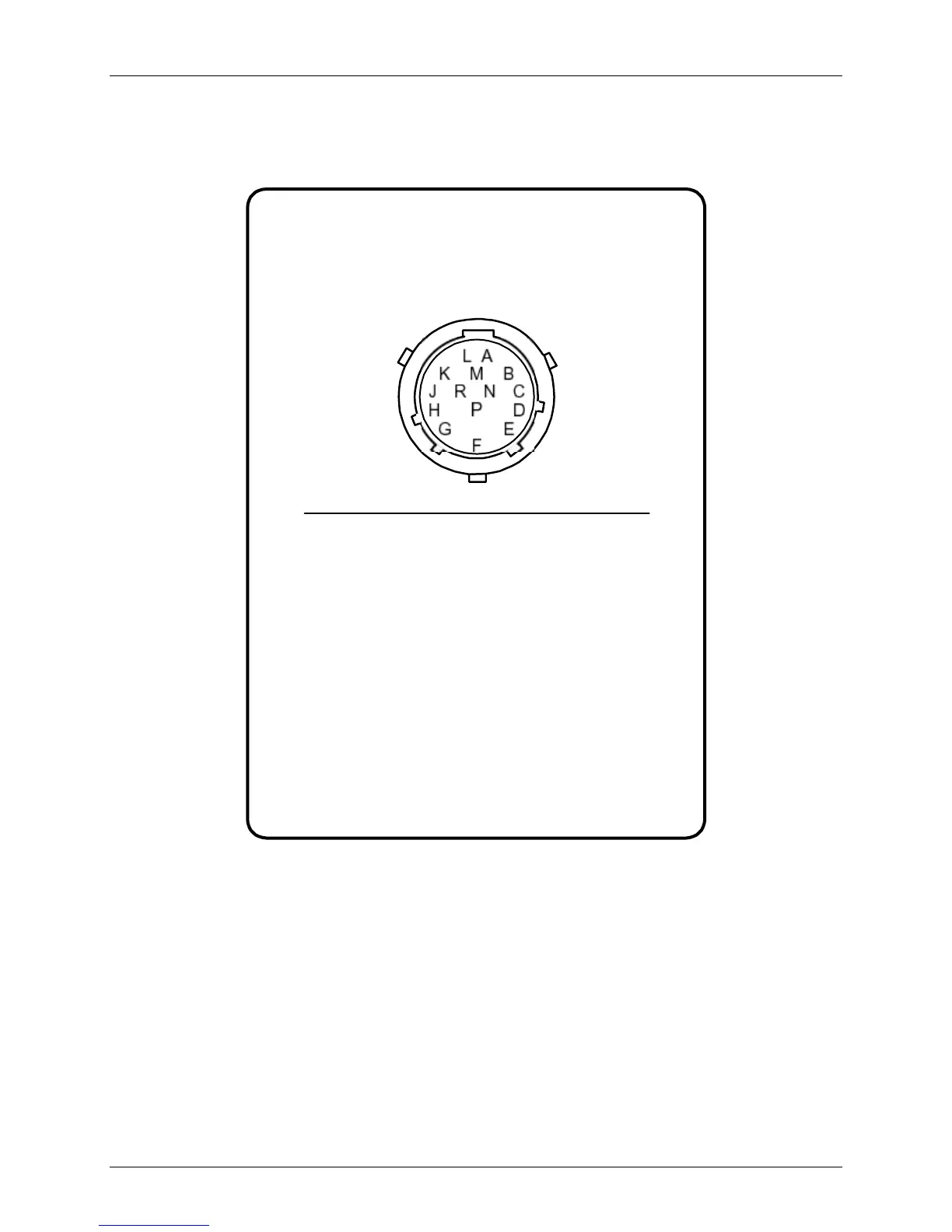

Figure 17.5 Transmitter I/O Connector
Transmitter I/O Connector
panel mount connector MS3II2EI4-I5P
pin view, male view
cable connector MS3II6FI4-I5S
(solder view, female pins)
PIN FUNCTION
A RESET RETURN
B COMMON
C TIME DOMAIN
D PERIOD
E (NOT USED)
F 5 MHz CLOCK
G (NOT USED)
H (NOT USED)
J RESET
K DUTY CYCLE
L INTERNAL RESET
M TRANSMITTER CONTROL TYPE
N COMMON
P 5 MHz SHIELD
R CONTROLLER TYPE
L A
K M B
J R N C
H
P D
G E
F
