GDP-32
II
INSTRUCTION MANUAL
May 2002 Section 17, Page 30

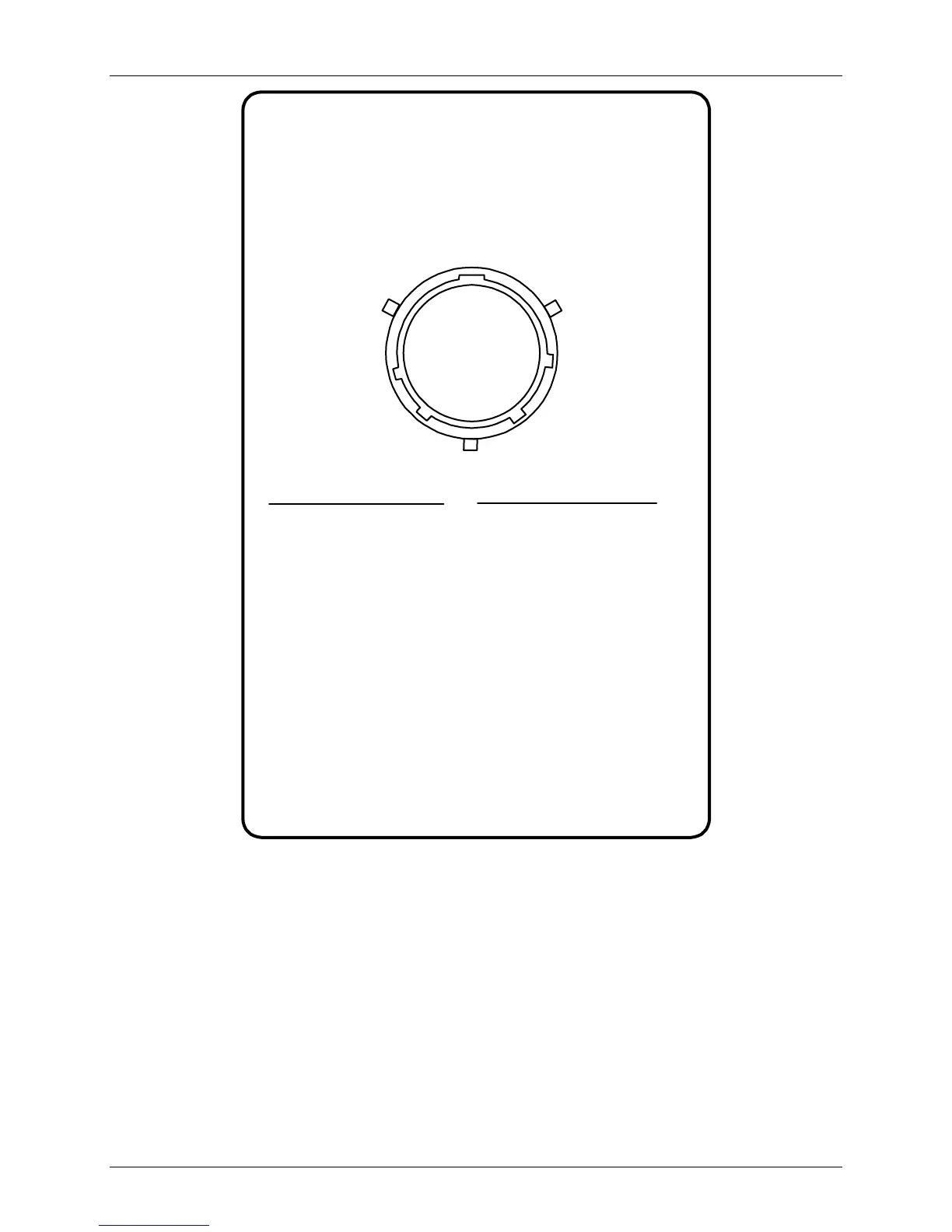

Figure 17.6 Parallel Connector
Parallel Connector
panel mount connector MS3II2E16-26P
pin view, male pins
cable connector MS3II6BI2-26S
(solder view, female pins)
PIN FUNCTION PIN FUNCTION
A SIG GND P SIG GND
B (NOT USED) R SIG GND
C SIG GND S SIG GND
D SIG GND T SIG GND
E (NOT USED U SIG GND
F DATA 7 V BUSY
G DATA STROBE W DATA 6
H DATA 0 X DATA 5
J DATA I Y DATA 4
K DATA 2 Z SELECT
L DATA 3 a INITIALIZE
M (NOT USED) b N.C.
N FAULT c PAPER ERROR
ST
U
V
W
X
Y
Z
a
b
c
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
