Zonge GDP-32 - Page 377

MAINTENANCE
Section 17, Page 31 May 2002

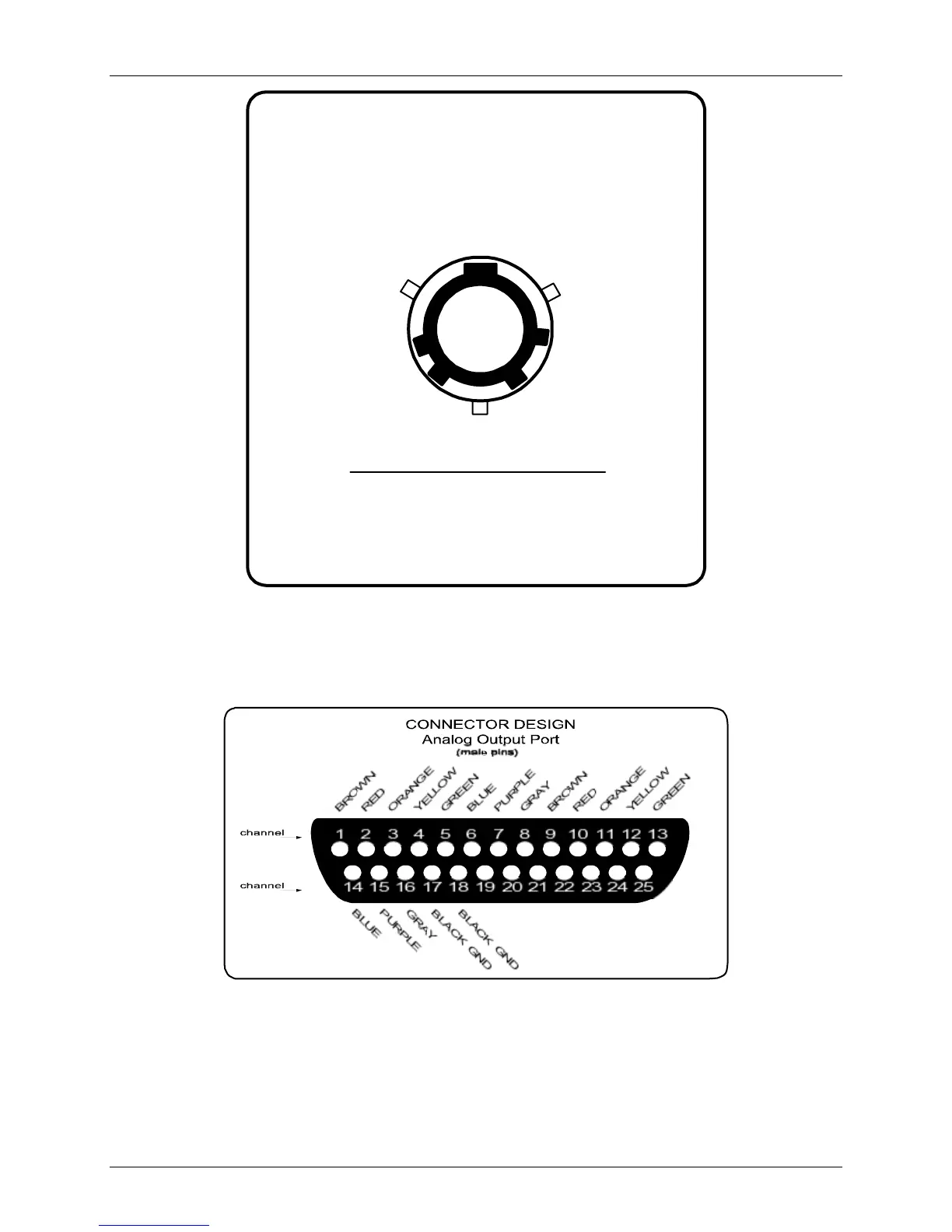

Figure 17.7 Battery Charge Connector
Figure 17.8 Analog Output Ports
A C
B
Battery Charge Connector
panel mount connector KPTO2EI2-3S
(socket view, female pins)
cable connector KPT O6BI2-3P
( solder view, male pins )
A POSITIVE
B NEGATIVE
C (NO CONNECTION)
