DATA, FILE AND PROGRAM TRANSFER
Section 7, Page 11 May 2002
7.5 CONFIGURING PORTS
SERIAL I/O PARAMETERS
Option 3 of the Data Mode Main Menu sets the protocols for transferring data to a computer via
the RS-232 serial port. The GDP-32
II
uses a standard XON, XOFF software handshake protocol.
For complete information on transferring data see Section 7.6 below.

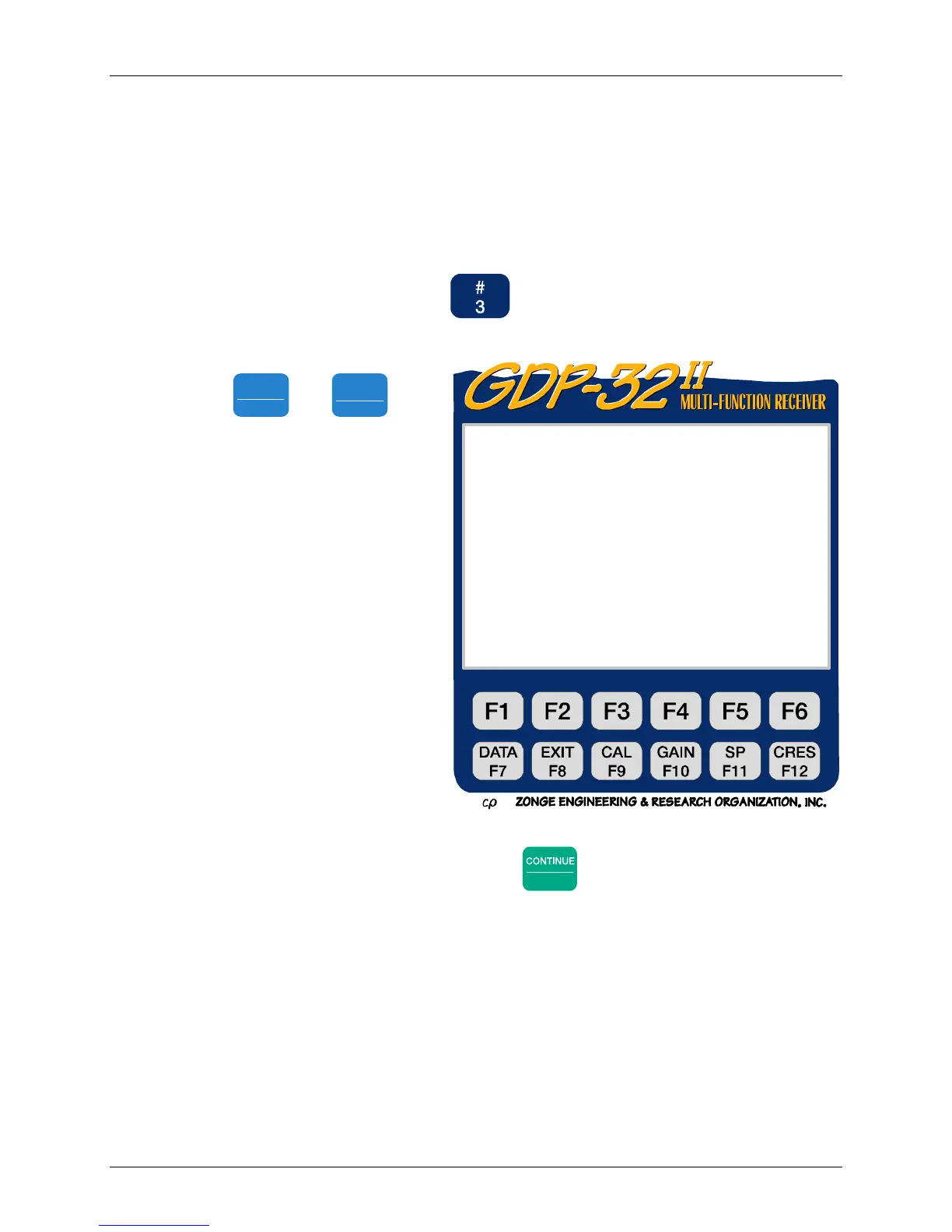

1. From the Main Data Menu, press
. The Configure Serial Port Options Menu
appears:
2. Use
SELECT UP
Home
and
SELECT DN
End
to set
the four parameters.
The default Baud Rate is
9600. Most computers
accept this transfer rate.
This transfer rate may need
to be decreased for some
modems. Available Baud
Rates range from 300 to
38,400.
The default Parity is NONE.
The GDP-32
II
also accepts
EVEN or ODD parities.
Data length default value is
8 bits.
Stop bits default is 1.
3. Once the parameters have been set, press
Enter
to return to the Data Mode Main
Menu.
ER 320 Main Menu
Current: Field Data Remaining:3388KB
Baud Rate : 9600
Parity : None
Data Length : 8
Stop Bits : 1
Press CONT when done
