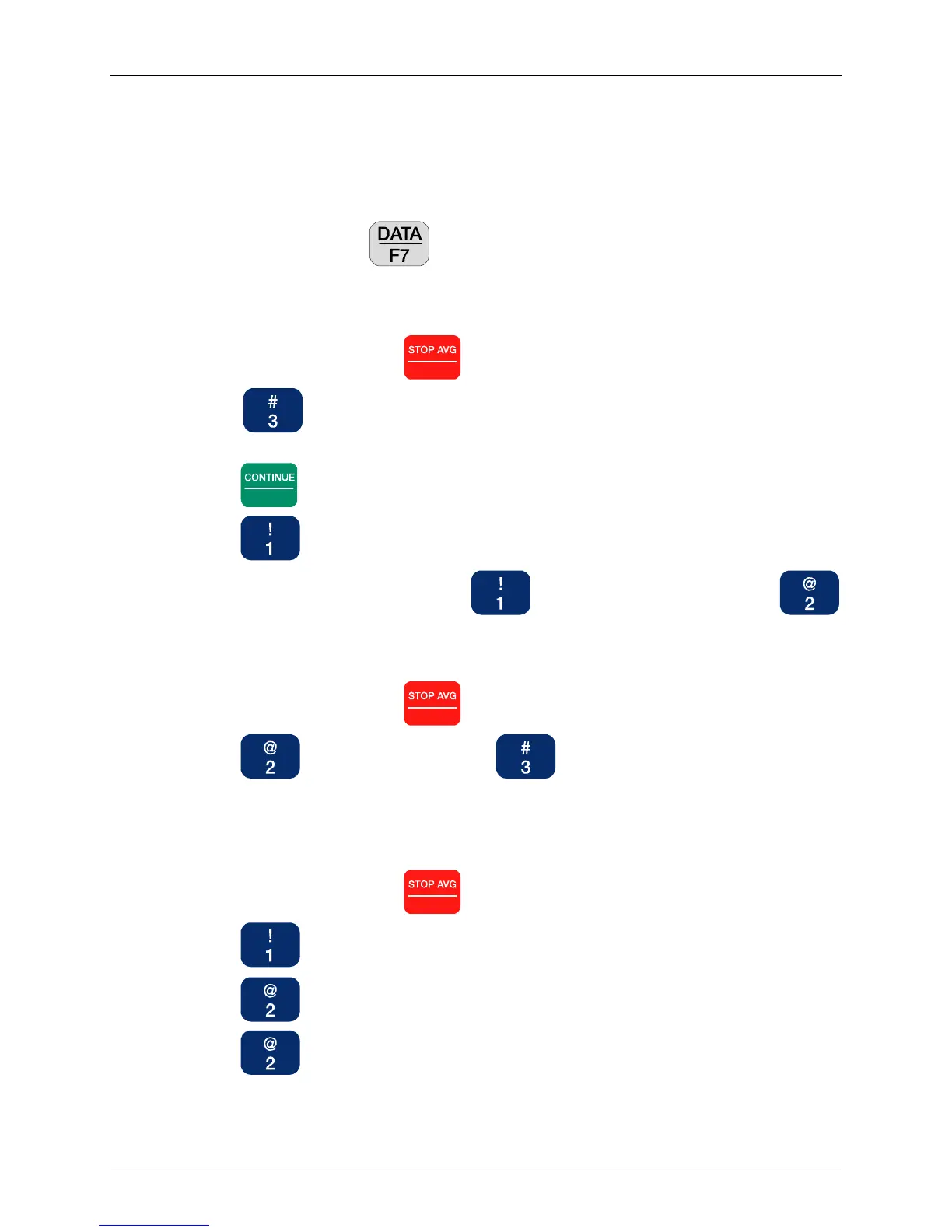

4.9 DATA TRANSFER TO A COMPUTER
1. Connect the cable from the Serial Port on the GDP to the RS-232 input on your
computer.
2. Open a data file in your computer by using HyperTerminal or other similar data
transfer or terminal program. Configure the program to capture data as text.
3. On the GDP-32
II
press to enter Data Mode.
4. At this point it may be necessary to configure the serial port.
CONFIGURE THE SERIAL PORT (if necessary)
1. While in Data Mode, press
Escape
twice to get to the cache/port configuration menu.
2. Press to configure the serial port (if necessary). Default values are: 9600
baud, no parity, 8 data bits, 1 stop bit.
3. Press
Enter
.
4. Press , “Access Cache”.
5. Access the desired cache (e.g. Press to access the Data cache. Press
to access the Frequency Domain calibration cache).
DUMP FIELD DATA
1. While in Data Mode, press
Escape
.
2. Press
to output all field data or to transfer selected blocks.
3. Close the data file on the remote computer and exit the transfer program. Check the
data files on the remote computer to verify the transfer.
TRANSFER CALIBRATION DATA
1. While in Data Mode, press
Escape
twice to get to the cache/port configuration menu.
2. Press , “Access Cache”.
3. Press to access the Frequency Domain calibration cache.
4. Press
to output the calibration data.
5. Close the data file on the remote computer and exit the transfer program. Check the
data files on the remote computer to verify the transfer.
