Zonge GDP-32 - Csamt Transmitter Setup

GDP-32
II
INSTRUCTION MANUAL
May 2002 Section 11, Page 24

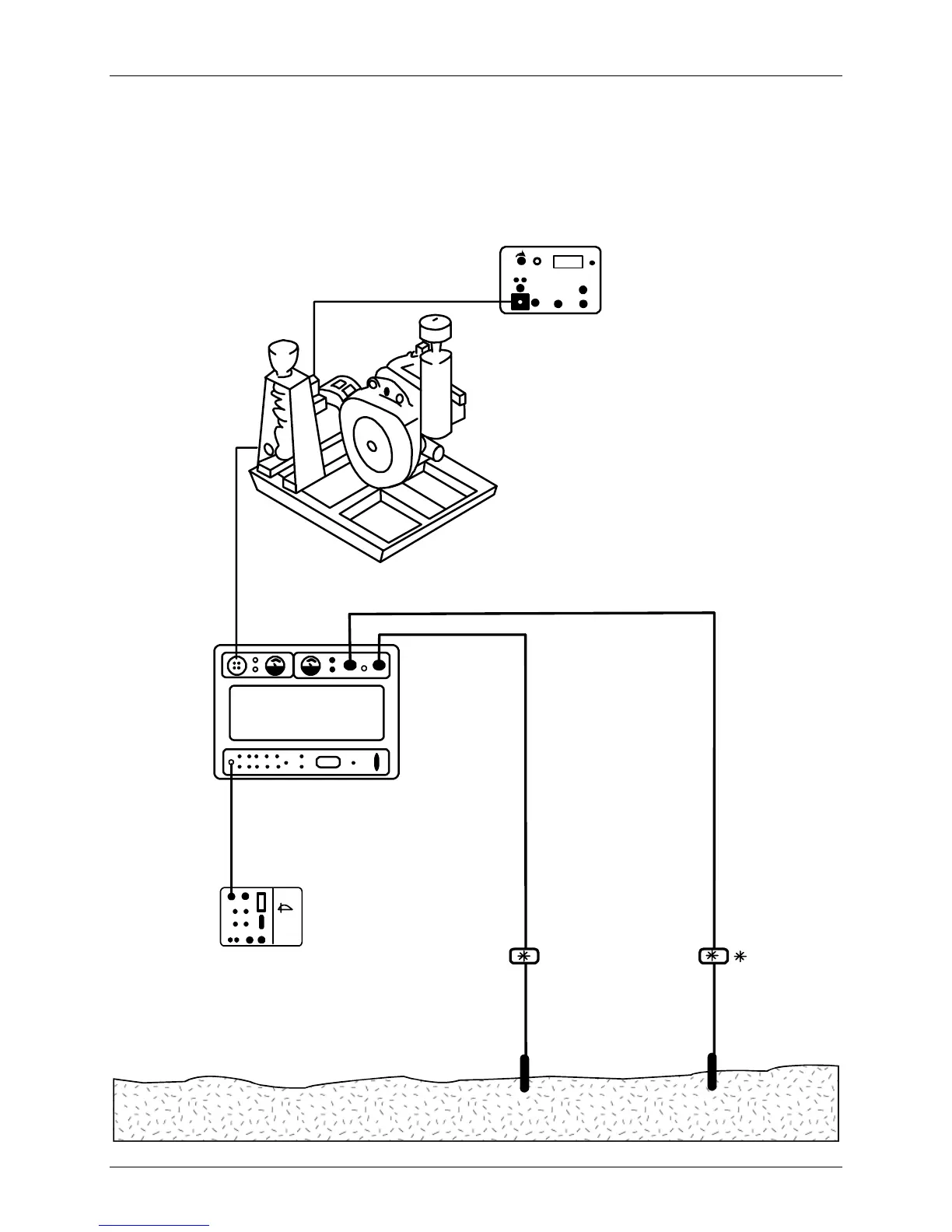

CSAMT TRANSMITTER SETUP
Voltage
Regulator
VR-I
VR-CN/6 Cable
Transmitter
GGT-30
XMT-32-CN/6 Cable
Aluminum foil or
stake electrodes
Wire from
BRI2W or
PR/I with
PW/I
Motor
Generator
ZMG-30
XMT-32 Transmitter
Controller
GGT-30-PW Cable
