Zonge GDP-32 - Transmitter Setup

GDP-32
II
INSTRUCTION MANUAL
May 2002 Section 9, Page 22
TRANSMITTER SETUP
VR-CN/6 Cable
Voltage
Regulator
VR-1
ETS-9/40
Switch Box
Motor
Generator
ZMG-30
ETS-IN/40
GGT-30-PW
Cable
Wire from
BRI2W or
PR/IW with PWI
XMT-32-CN/6 Cable
Transmitter
Controller
XMT-32
Aluminum foil or
stake electrodes

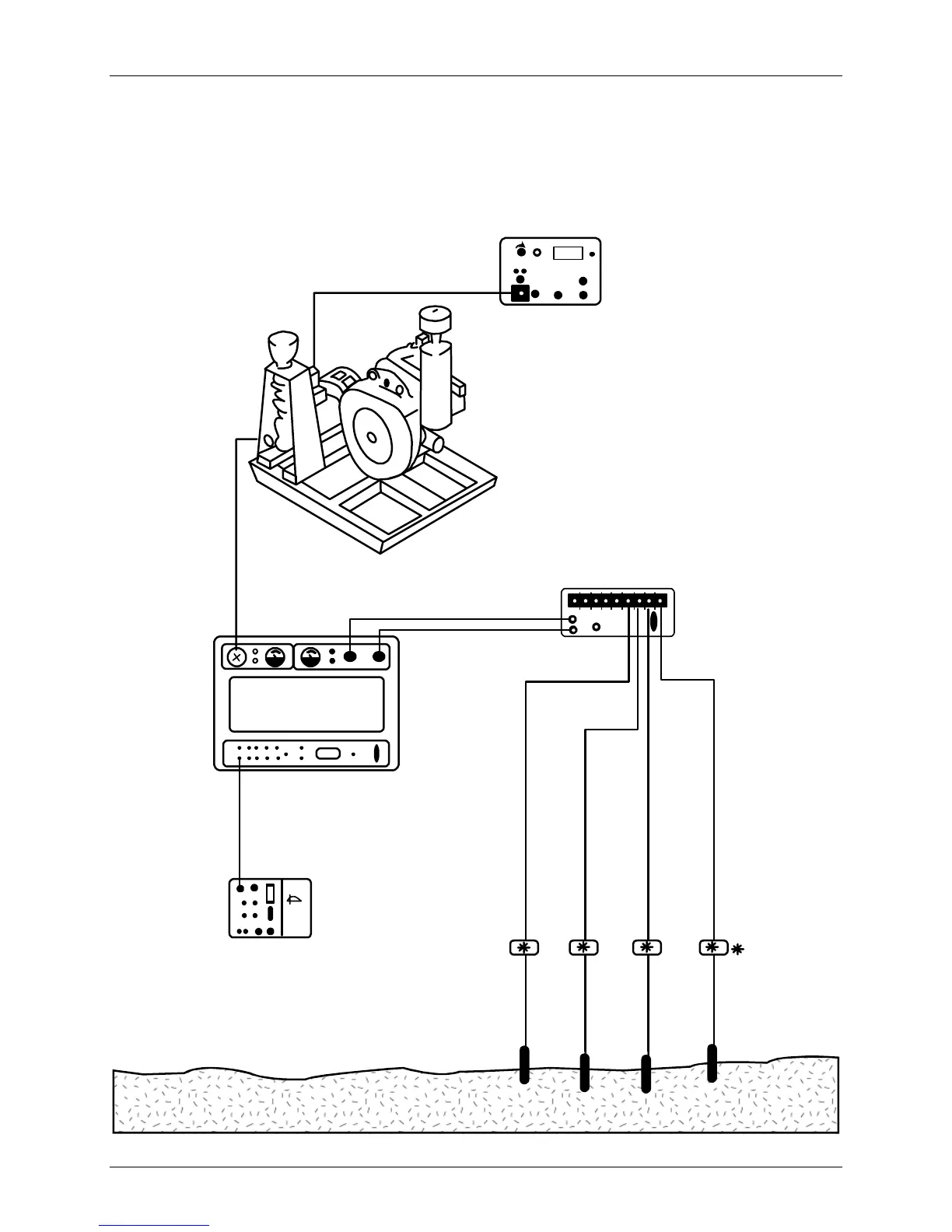

Tx Setup for Time Domain IP, Resistivity/Phase, and non-Reference CR
