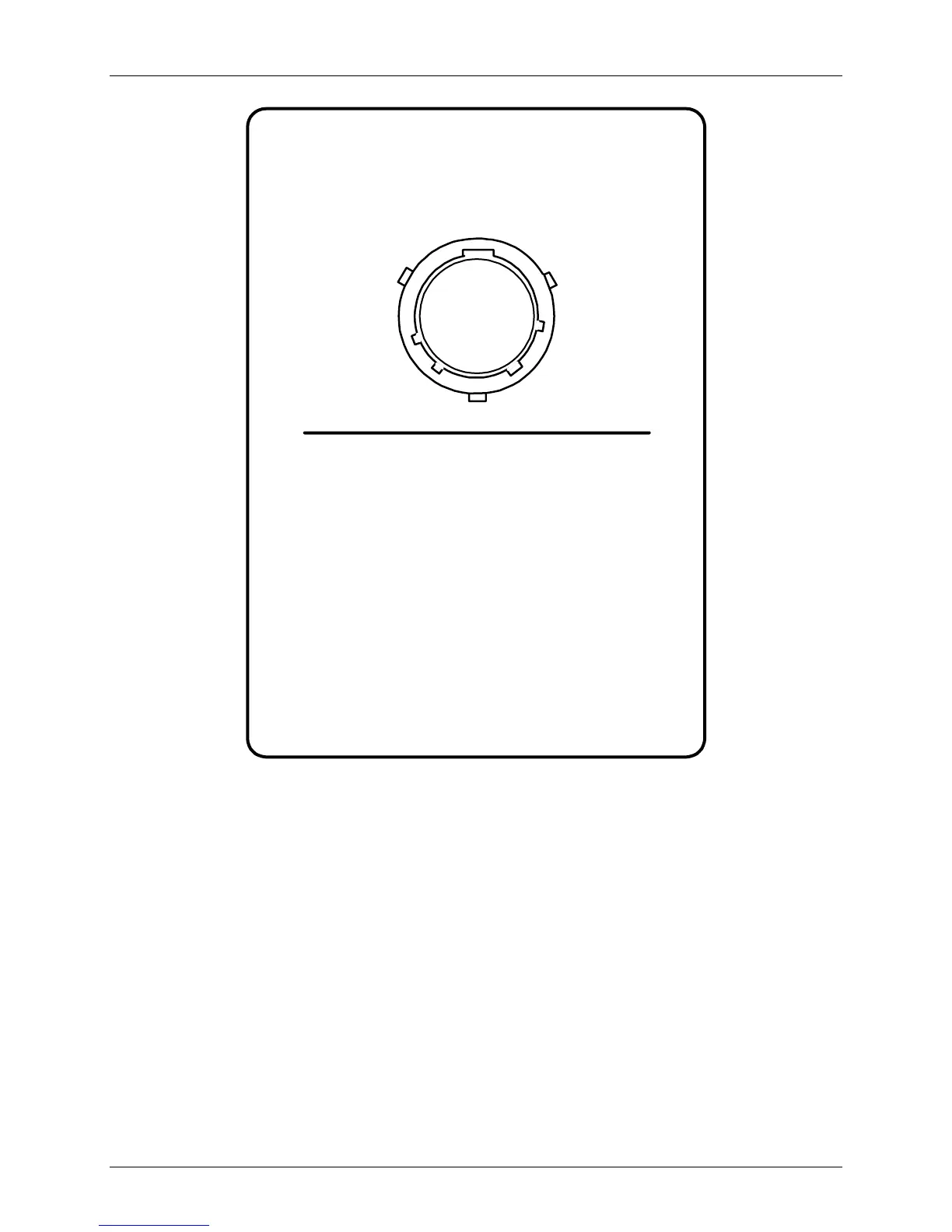

Figure 17.9 Serial Connector
Serial Connector
panel moount connector MS3II2E-I0P
pin view, male view
cable connector MS3II6B12-I0S
(solder view, female pins)
PIN FUNCTION
A (NOT USED)
B (NOT USED)
C TRANSMITTED DATA
D CLEAR TO SEND
E RECEIVE DATA
F REQUEST TO SEND
G DATA SET READY
H (NOT USED)
J GROUND
K (NOT USED)
H A B
G K J C
F E D
