COMPLEX RESISTIVITY & HACSAMT PROGRAM
Section 10, Page 23 January 2003

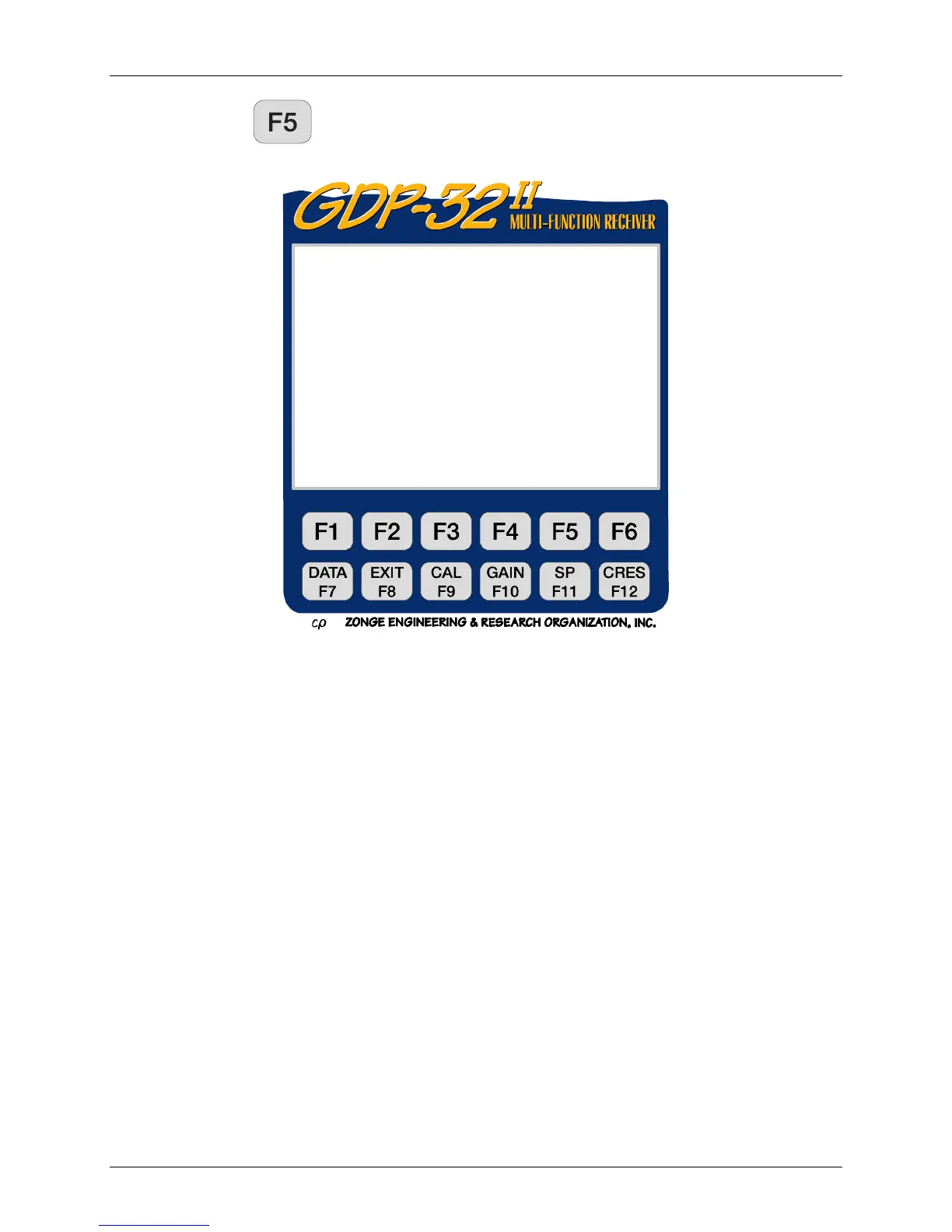

L/A. By pressing the following menu appears:
Here the length and cross-sectional area of the rock sample are input to the system for calculation
of the resistivity of the sample. The shunt is the value of the current measuring resistor (typically
a decade resistance box) that is set equal to the resistance of the rock sample.
Use the CRes function key to get an approximate value for the rock resistance for setting the
shunt resistor.
0094 CR 0535 12.3 15 Mar 98 08:57:59
Survey LAB
Tx 1 Rx 3 N OUT
1 Hz / 1 Cycle Tx Curr 1.0
µ
µµ
µ
Length: 1.0 cm
Area: 1.0 cm squared
Shunt 100.0 KΩ
Enter Rock Dimensions and Shunt Value
CONTINUE to save changes: Escape to exit
To Next Page
