MENU 3B

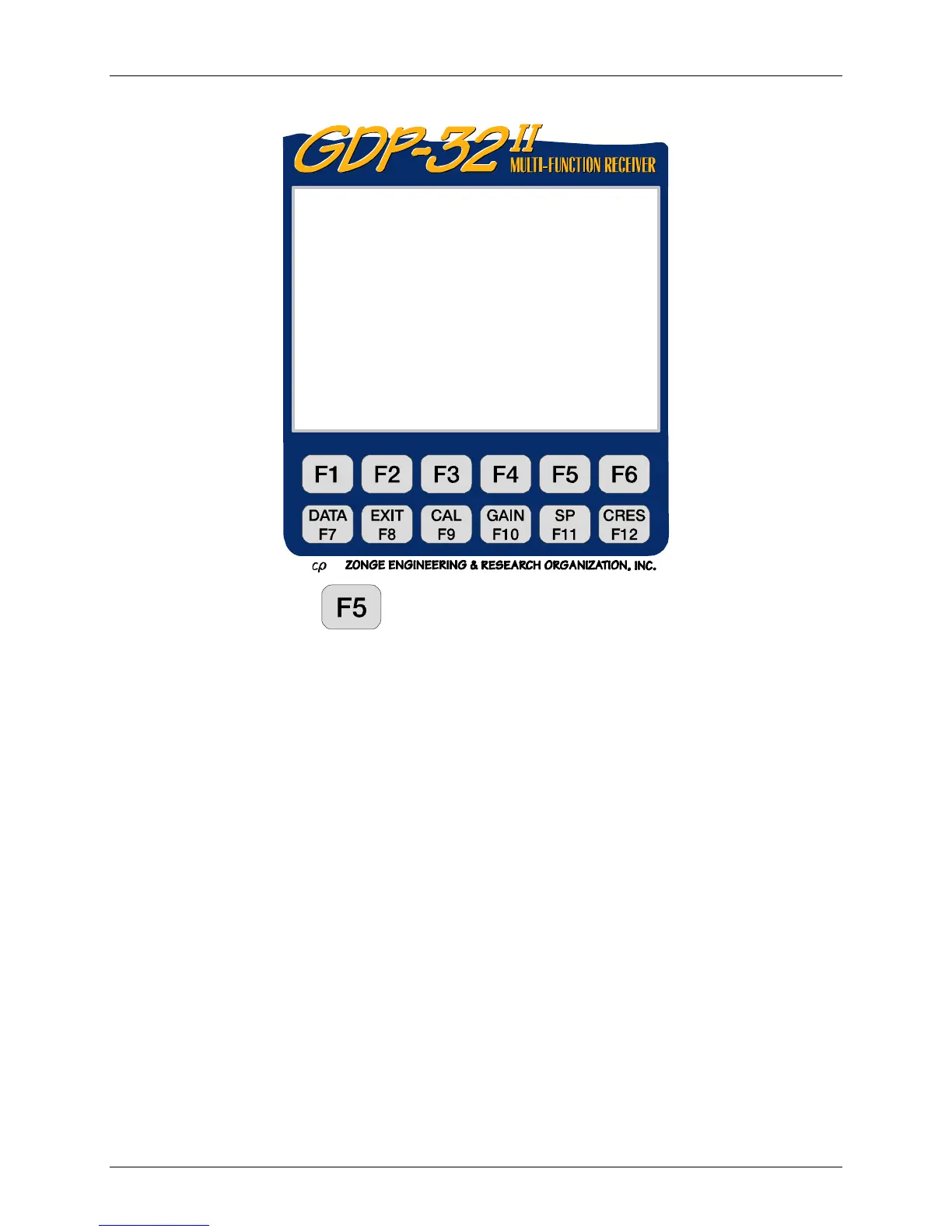

Ch Info. B y p r e s s i n g
, you can access data on the analog cards that are installed.
For example:
1 DiffAmp Notch+60,3-5,9 S/N 67 Passed
2 DiffAmp Notch+60,3-5,9 S/N 127 Passed
3 DiffAmp Notch+60,3-5,9 S/N 256 Passed
Etc.
Here DiffAmp indicates the input plug-in card is a differential amplifier, the powerline
notch filter is a 60/180/300/540 Hz filter, (the "+" indicates a modification level), the three
board serial numbers are 67, 127, and 256.
Note that a number (00 97) is visible before the program designator (CSAMT 0537). This
number is the label of the last data block written to the data cache. The next time a block of
data is written to the cache, it will be numbered 0098.
0097 CSAMT 0537 15 Mar 98 08:53:47
OPER JOHN DOE TX ID Z-30 A-SP 100
JOB 94007 LINE AJO ROAD N SPREAD 1
Ch External Amp Ch External Amp
1 Ex 1 9 OFF
2 Hy 1 10 OFF
3 Ey 1 11 OFF
4 Hx 1 12 OFF
5 Hz 1 13 OFF
6 OFF 14 OFF
7 OFF 15 OFF
8 OFF 16 OFF
CONTINUE to save changes; ESCAPE to exit
