CONTROLLED-SOURCE AUDIO FREQUENCY MAGNETOTELLURICS
Section 11, Page 15 May 2002

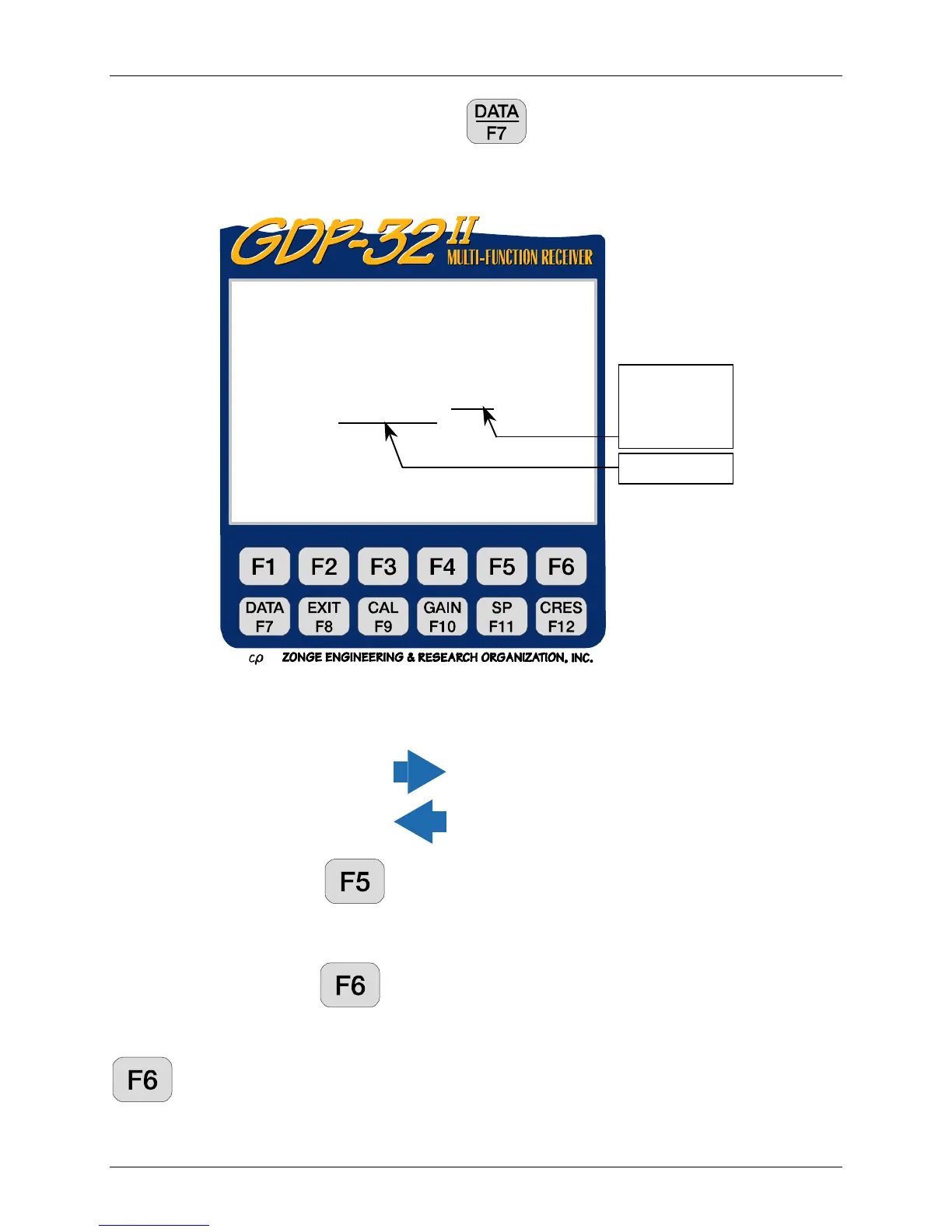

If you want to view the stored data, press the key. It will display the last stack taken.
See Section 7.2, Viewing Data for an explanation of the data mode. The data display is in the
following format:
The SEM, SP contact resistance, external preamplifier gain, and A-spacing values have been
saved, but are off of the screen to the right.
To view these numbers press several times to move to the right,
or press to move to the left.
Plot Data. By pressing
you get into the plot routines. See Section 14, Plotting
Routines for more information. Log-log resistivity versus frequency plots as well as magnitude
or phase difference versus frequency plots are enabled for this version of CSAMT.
Skip Flag. By pressing an 'x' is placed between the version number and the date in
the header for the block being viewed. This flag is recognized by the plot routines and the
flagged data will be skipped when averaging multiple blocks for plotting. Repeated pressing of
will remove and replace the 'x'.
Block: 0098 Total:0098
CSAM0537 98-03-15 09:13:17 12.3v AMT
Tx 1 Rx 3 N OUT
1Hz 4CycTxCurr1.00
1Ex 3 675.4u-256.7 75.7005O
2Hy 142124.8u-1789.61532.9005O
3Ey 3 702.2u-179.4 82.2005O
4Hx 141223.9u-1838.91659.5
005O
5Hz 50154.4u-1849.6
0005O
Select Exit Plot Skip
Block DM Data Flag
Ex/Hy Rho
Ex Hy Phase
Ey/Hx Rho
Ey Hx Phase
Mag, Phase
To Next Page
