NATURAL SOURCE MAGNETOTELLURICS
Section 13, Page 7 May 2002
MENU 3:
The following example is for a single station tensor setup with remote reference.
The
function key is active.
CH. Any channel designator other than OFF will turn the channel ON.
Ex, Ey - Electric field designators
Hx, Hy, Hz - Magnetic field designators
Sta/Ant. Dual usage field:
1) E-field designator: Identifies the station number for multiple E-field measurements.
2) H-field designator: Identifies the magnetic field antenna used for that channel. The
number in this field must have an exact matching number in the antenna calibrate
cache.
Sta/Ant
NNNC NNN is the antenna designator or serial number.
C is the antenna type or filter designator.
104 Designates an MT antenna, serial number 10.
50 Designates an ANT/1 antenna (0), serial number 5.
189 Single channel TEM/3 (9), serial number 18.
366 MT/AMT antenna, serial number 36.
Notice that the H-field antenna designator is offset by one space to the right when compared
to the E-field designators. This has been done to easily differentiate between the two types
of numbers. The STA field is used with the E-field designators to indicate the station
number for multiple E-field measurements. See Menu 4 and the section on
RESTRICTIONS for more information.

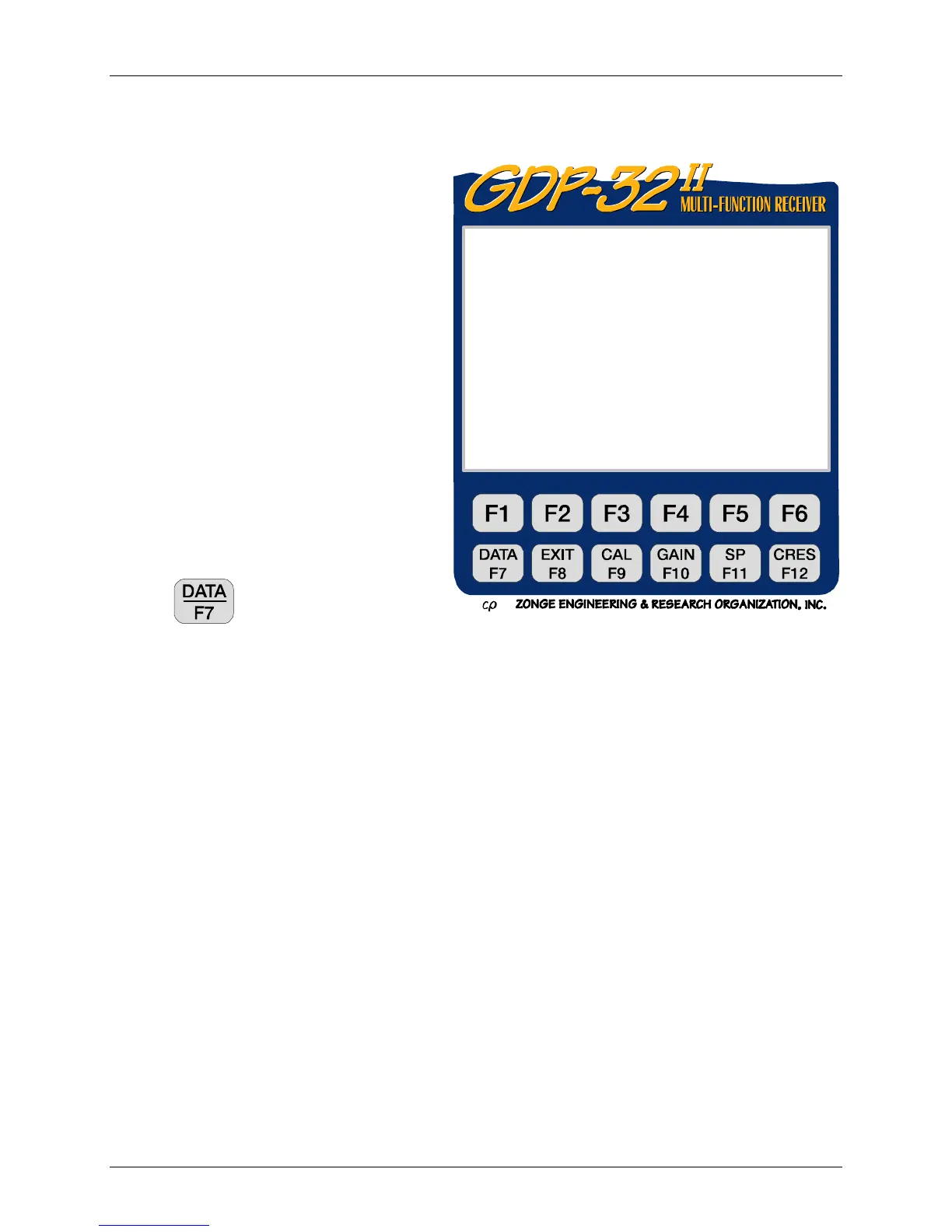

0097 AMT 0538 15 Mar 98 08:53:47
OPER JOHN DOE TX ID Z-30 A-SP 100
JOB 94007 LINE AJO ROAD N SPREAD 1
CH Sta/Ant
1 Ex 1 9 OFF
2 Hy 14 10 OFF
3 Ey 1 11 OFF
4 Hx 24 12 OFF
5 Hz 34 13 OFF
6 Hx 104 14 OFF
7 Hy 114 15 OFF
8 OFF 16 OFF
Enter channel parameters
VarAsp Ref ExtAmp Ch Info
To Next Page
