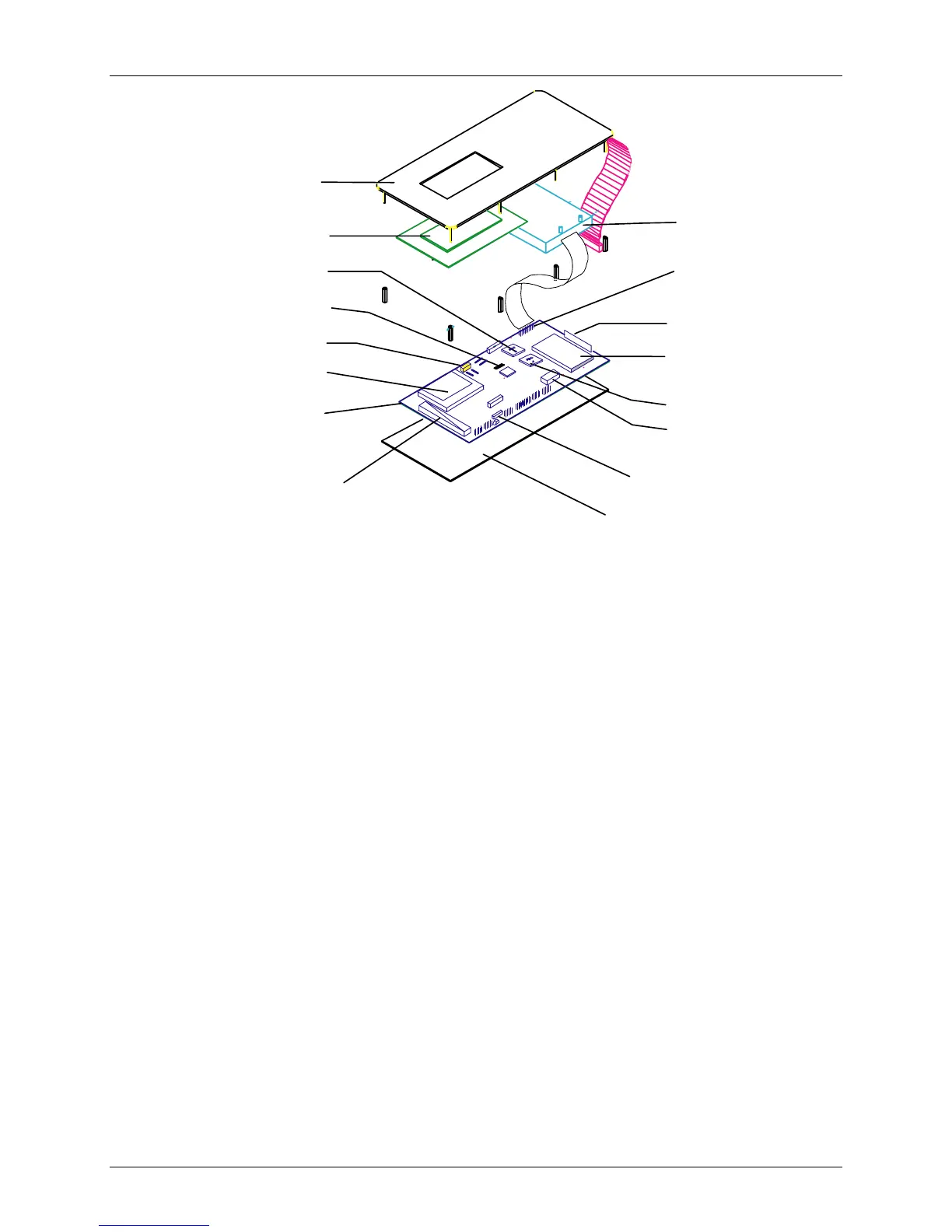

Figure 16.2(a) - Explosion of Front Panel Assembly
Hard drive
Keyboard connector
Display connector
QL8X12 ASIC
Zonge bus connector
Shield
BD287
Power Monitor (circuit 2543)
SRAM bat (LT7P)
Relay
LCD Display (LM5H40TA)
Key Pad
Card PC
Mother Board
PIC17C756 MPU
Flash Disk
Hard Drive Connector
