ABB PGC2000 - GCC Chassis; Components on Right Side Door

2000-OSM, F1 9-4
GCC Chassis (see Figure 9-5)
Description
Part Number
FID Amplifier (per application) 81943A040-_
Fuse for FID Amplifier (1 amp) 3615087-03
Filament TCD Amplifier 81943A041-1
Fuse for TCD Amplifier (0.375 amp) 3615086-04
Thermistor TCD Amplifier PCB 802A023B-1
Thermistor Amplifier Interface PCB 802A024B-1
RFI Filter (115 VAC) 3617199-1
RFI Filter (220 VAC) 3617189-1
Power Supply PCB 802A016B-1
Solenoid Driver PCB 802A001B-1
Relay/Solenoid Driver PCB 826A003B-1
Hydrogen Pressure Switch 3620003-2508
Pressure Sensor 3615565-_
FPD Amplifier* 3525647-1
*see "FLAME PHOTOMETRIC DETECTOR" for alternate location
RFI Filter
Power Supply PCB
FID Amplifier
and/or
TCD Amplifier
or
FPD Amplifier
Solenoid Driver PCB
Pressure
Sensors
Hydrogen
Pressure
Switch

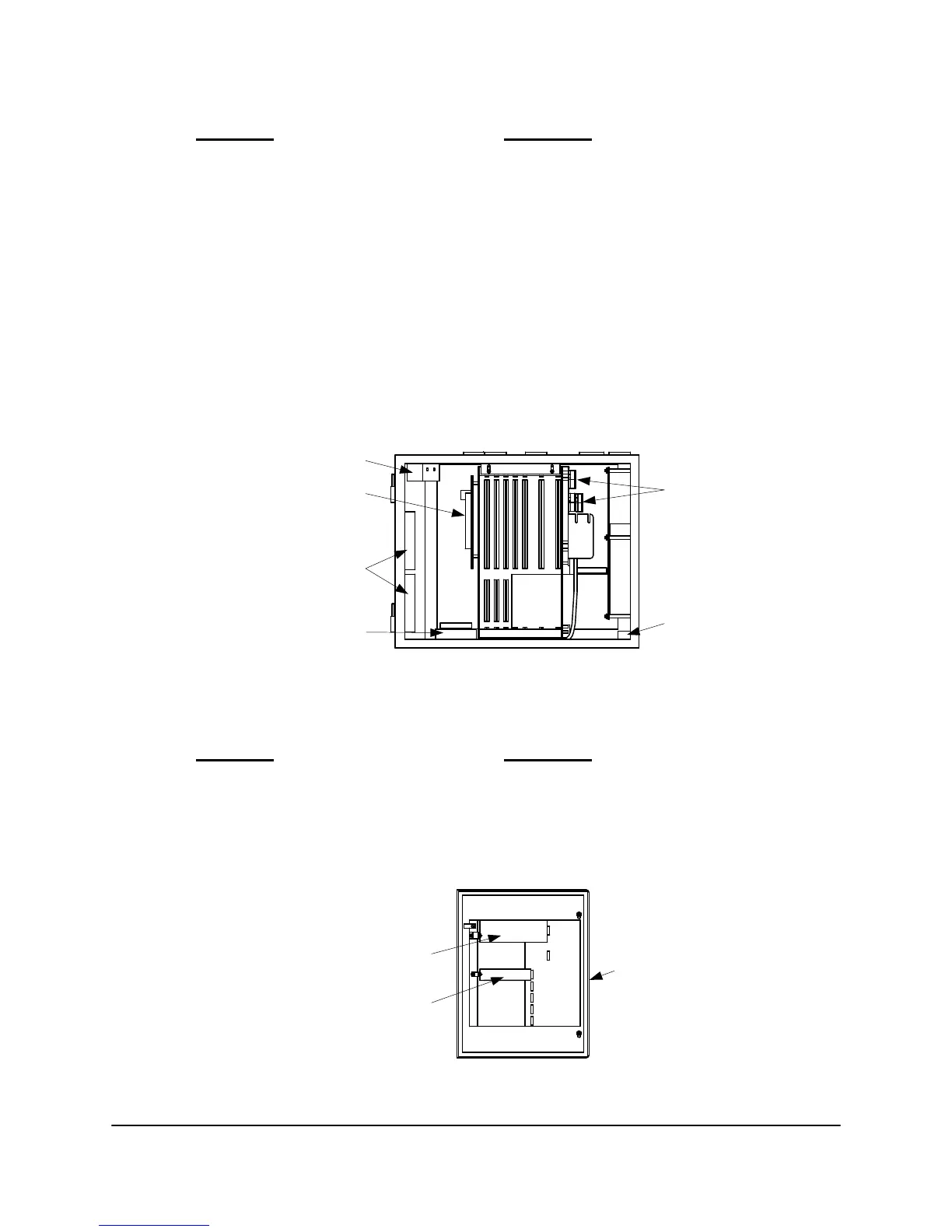

Figure 9-5. CHASSIS COMPONENTS
Components on Right Side Door (see Figure 9-6)
Description
Part Number
Panel Assembly Kit 800K010-_
DTC Zone PCB 802A007B-2
0.25 A 3AG fast acting Fuse 3615087-01
25 amp Fuse, semiconductor type 3616470-25
AC Conditioning PCB 802A009B-2
AC Conditioning PCB
(has both fuses)
DTC Zone
PCB
Panel
Assembly
Figure 9-6. RIGHT SIDE DOOR OF GCC
