PURGE AIR PANEL (SEE FIGURE 9-7)
Description
Part Number
Heater Air Pressure Switch 3617302-1037
1/4-inch Tubing 3617355-2
1/8-inch Tubing 3617355-1
Solenoid Valve Kit (vented) 800K005-1
Solenoid Valve Kit (non-vented) 800K005-2
See SOLENOID VALVES in Section 4 for information
on the differences between types of solenoid valves
Solenoid Valve Gasket 3617331-1
Pressure Relieving Regulator, 0-40 psig 3616975-2
Pressure Gauge, 0-110 psi 44726-4
Regulator Gasket 81943D033-1
Gauge Gasket 81943D033-2

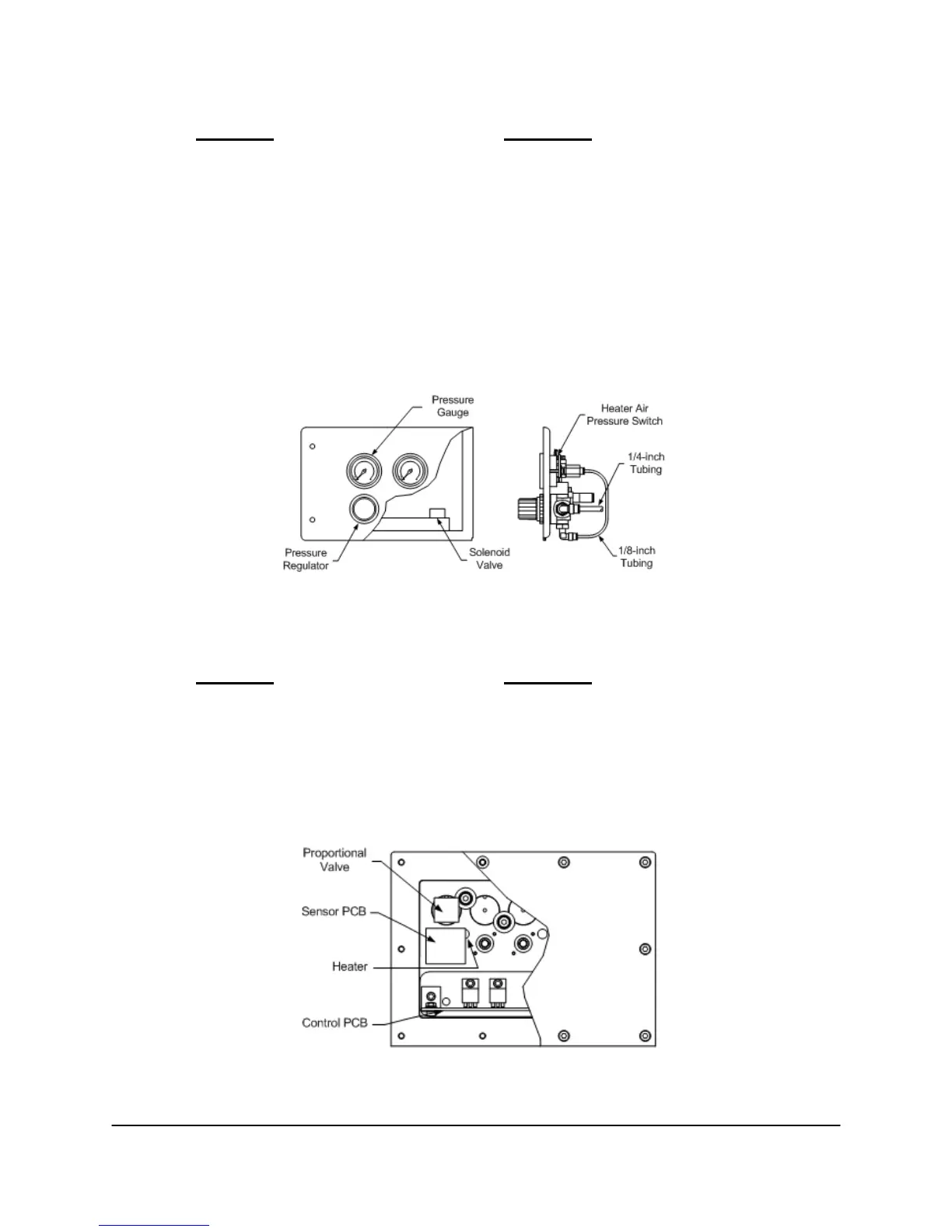

Figure 9-7. PURGE AIR PANEL
ELECTRONIC PRESSURE CONTROL PANEL (SEE FIGURE 9-8)
Description
Part Number
Proportional Valve 3617341-1
O-Ring Kit 801K001-1
Control PCB 802A011B-1
Sensor PCB Kit 802A012B-2
Heater 81943A042-1
Metric Allen Wrenches TL161-1
EPC Service Tool Kit 801K005-1
Figure 9-8. ELECTRONIC PRESSURE CONTROL PANEL
