ABB PGC2000 User Manual

2-14 2000-OSM, F1
Checking Selector Flow Adjust
1. See Figure 2-9. Set Valve One to ON and Valve Two to OFF.
COLUMN
PRESSURE
ADJ
AIR OUT AIR IN
AIR IN
AIR OUT
ANALYTICAL
FLOW ADJ
BACKFLUSH
VENT
SAMPLE
IN
SAMPLE
VENT
COLUMN
2
SAMPLE LOOP
COLUMN 1
SELECTOR
FLOW ADJ
SELECTOR
VENT
CELL
VENT
DETECTOR
CARRIER
IN
COLUMN
3
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
VALVE "ON" VALVE "OFF"
PI

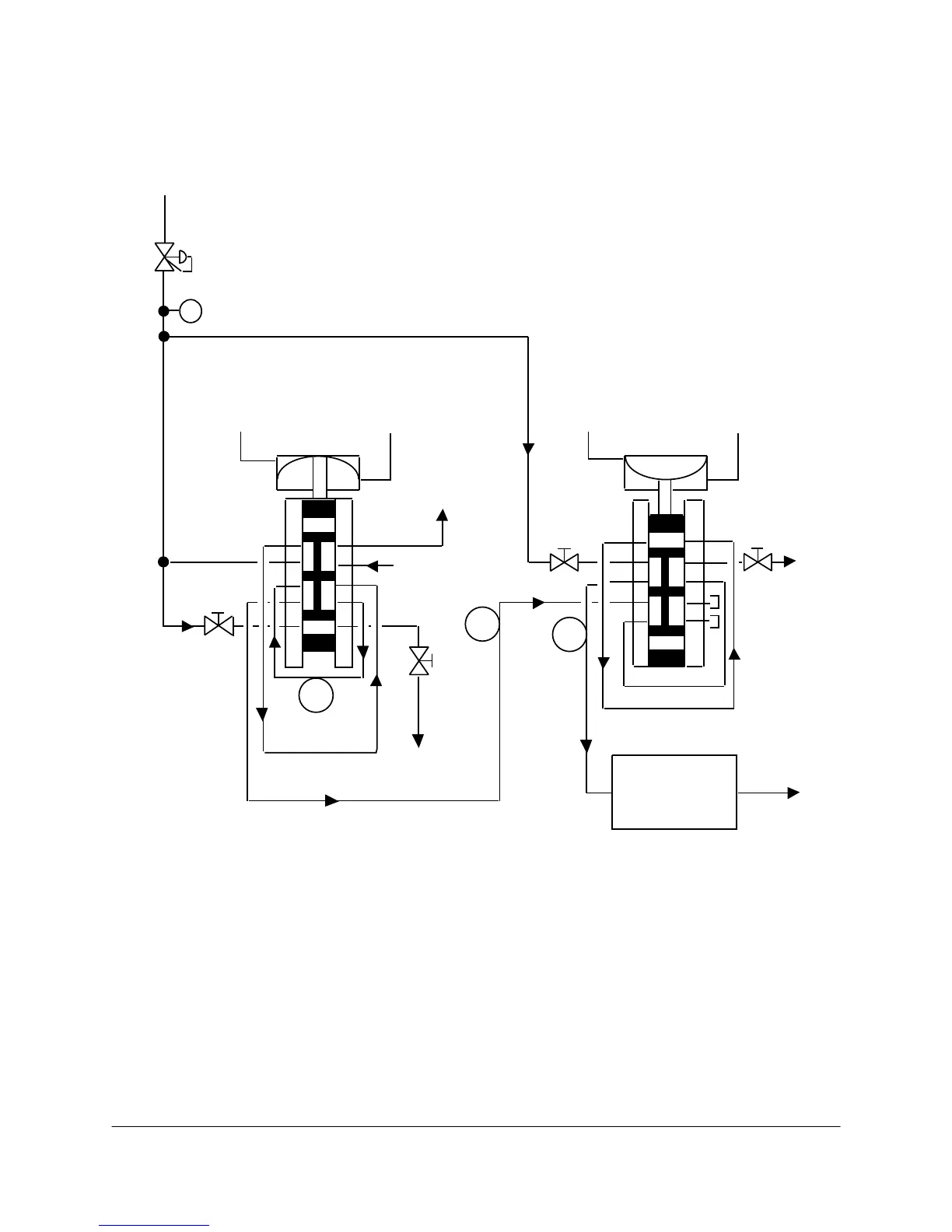

Figure 2-9. MATCHING FLOW THROUGH SELECTOR FLOW ADJUST VALVE
2. To compensate for the pressure drop through Columns 1 and 2, adjust the SELECTOR FLOW
ADJUST needle valve until the flow rate at the cell vent is the same as the total column flow.
Checking Selector Vent
1. See Figure 2-9. Connect the flow-measuring device to the Selector Vent and verify that Valve
One is ON and Valve Two is OFF.
2. To compensate for the pressure drop through Column 3, adjust the Selector Vent restrictor until
the flow rate at the Selector Vent is the same as the total column flow.
