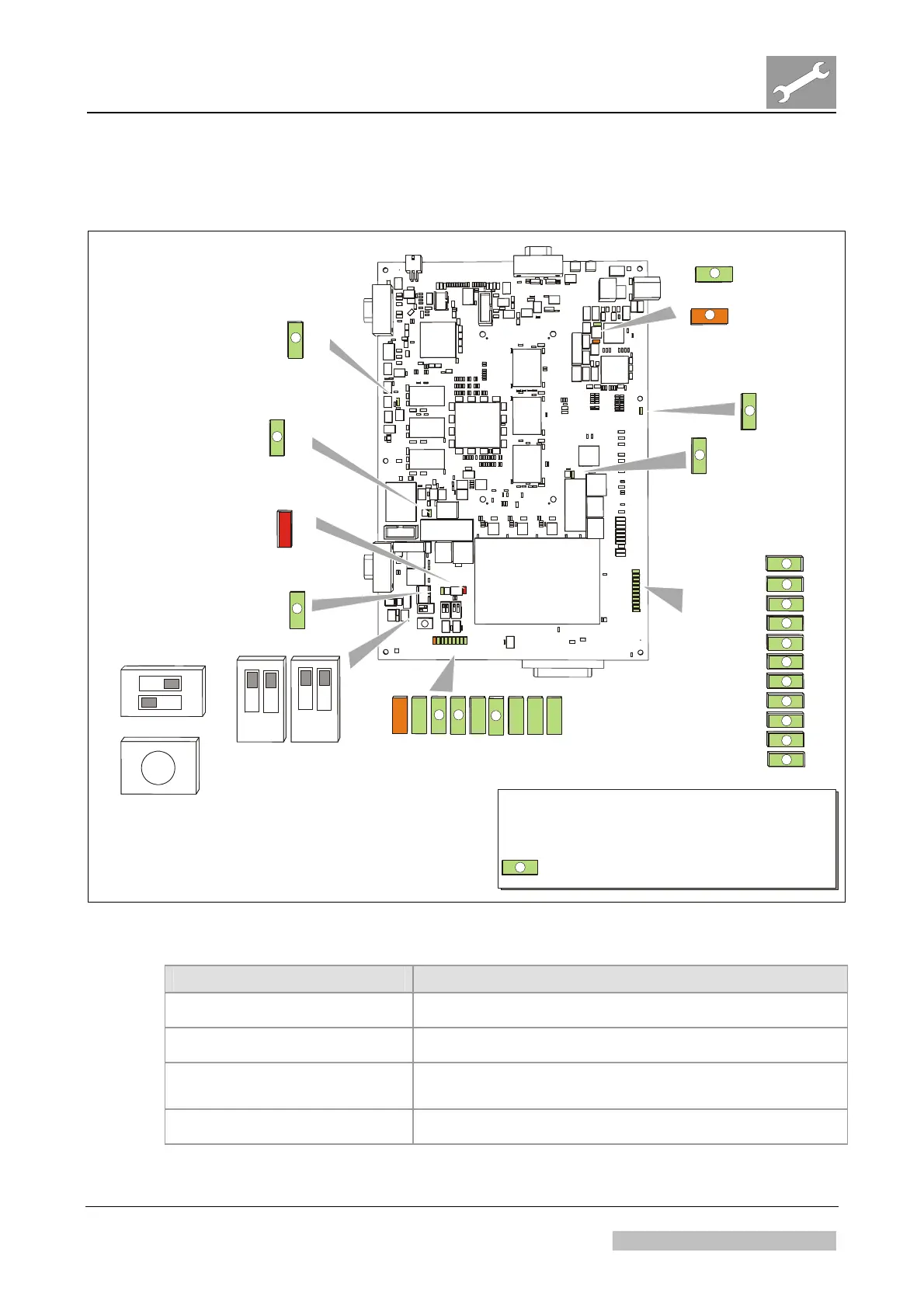

1 LEDS and Switches on the PMI / PMI2 Board
+ 1,5V
/CS0 /CS1 /CS2 /CS3 /FPGA
_
TEST4
/FPGA
_
TEST3
/M23
_
RESERVE1
/M32
_
RESERVE2
/RESET
FPGA_OK
FWI_green
+12V_OPT
-12V_OPT
+12V_CAL
-12V_OPT
+20V_PMT
-10V_PMT
+8V_ANALOG
+12V_CAN
+8V_DISP
+5V_PMT
+24V_POL
+24V_POL
+3,3V
5175_chapter3.4_001.cdr
ON
ON
ON
S1
S2
S3
S4
/
CS0
+12V_OPT
/CS1 /CS2 /CS3 /FPGA_TEST4 /FPGA_TEST3 /M23_RESERVE1 /M32_RESERVE2 /RESET
LD2/WATCHDOG
+5V
+ 1,5V
FPGA_OK
-12V_OPT
+12V_CAL
-12V_OPT
+20V_PMT
-10V_PMT
+8V_ANAL OG
+12V_CAN
+8V_DISP
+5V_PMT
+24V_POL
+24V_POL
+3,3V
ON
ON
S1
1
S3
S4
LD2/WATCHDOG
+ 5V
ON
S2
FWI_orange
*
**
**
**
LED only on PMI2
*** FWI_Orange only ON if FW cable connected
* LED not on PMI2
LED ON if digitizer idle
2
Figure 1
LED Meaning
FPGA_OK Green LED, default ON. Program properly loaded.
+1,5 V Green LED, default ON. Voltage +1,5 V okay.
LD2 Watchdog Red LED, default OFF. ON during reboot only (approx.
30 sec.) or if board operating system hangs
+ 5 V Green LED, default ON. Voltage +5 V okay.
