AGFA CR 30-X - Replacing the Top Cover

DD+DIS150.06E
Repair and Service
Replacements / Repair Procedures
DOCUMENT CONTROL NOTE:
The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.
Edition 1, Revision 2 CR 30-X Chapter 3.5 / 11
03-2009 Type 5175 / 100/110 Agfa Company Confidential
Verification:
(1) Switch on the digitizer.
(2) Wait till the green light at the user interface lights up
(takes approx. 1,5 min.).
Result:
The right cover is replaced.

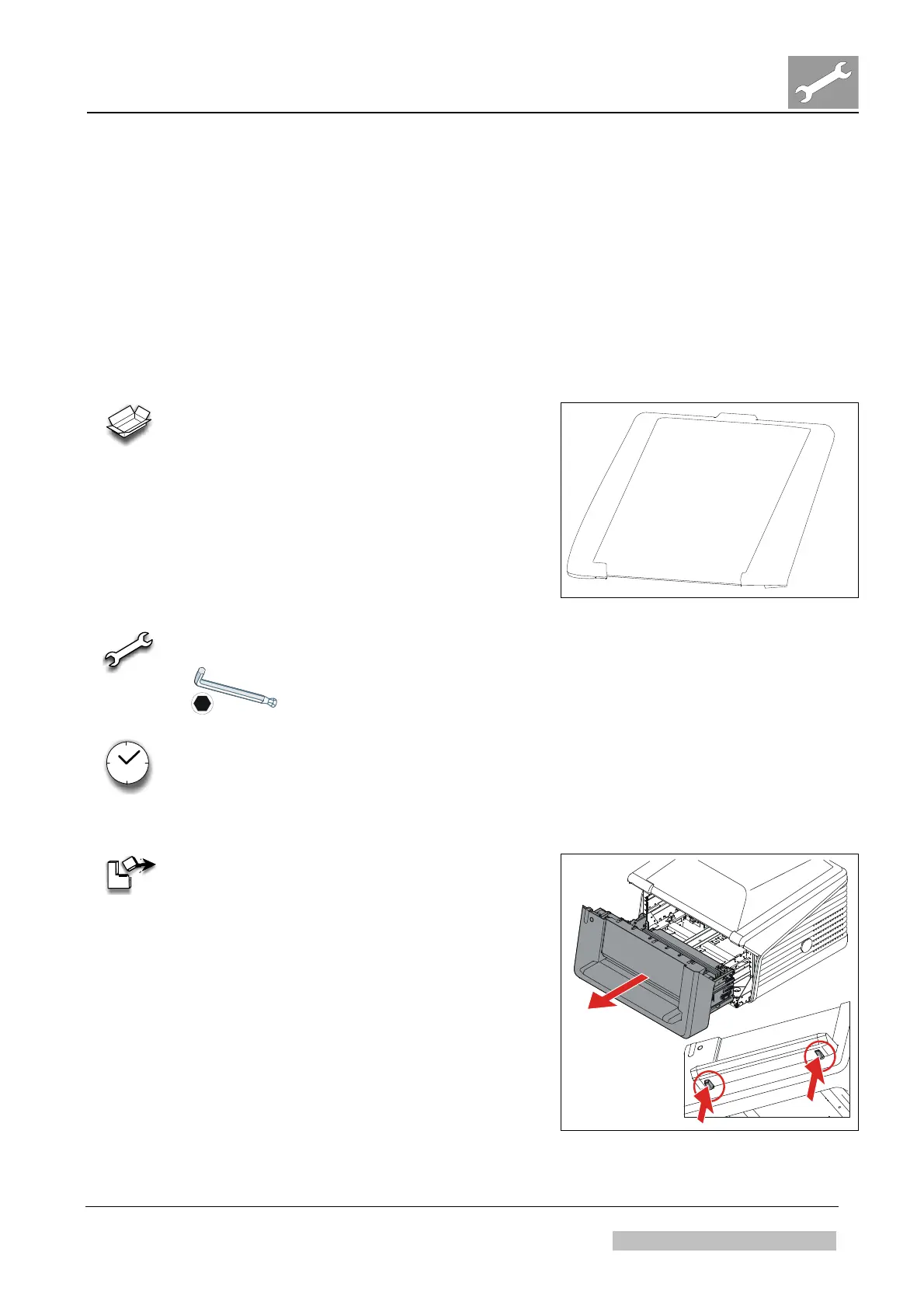

1.4 Replacing the Top Cover
REQUIRED SPARE PART*:
Type 5175/100: CM+9 5175 9200 0
Type 5175/110: CM+9 5175 1540 0
* The last digit in the spare part number indicates the spare
part revision at release of this document. When ordering,
the actual revision of the spare part is delivered.
Figure 16
REQUIRED TOOLS:
3 mm,
with ball-shaped head
REQUIRED TIME:
5 min.
DISASSEMBLY:
(1) Switch off the digitizer.
(2) Disconnect the mains cable.
(3) Simultaneously press the two buttons (A)
positioned underneath the feed table.
(4) Pull out cassette unit (B).
A
A
B
Figure 17
