AGFA CR 30-X - Replacing the Right Cover

DD+DIS150.06E
Repair and Service
Replacements / Repair Procedures
DOCUMENT CONTROL NOTE:
The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.
Edition 1, Revision 2 CR 30-X Chapter 3.5 / 9
03-2009 Type 5175 / 100/110 Agfa Company Confidential
ASSEMBLY:
(1) Mount in reverse order.
Verification:
(1) Switch on the digitizer
(2) Wait till the green light at the user interface lights up
(takes approx. 1,5 min.).
Result:
The left cover is replaced.

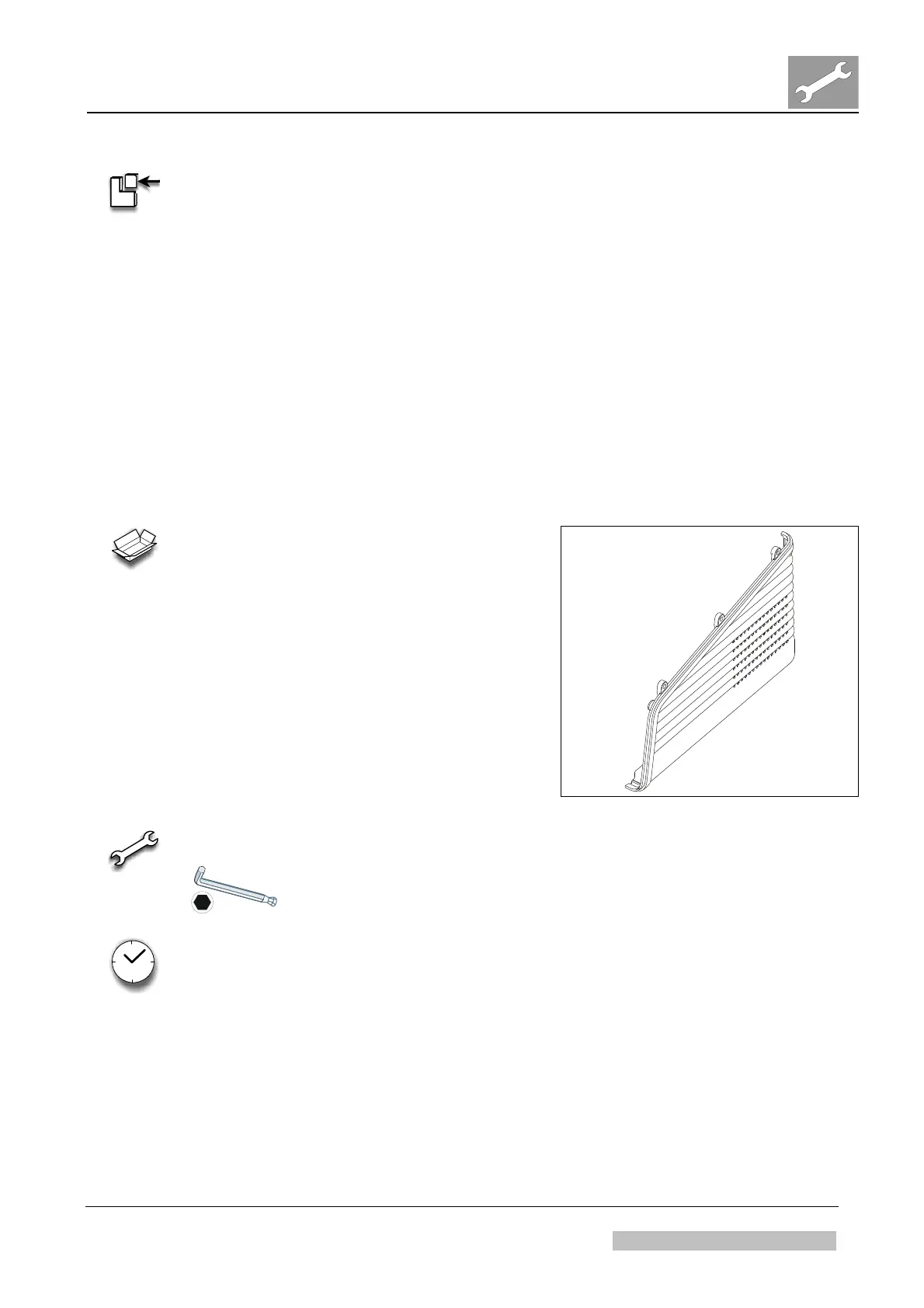

1.3 Replacing the right cover
REQUIRED SPARE PART*:
CM+9 5175 1504 1
* The last digit in the spare part number indicates the spare
part revision at release of this document. When ordering,
the actual revision of the spare part is delivered.
Figure 12
REQUIRED TOOLS:
3 mm,
with ball-shaped head
REQUIRED TIME:
10 min.
